Large Span Pre Engineered Steel Buildings with Crane Support

Large Span Pre Engineered Steel Buildings with Crane Support
Large Span Pre Engineered Steel Buildings with Crane Support
Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support Large Span Pre Engineered Steel Buildings with Crane Support

Large Image :  Large Span Pre Engineered Steel Buildings with Crane Support

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0063
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month
Contact Now

Large Span Pre Engineered Steel Buildings with Crane Support

Description
Features: Steel Plant Buildings Application: Large Span Pre Engineered Metal Buildings Structure, Steel Plant Buildings, Steel Factory Building
Type: Steel Structure Construction Raw Steel Material: Q235B, Q355B, ASTM A36,
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Service: Design,Fabrication, Installation
Highlight:

prefab metal buildings

,

steel frame construction

Large Span Pre Engineered Metal Buildings for Steel Structure Construction
Product Overview

Our prefabricated large span steel workshop structures are engineered for industrial applications including electric appliance workshops with provisions for electric single girder cranes. We provide complete turnkey solutions encompassing design, fabrication, and installation.

Key Specifications
Application Large Span Pre Engineered Metal Buildings Structure, Steel Plant Buildings, Steel factory building
Type Steel Structure Construction
Raw Steel Material Q235B, Q355B, ASTM A36
Surface Treatment Painting or Hot-dip Galvanize
Service Life 50 Years
Wall and Roof Glass wool sandwich panel
Service Design, Fabrication, Installation

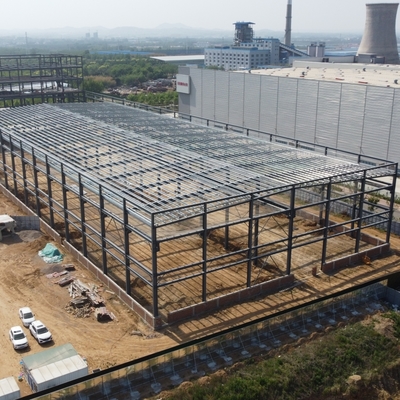

Project Specifications
Structure Type Portal frame, single ridge, three span
Length 120m
Width 60m
Eave Height 11m
Span 25 m for each span
Steel Structure Quantity 550 Ton
Column & Beam H-section steel
Roof & Wall Panel 75mm Glass wool sandwich panel
Technical Parameters
  • Material: Carbon structural steel (Q235B, Q345B or ASTM, BSEN, DIN standards)
  • Production Lead Time: Typically 45 days after down payment (quantity dependent)
  • Quality Certification: Factory quality certificate, third-party inspection available
  • Main Frame: H Steel beam, Q235/Q345 steel H beam and columns (painted or galvanized)
  • Secondary Frame: Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
  • Surface Treatment: Two layers of rust-proof painting or Hot Dip Galvanized
  • Accessories: Semi-transparent skylight belts, ventilators, down pipes, gutters, trim
Design Capabilities

Our engineering department maintains a comprehensive steel structure design system that optimizes both structural reliability and cost efficiency. We specialize in material selection for traditional and innovative enclosure systems, delivering structurally sound and architecturally appealing solutions.

Large Span Pre Engineered Steel Buildings with Crane Support 0
Manufacturing Facilities

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with:

  • Three light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Advanced profiling equipment including plasma cutting machines
Large Span Pre Engineered Steel Buildings with Crane Support 1
Quotation Requirements
1. Location: _____country, area
2. Size: _____mm*_____mm*_____mm
3. Wind load (max. wind speed): _____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height): _____kn/m2, _____mm
5. Anti-earthquake requirements: _____level
6. Brick wall requirements: If yes, 1.2m high or 1.5m high
7. Thermal insulation requirements: EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8. Door quantity & size: _____units, _____(width)mm*_____(height)mm
9. Window quantity & size: _____units, _____(width)mm*_____(height)mm
10. Crane requirements: If yes, _____units, max. lifting weight____tons; max. lifting height _____m
