Double Floors Steel Frame Office Building with PU Sandwich Panels

Double Floors Steel Frame Office Building with PU Sandwich Panels
Double Floors Steel Frame Office Building with PU Sandwich Panels
Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels Double Floors Steel Frame Office Building with PU Sandwich Panels

Large Image :  Double Floors Steel Frame Office Building with PU Sandwich Panels

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0202
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Double Floors Steel Frame Office Building with PU Sandwich Panels

Description
Application: Double Floors Steel Frame Structure Office Buildings Construction , Metal Office Buildings Raw Steel Material: Q235B, Q355B, ASTM A36
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: PU Sandwich Panel Surface Treatment: Painting
Type: Steel Frame Structure Buildings Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

steel frame building

,

prefab metal buildings

Double Floors Steel Frame Structure Metal Office Buildings Construction
Product Attributes
Attribute Value
Application Double Floors Steel Frame Structure Office Buildings Construction, Metal Office Buildings
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof PU sandwich panel
Surface treatment Painting
Type Steel Frame Structure Buildings
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Introduction

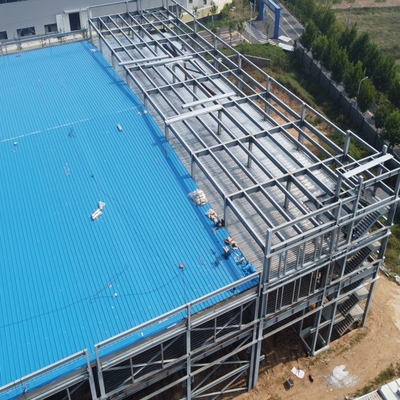

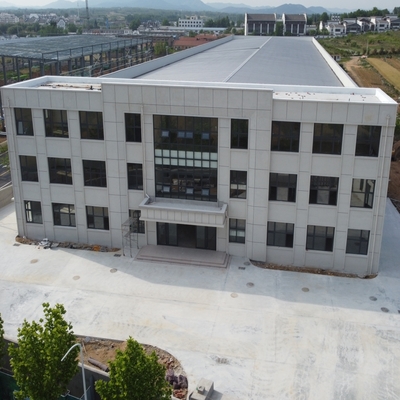

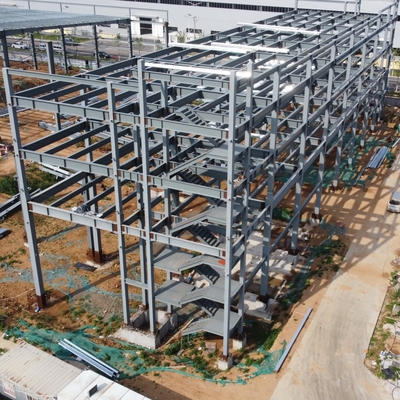

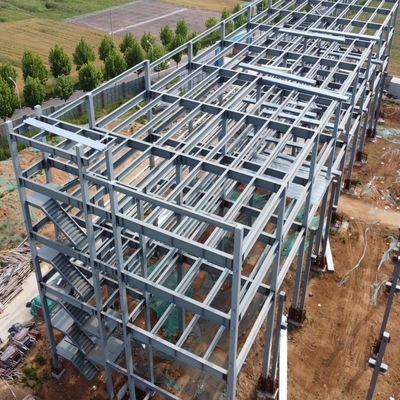

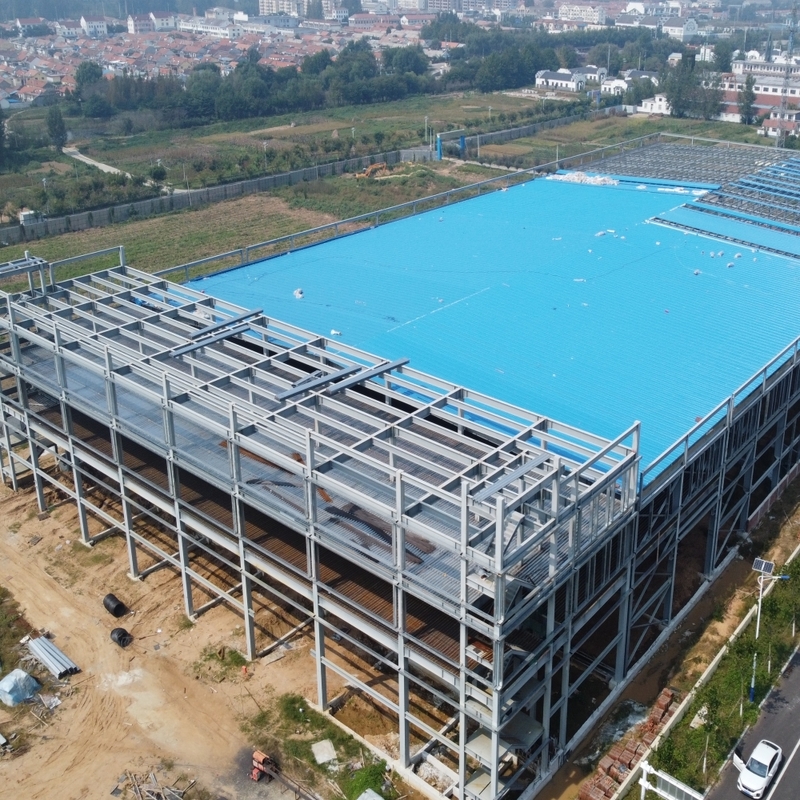

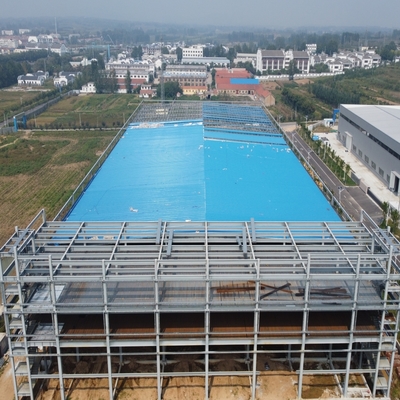

This double-floor steel frame structure office building features steel beams, columns, and components made of high-quality steel plates. The galvanized steel floor deck provides robust base support. With excellent overall rigidity, seismic performance, fast construction speed, light weight, and high load-bearing capacity, this solution is increasingly replacing traditional reinforced concrete structures.

Specification of Steel Structure Material
Items Specification
Main Steel Frame
Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame
Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature: -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Our Steel Structure Fabrication Factory

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced profiling steel sheet machines including plasma cutting equipment.

Double Floors Steel Frame Office Building with PU Sandwich Panels 0
Our Service Scope
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for prefabricated steel structure buildings
  • Development of fabrication/shop drawings based on your architectural plans
  • Professional engineering consulting services
Double Floors Steel Frame Office Building with PU Sandwich Panels 1
How to Get a Quote

Please provide the following information for an accurate quotation:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used (lower cost)
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
Double Floors Steel Frame Office Building with PU Sandwich Panels 2
