Pre Engineered Steel Structure Warehouse Building Q235B Q355B

Pre Engineered Steel Structure Warehouse Building Q235B Q355B
Pre Engineered Steel Structure Warehouse Building Q235B Q355B
Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B Pre Engineered Steel Structure Warehouse Building Q235B Q355B

Large Image :  Pre Engineered Steel Structure Warehouse Building Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0086
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Pre Engineered Steel Structure Warehouse Building Q235B Q355B

Description
Features: Steel Structure Warehouse Application: Steel Structure Warehouse Building Design
Type: Steel Factory Buildings Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

steel structure building

,

metal storage buildings

,

SGS Pre Engineered Steel Structure Warehouse

Pre Engineered Steel Structure Warehouse Building Design Steel Factory Buildings
Product Attributes
Attribute Value
Application Steel Structure Warehouse Building Design
Type Steel Factory Buildings
Features Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Product Description
This Pre Engineered Steel Structure Warehouse Building Design Steel Factory Buildings is an integrated modern factory solution for household electric appliance production. The facility includes production buildings, storage areas, office buildings, and dining rooms.

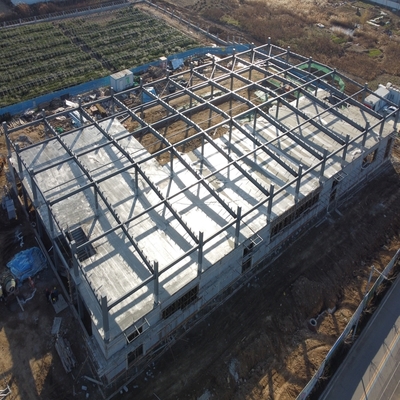

Pre engineered steel structure factory buildings feature main load-bearing members made of steel, including steel columns, beams, foundations, roof trusses, and roof structures. Wall systems can be maintained with steel panels or brick walls.
Specification of Steel Structure
Item name Specification Material Parameter Technical Treatment
Column H shape steel, Latticed steel column Q235B,Q345B Paint or Hot dip galvanized
Beam H shape, steel Truss, Hot rolled sheet Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass, Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel, stainless steel, PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe, Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B
Our Steel Structure Fabrication Factory
Pre Engineered Steel Structure Warehouse Building Q235B Q355B 0
Packing and Transport
All structural components, panels, bolts, and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers.
Our skilled workers use cranes and forklifts at our factory loading site to carefully load products, ensuring protection against damage during transit.
Pre Engineered Steel Structure Warehouse Building Q235B Q355B 1
How to Quote
Please provide the following information for an accurate quote:
Question Details Required
1. Location Country, area where building will be constructed
2. Size Length × width × height (mm)
3. Wind load Maximum wind speed (kn/m², km/h, or m/s)
4. Snow load Maximum snow height (kn/m² or mm)
5. Anti-earthquake Required earthquake resistance level
6. Brick wall Required height if needed (1.2m or 1.5m)
7. Thermal insulation Material preference: EPS, fiberglass wool, rockwool, PU sandwich panels, or metal steel sheets
8. Door specifications Quantity and dimensions (width × height in mm)
9. Window specifications Quantity and dimensions (width × height in mm)
10. Crane requirements Quantity, maximum lifting weight (tons), and lifting height (m) if needed
