Steel Structure Warehouse Building Construction Large Span Easy Assemble

Steel Structure Warehouse Building Construction Large Span Easy Assemble
Steel Structure Warehouse Building Construction Large Span Easy Assemble Steel Structure Warehouse Building Construction Large Span Easy Assemble Steel Structure Warehouse Building Construction Large Span Easy Assemble Steel Structure Warehouse Building Construction Large Span Easy Assemble

Large Image :  Steel Structure Warehouse Building Construction Large Span Easy Assemble

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV
Model Number: Ruly0001
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Steel Structure Warehouse Building Construction Large Span Easy Assemble

Description
Features: Prefab Steel Buildings Application: Steel Structure Warehouse Building Construction
Type: Large Span Easy Assemble Steel Warehouse Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
High Light:

steel structure building

,

metal storage buildings

,

Painting Large Span Steel Structure Warehouse



Steel Structure Warehouse Building Construction Large Span Easy Assemble



Project Description:

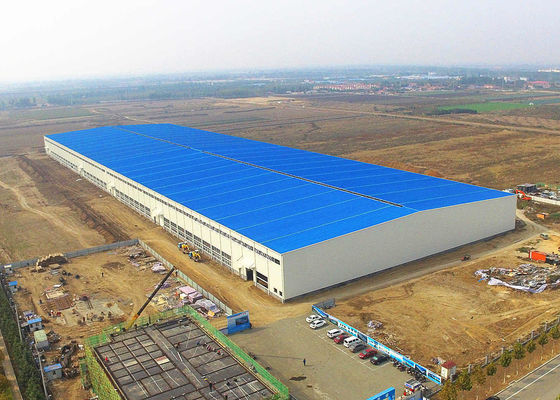

Steel Structure Warehouse Building Construction Large Span Easy Assemble. This is a heavy steel structre warehouse project that we are awarded as a General Contractor, that means our work scope include design, fabrication and construction. The construction floor area is about 39,700 square meters. As it is a heavy steel warehouse, the steel quantity for this project is about 3000Tons. We provide wleded steel beam&column, roof and wall panel, purlin, window and doors and other accessory.All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.



Product Advantage:

1. Wide span: Single span or Multi-span

2. Low cost: unit price range from USD50/m2 to USD80/m2 according to clients' request

3. Long lifespan: about 20~ 50 years
4. Fast construction and easy installation
5. Others: environmental protection, stable structure, earthquake resistance,

water proofing, and energy conservation.

Product Description:

Name Steel Structure Warehouse Building Construction Large Span Easy Assemble
Dimension Length H beam:400-1500mm
Thickness

web plate: 6-32mm

wing plate: 6-40mm

Height 200-1200mm
color according to customers
Advantage

1. low cost but beautiful out look

2. high savety performance

3. easy to assemble and dismantle

4.manufacture under under complete quality control system ISO9001

5. Installation with instruction of experiance engineers.

6. Non-pollution

Main

components

base cement and steel foundation bolts
Main frame H beam
Material Q235B, Q355B or others as customer's request
Purlin C or Z purlin,size from C120-C320,Z100-Z20
bracing X-type or other type bracing made from angle,round pipe.
bolt plain bolt and high strength bolt
Roof&wall sandwich panel and color plate
door sliding or rolling door
Window Aluminium alloy window
surface two ways of anti-rust painting or hot dip galvanized
components sheet 0.5mm or 0.6mm galvanized sheet
Accessories semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc.
Usages

1.worshop,warehouse,plants.

2. steel web frame structure

3. steel H-colum and sheet H-beam

4. Portal frame products

5. high rise building project

6. other steel structure buildings.

Packing Main sheet frame without packing load in 40'OT
Drawing according to drawings or according to customer's requirements.
Design

If you need design for you, please supply us the following phareters and other detailed size:

1) length,wideth,height,eave height,roof pitch etc.

2) wind load,snow load,raining condition,aseismatic requirments,etc.

3) demand for doors and windows.

4) other information if necessory





Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe



Our steel structure fabricaiton factory:

We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Steel Structure Warehouse Building Construction Large Span Easy Assemble 0



Installation:



Method 1: We provide shop drawing before installation.

Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.

Steel Structure Warehouse Building Construction Large Span Easy Assemble 1



Packing & Loading:



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Steel Structure Warehouse Building Construction Large Span Easy Assemble 2



Why us?



1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.

2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.

3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

4. Professional QC team will guarantee that we will provide the production and service as your request.

5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.

How to quote:



The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
