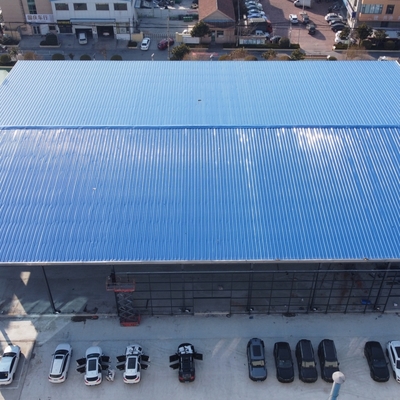

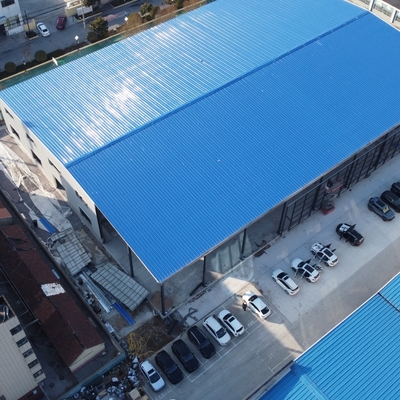

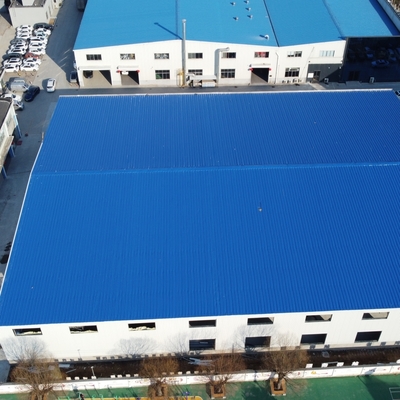

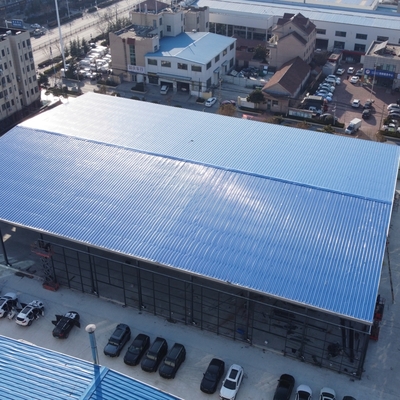

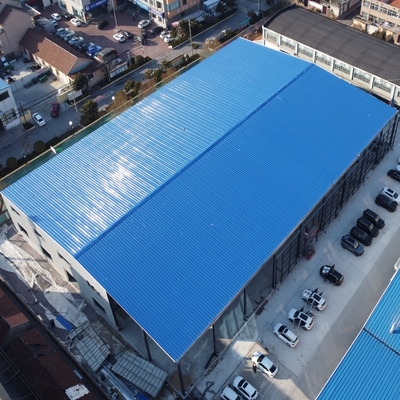

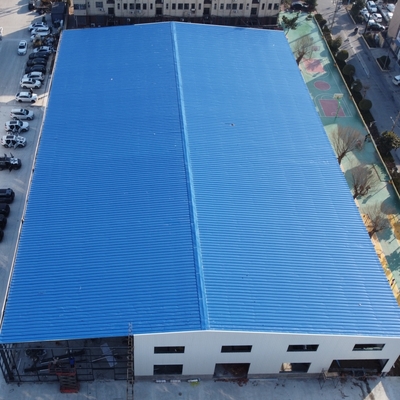

Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan

Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan
Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan
Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan

Large Image :  Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0157
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Type: Steel Frame Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Car Maintenance Shop, Auto Repair Shops
Highlight:

steel frame building

,

steel frame construction

Steel Structure Construction for Car Repair Shops and Metal Workshops
Product Specifications
Attribute Value
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Type Steel frame structure workshop
Working scope Design, Fabrication, Installation
Application Car Maintenance Shop, Auto Repair Shops
Project Overview
Our steel structure factory buildings are designed for car repair shops and metal workshops, offering complete solutions from design to installation. The welded H-section steel columns and beams connected by high-strength bolts provide durable construction with glass wool sandwich panels for superior insulation.
Key Features
  • Available in clean span or double span configurations
  • Includes office and storage space options
  • Wide span capability with large interior space
  • High strength-to-weight ratio
  • Cost-effective with short construction time
  • Excellent insulation and seismic performance
  • Flexible layout options
Standard Dimensions
Parameter Specification
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Specification
Main Frame H Steel beam, Q235/Q345 steel H beam and columns, painted or galvanized
Secondary Frame Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
Roof & Wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
Door Sliding or rolling door
Window Aluminium alloy window
Surface Treatment Two layers of rust-proof painting or Hot Dip Galvanized
Our Manufacturing Capabilities
We operate three production lines with advanced equipment including plasma cutting machines for precise steel structure fabrication.
Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan 0
Quality Assurance
  • 100% dimension tolerance testing (<1mm)
  • 20% sample welding line ultrasonic testing
  • 20% magnetic powder testing
  • Third-party inspection available
Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan 1
Our Services
  • Complete steel structure fabrication including painting and galvanizing
  • Design, fabrication and installation of prefabricated buildings
  • Detailed shop drawings based on your architectural plans
  • Engineering consulting services
Steel Frame Workshop for Auto Repair Shops - 50 Year Lifespan 2
