Prefabricated Steel Buildings Portal Frame for Factory Construction

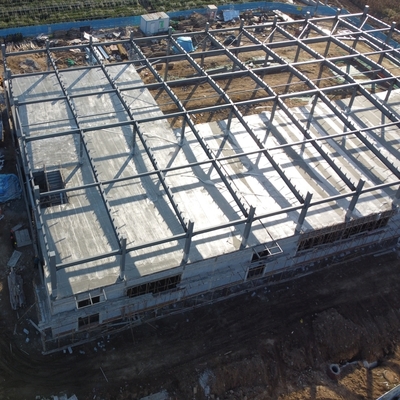

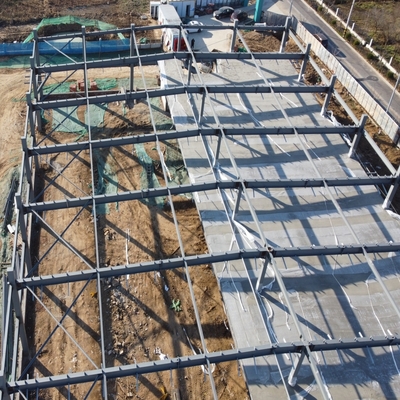

Large Image : Prefabricated Steel Buildings Portal Frame for Factory Construction

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0079

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefabricated Steel Buildings Portal Frame for Factory Construction

Description

Application:	Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction	Usage:	Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory, Clothes Plant
Type:	Prefabricated Steel Buildings	Working Scope:	Design,Fabrication, Installation
Raw Steel Material:	Q235B, Q355B	Surface Treatment:	Painting
Service Life:	50 Years	Wall And Roof:	Glass Wool
Highlight:	steel frame building , steel frame construction

Pre Built Steel Buildings Portal Frame Structure Factory Buildings Construction

Product Overview

High-quality prefabricated steel structure buildings designed for industrial applications including workshops, warehouses, and factory buildings.

Key Specifications

Attribute	Value
Application	Factory Buildings Construction
Usage	Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory
Type	Prefabricated Steel Buildings
Working scope	Design, Fabrication, Installation
Raw steel material	Q235B, Q355B
Surface treatment	Painting
Service life	50 Years
Wall and Roof	Glass wool

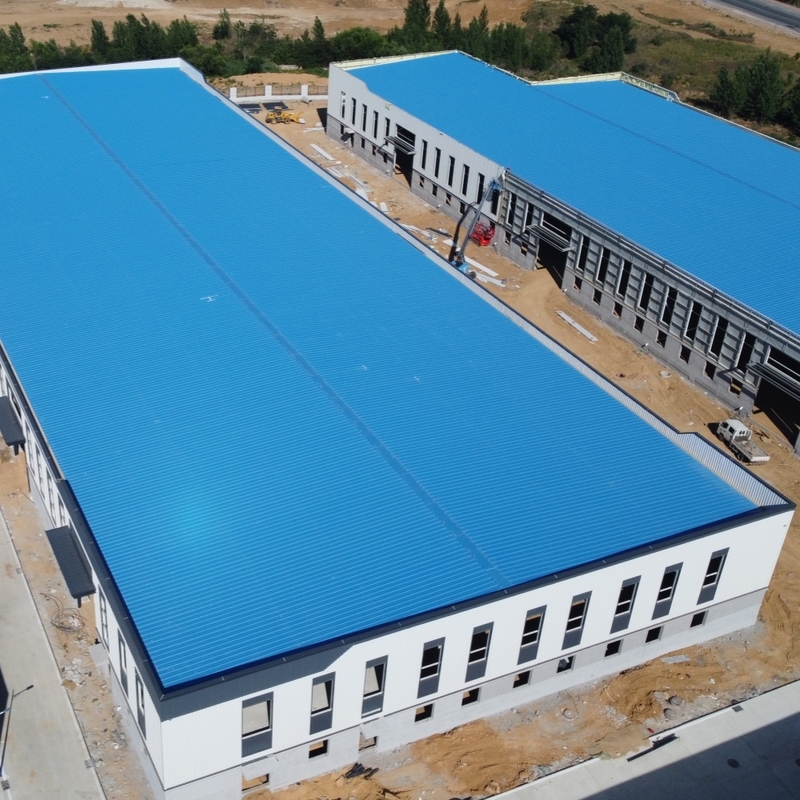

Project Information

Feature	Specification
Structure Type	Portal frame, single ridge, two slopes, multi spans
Dimensions	240m (Length) × 160m (Width)
Eave Height	12m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof Material	Steel cladding sheet, sandwich panel
Wall Material	Steel cladding sheet, sandwich panel

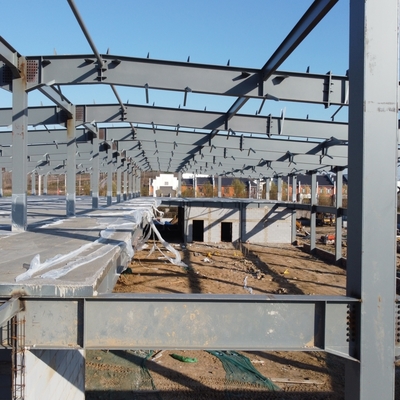

Key Components

Main Frame: H Steel beam, Q235/Q345 steel H beam and columns
Secondary Frame: Galvanized C or Z purlin, steel bracing, tie bar
Roof & Wall: PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
Surface Treatment: Two layers of rust-proof painting or Hot Dip Galvanized
Accessories: Skylight belts, Ventilators, down pipe, Galvanized gutter

Production Capabilities

Our 35,000㎡ fabrication facility includes three light/heavy H steel production lines, BOX production lines, and C/Z purlin production lines with advanced equipment including plasma cutting machines.

Installation Process

Professional installation includes component testing, foundation checking, and precise positioning of steel columns. All work is performed by skilled technicians following strict quality control procedures.

Packaging & Shipping

All components are carefully packed in standard ocean transportation packages and loaded into 40'HQ containers by experienced workers using cranes and forklifts.

Request a Quote

Please provide the following information for an accurate quotation:

Project location (country/area)
Building dimensions (length × width × height)
Environmental loads (wind speed, snow height)
Earthquake resistance requirements
Insulation and wall specifications
Door and window requirements
Crane specifications if needed
