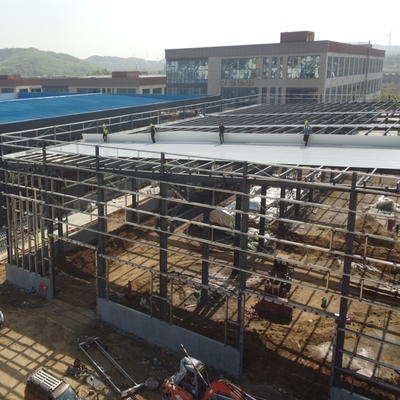

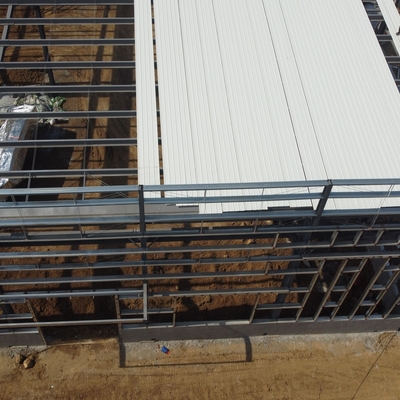

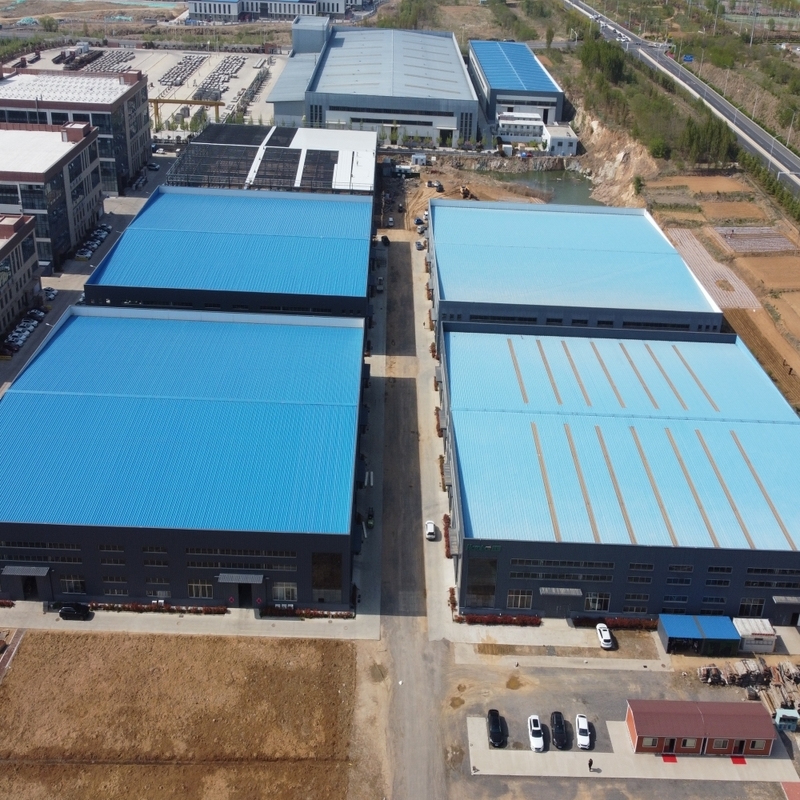

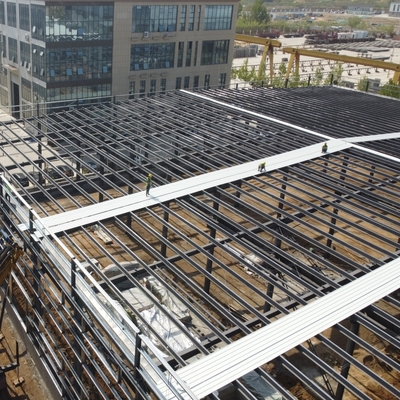

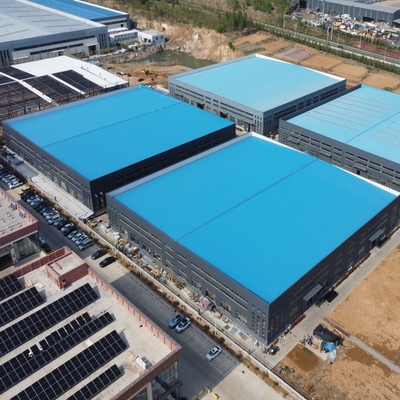

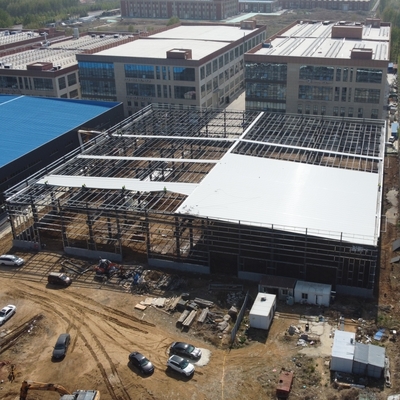

Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan

Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan
Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan
Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan

Large Image :  Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0205
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan

Description
Application: Arch Roof Steel Frame Buildings,Space Structure Metal Buildings Raw Steel Material: Q235B, Q355B, ASTM A36
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Aluminum Composite Panel Surface Treatment: Painting
Type: Arch Roof Space Structure Buildings Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

steel frame building

,

prefab metal buildings

Arch Roof Steel Frame Commercial Building Modern Steel Structures Painting Surface
Product Attributes
Attribute Value
Application Arch Roof Steel Frame Buildings, Space Structure Metal Buildings
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Aluminum composite panel
Surface treatment Painting
Type Arch roof space structure buildings
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Product Description

Arch Roof Steel Frame Commercial Buildings / Space Structure Metal Buildings designed as entrance halls for supermarkets. The roof is supported by arch H-section steel, providing large interior space with high structural stability. The roof system consists of arch steel beams, steel purlins, and skylight components.

Specification of Steel Structure Material
Items Specification
Main Steel Frame - Column Q235, Q345 Welded H Section Steel
Main Steel Frame - Beam Q235, Q345 Welded H Section Steel
Secondary Frame - Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system - Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Maintenance system - Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories - Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Accessories - Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature: -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Structural Steel Fabrication Quality Control
  • 100% testing dimension tolerance <1mm
  • 20% sample welding line ultrasonic testing, no fault, full penetration
  • 20% magnetic powder testing, no bubble, no defect, Smooth and Full
  • Supply third-party inspection assistance
Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan 0
Our Services

We design and fabricate customized steel structure components for light and heavy steel structure buildings in portal frame and dome frame configurations, including:

  • Warehouses and workshops
  • Storage facilities and hangars
  • Agricultural buildings (chicken sheds, etc.)
  • Commercial structures (markets, supermarkets, parking structures)
  • Office buildings and factories
  • Exhibition halls and gymnasiums
  • Dormitory buildings
  • Oil & gas facilities
  • Power stations and infrastructure buildings
Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan 1
How to Quote

Please provide the following information for an accurate quote:

# Question Your Answer
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
Arch Roof Steel Frame Building with H-Section Beams 50-Year Lifespan 2
