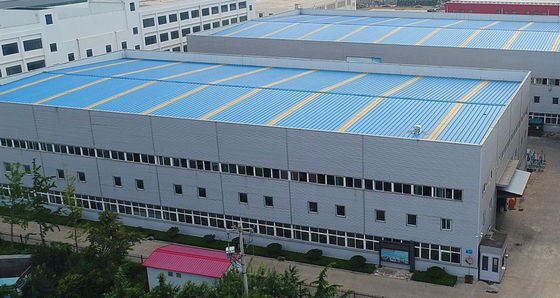

Hot Dip H Section Column Q345 Steel Structure Workshop

Hot Dip H Section Column Q345 Steel Structure Workshop
Hot Dip H Section Column Q345 Steel Structure Workshop

Large Image :  Hot Dip H Section Column Q345 Steel Structure Workshop

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0240
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Hot Dip H Section Column Q345 Steel Structure Workshop

Description
Application: Logistics Warehouse Buildings Usage: Steel Structure Logistics Buildings ,Steel Structure Workshop
Type: Prefabricated Steel Frame Buildings Our Service: Design, Fabrication, Construction
Service Life: 50 Years Surface Treatment: Painting Or Hot-dip Galvanize
Wall And Roof: Steel Cladding Columns And Beam: H Section Column&Beam
High Light:

Q345 Steel Structure Workshop

,

Hot Dip Steel Structure Workshop

,

SGS Steel Structure Workshop

Prefabricated Light Industrial Warehouse Structure

Steel light prefabricated workshop building



Prefabricated steel structure



Prefabricated steel structures are ideal for erecting industrial buildings that are pre-designed to meet building design standards. All the main components of this steel structure are pre-designed, including pre-drilled, pre-drilled and pre-welded, and then installed in the desired location. We provide strong steel structures to ensure that these buildings can withstand the test of time and severe weather conditions.



Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe



Advantages of prefabricated steel structure


Large span


Various structural steels make it possible to construct large-span buildings.



Ready to assemble quickly and efficiently


Since all the main components of the prefabricated steel frame building are pre-cut, pre-drilled and pre-welded in the manufacturer's factory, and then installed at the desired location, the construction period is short.



low cost


Compared with other building forms (such as concrete buildings), it has a lower cost.



Excellent fire resistance and corrosion resistance


It can withstand severe weather conditions, such as strong winds and heavy snow.



Good seismic performance


Due to the plasticity or ductility of structural steel, it will not suddenly break when subjected to a large force, but will slowly deform or deform. Therefore, its performance in earthquakes is much better than other materials.



Environmentally friendly


The structural steel can be recycled without pollution.



Custom design


According to your specific requirements, the steel workshop can be made into any shape and covered with any type of material.



Types of prefabricated steel structures


Heavy steel structure


It is ideal for constructing various industrial buildings, such as steel workshops, warehouses and factories. The heavy-duty steel structure has high strength and long service life.



Light steel structure


It uses thin steel plates that have been bent to form a C-shaped or Z-shaped section. The light steel structure is able to create more useful building space, reduce building height, and at the same time have a better appearance and lower cost.

In addition, if you need to install bridge crane systems inside the factory, we also provide a series of bridge cranes and runway systems.
