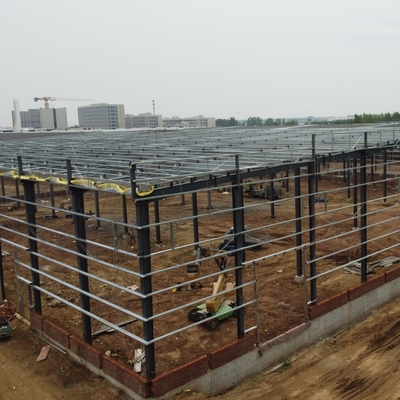

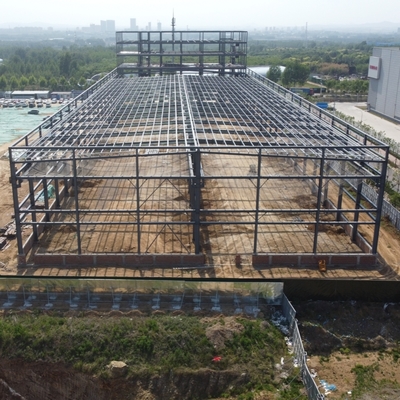

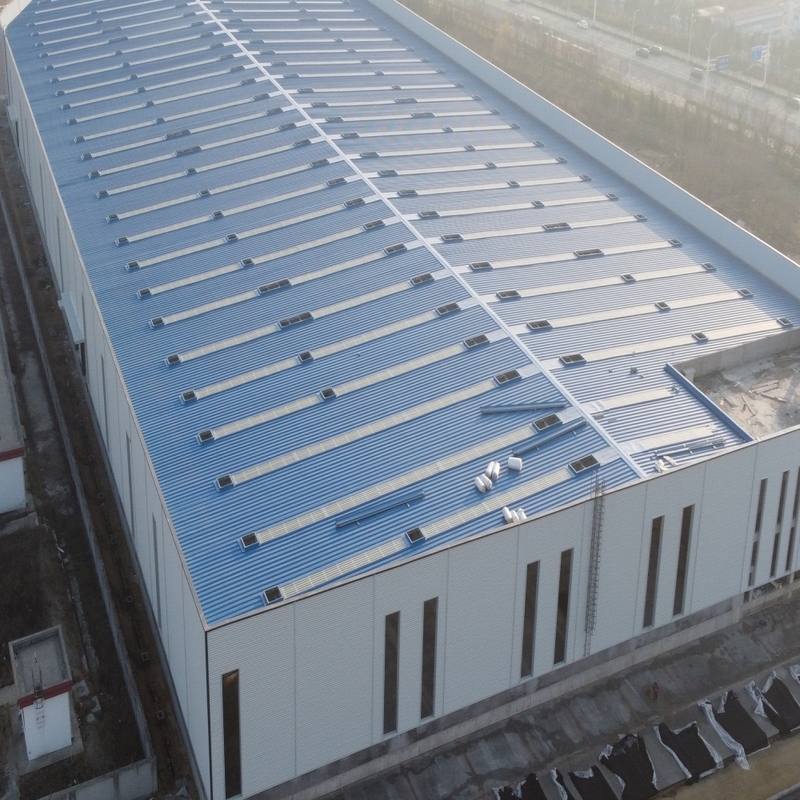

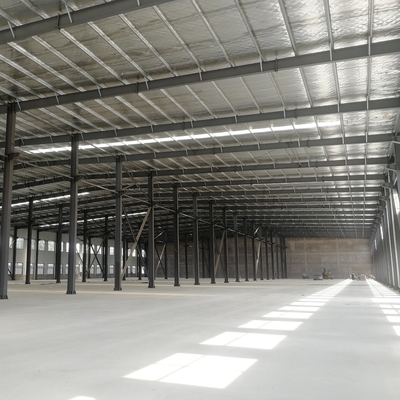

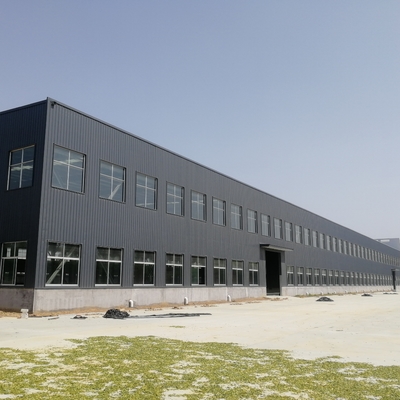

Hot Dip Galvanized Steel Structure for Industrial Buildings

Hot Dip Galvanized Steel Structure for Industrial Buildings
Hot Dip Galvanized Steel Structure for Industrial Buildings
Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings Hot Dip Galvanized Steel Structure for Industrial Buildings

Large Image :  Hot Dip Galvanized Steel Structure for Industrial Buildings

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0064
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month
Contact Now

Hot Dip Galvanized Steel Structure for Industrial Buildings

Description
Application: Hot Dip Galvanized Structural Steel Frame Buildings / Galvanized Steel Frame Building Type: HDG Steel Structure Or Galvanized Steel Structure
Raw Steel Material: Q235B, Q355B, ASTM A36, Surface Treatment: Hot-dip Galvanized / HDG
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Columns And Beam: H Section Column&Beam, Latticed Column Service: Design,Fabrication, Installation
Highlight:

steel frame building

,

steel frame construction

Hot Dip Galvanized Steel for Electrical and Telecommunications Equipment
Product Specifications
Attribute Value
Application Hot Dip Galvanized Structural Steel Frame Buildings / Galvanized Steel Frame Building
Type HDG steel structure or Galvanized steel structure
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Hot-dip Galvanized / HDG
Shot blasting level Sa 2.5
Service life 50 Years
Columns and Beam H Section Column&Beam, Latticed column
Service Design, Fabrication, Installation
Product Overview
Hot dip galvanized steel structures provide superior corrosion protection for metal components in various industrial applications. The galvanizing process involves immersing rust-free steel in molten zinc at approximately 500°C, creating a durable protective layer that significantly extends the structure's lifespan.
Key Advantages
  • Superior corrosion resistance: Maintains protection for over 50 years in suburban environments and 20 years in urban/coastal areas
  • Durable finish: Eliminates the need for frequent maintenance and repainting
  • Comprehensive protection: Zinc coating covers all surfaces, including edges and corners
Standard Project Specifications
Parameter Value
Structure Type Portal frame, single ridge, single span
Length 90m
Width 20m
Eave Height 8m
Span 20m
Steel structure quantity 60 Ton
Column & Beam H-section steel
Roof & Wall sandwich panel 0.5mm steel cladding sheet
Technical Parameters
Component Specification
Material Carbon structural steel (Q235B, Q345B or custom grades)
Dimensions H beam: 4000-15000mm length, 200-1200mm height
Thickness Web plate: 6-32mm, Wing plate: 6-40mm
Surface Options Hot-dip galvanized or painted finish (custom colors available)
Minimum Order Quantity 1000 m²
Structural Components
  • Main Frame: H Steel beams, Q235/Q345 steel columns (painted or galvanized)
  • Secondary Frame: Galvanized C/Z purlins, steel bracing, tie bars, knee braces
  • Roof & Wall: 75mm Glass wool sandwich panels
  • Doors & Windows: Sliding/rolling doors, aluminum alloy windows
  • Accessories: Skylights, ventilators, downpipes, gutters, flashing
Design Capabilities
Our dedicated engineering team provides comprehensive steel structure design services, including structural optimization and material selection. We ensure designs are not only structurally sound and cost-effective but also aesthetically pleasing, with attention to architectural details and material combinations.
Hot Dip Galvanized Steel Structure for Industrial Buildings 0
Hot Dip Galvanized Steel Structure for Industrial Buildings 1
Quotation Requirements
Item Details Required
1 Location (country/region where structure will be built)
2 Structure dimensions (length × width × height in mm)
3 Maximum wind load (kN/m², km/h, or m/s)
4 Maximum snow load (kN/m² or mm)
5 Earthquake resistance requirements
6 Brick wall requirements (height if needed)
7 Thermal insulation specifications
8 Door quantity and dimensions
9 Window quantity and dimensions
10 Crane specifications (if required)
