Prefab Steel Warehouse Buildings with Rock Wool Insulation

Prefab Steel Warehouse Buildings with Rock Wool Insulation
Prefab Steel Warehouse Buildings with Rock Wool Insulation
Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation Prefab Steel Warehouse Buildings with Rock Wool Insulation

Large Image :  Prefab Steel Warehouse Buildings with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0192
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Warehouse Buildings with Rock Wool Insulation

Description
Application: Prefab Steel Warehouse Buildings Shot Blasting Level: Metal Building Framing Components Fabrication
Type: Prefab Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

steel structure building

,

metal storage buildings

,

Q235B Prefab Steel Warehouse Buildings

Prefab Steel Warehouse Buildings / Metal Building Framing Components Fabrication
Product Specifications
Application Prefab Steel Warehouse Buildings
Shot blasting level Metal Building Framing Components Fabrication
Type Prefab Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Introduction

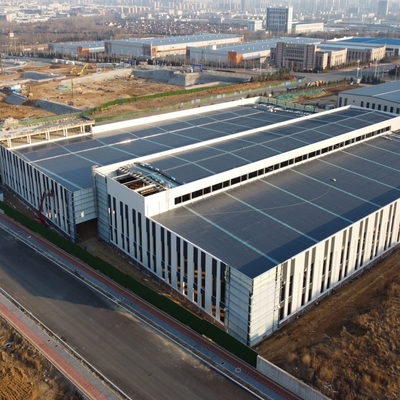

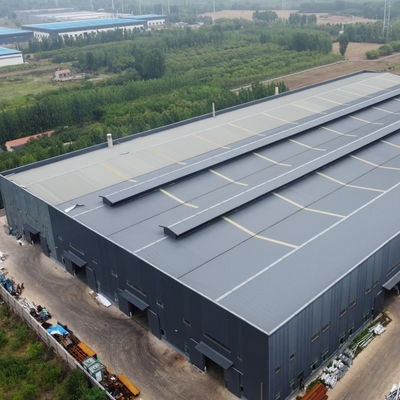

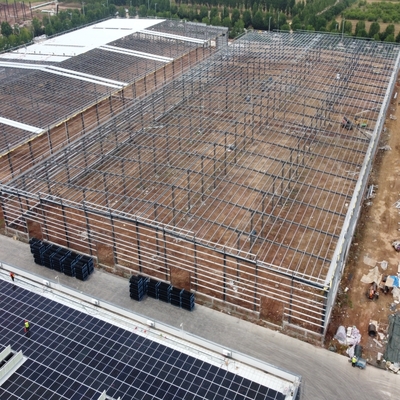

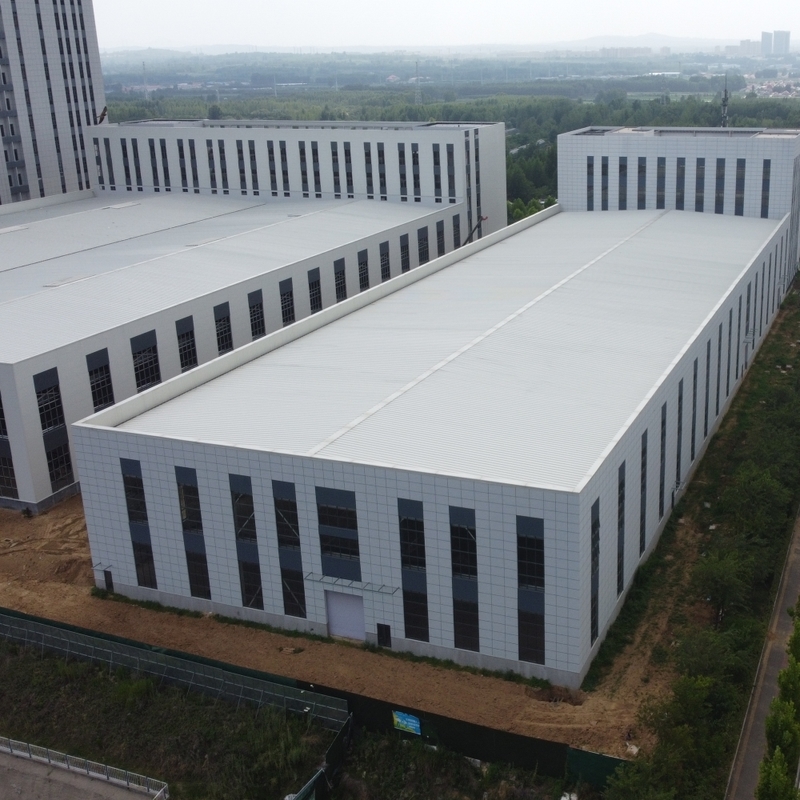

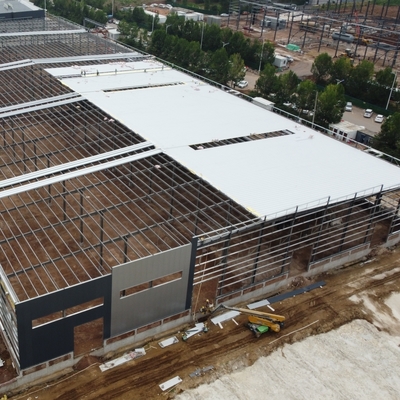

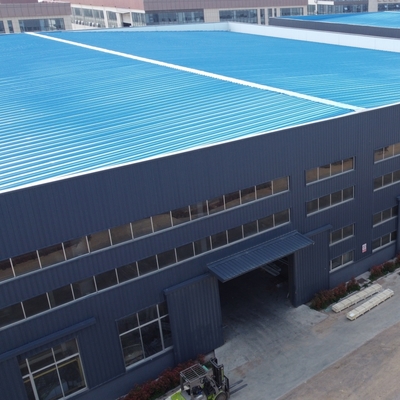

Prefab steel structure warehouse buildings are constructed with a series of steel components including steel columns, beams, and purlins. These metal structures use steel for both internal support and exterior cladding, making them ideal for various applications including storage, workspaces, and living accommodations.

Material Specifications
Component Specification
Main Steel Frame (Column & Beam) Q235, Q345 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical/Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Live Load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12
Earthquake Resistance Grade 8
Structure Usage Up to 50 years
Temperature Range -50°C to +50°C
Certifications CE, SGS, ISO9001:2008, ISO14001:2004
Our Steel Structure Fabrication Facility

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced equipment including plasma cutting machines.

Prefab Steel Warehouse Buildings with Rock Wool Insulation 0
Our Advantages
Professional Design Team Custom design services and steel quantity calculations based on your requirements
Skilled Fabrication Team Independent production schedules for each project with pre-fabrication training
One-Stop Service Customized solutions and integrated project proposals
Quality Control Professional QC team ensures products meet specifications
After-Sales Service Comprehensive support including maintenance guidance for insulation and components
Prefab Steel Warehouse Buildings with Rock Wool Insulation 1
Packing and Transportation

All structural components, panels, bolts, and accessories are packed to ocean transportation standards in 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading at our factory.

Prefab Steel Warehouse Buildings with Rock Wool Insulation 2
