Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business

Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business
Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business

Large Image :  Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0120
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Type: Portal Frame Structure
Working Scope: Design,Fabrication, Installation Application: Warehouse, Workshop, Factory Building
High Light:

steel structure factory building

,

metal workshop building



Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business



Brief introduction for Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business:

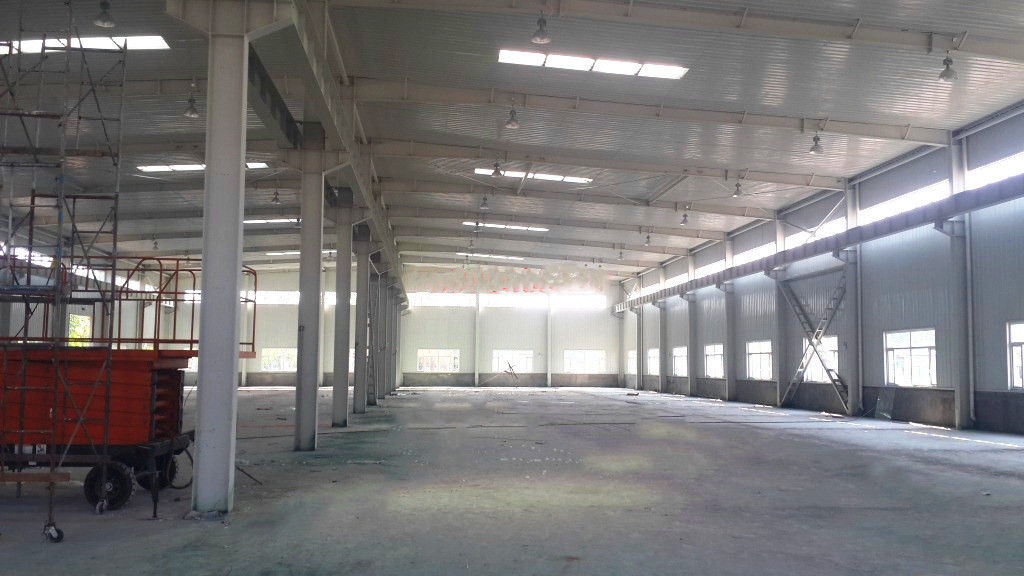

This is a Prefabricated Steel Structure Workshop Construction For Factory Building that is built to be a engine processing factory. Welded H-section steel beams and columns are connected by high strength bolts to be the main frame structure. Since all parts of H-shaped steel are arranged at right angles, H-shaped steel has the advantages of strong bending resistance, simple construction, cost saving and light weight in all directions, and is widely used in various fields.



With the continuous innovation and development of building technology, many building structures use steel structure as the main supporting member or main frame. Compared with the traditional building structure, the steel structure has high strength, strong bearing capacity and seismic performance. Good, self-occupied space is small, steel components are easy to manufacture and install.



Material list and technical parameters:



No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Our service:



1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business 0

Packing and transport:



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.



Factory Steel Structure Workshop / Pre Engineered Metal Buildings Business 1



How to quote:



The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
