| Features: | Prefab Steel Buildings | Application: | Truss Roof Prefabricated Steel Structures Workshop |
|---|---|---|---|
| Type: | Steel Structure Workshop | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting Or Hot-dip Galvanize | Service Life: | 50 Years |
| Columns And Beam: | H Section Column&Beam | Fabrication Standard: | AS4100-1998 |
| Highlight: | steel structure factory building,metal workshop building,Prefabricated Steel Structures Workshop |
||
Australia Prefabricated Steel Structures Workshop Modern Type Truss Roof

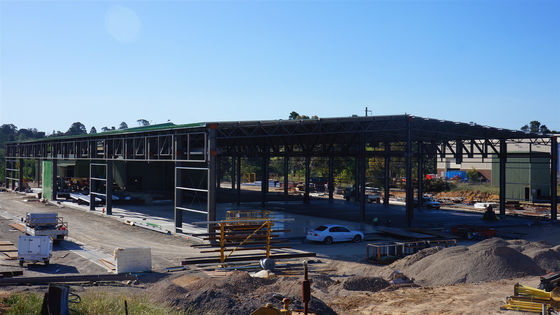

This heavy industrial steel structure workshop is used as a maintain workshop. The size of this workshop is 80*50*10m (L*W*H), With 2pcs 10ton crane, 4pcs 5 tons crane. 75mm EPS cladding system. Steel truss girder, steel structure weight is 300 tons.This project come from a australian steel structure manufacturer. their quality requests is very high. Total workshop area is 4000 sqms, Removing column is the unique feature. You see there many removing columns, This is design not make the trimming joist (chinese standard). But make the central big truss to make all the workshop as a whole.
New workshop with covered area of 4000m².
| Name | Australia steel structure workshop |
| Structure Type | portal frame, single ridge |
| Length | 80m |
| Width | 50m |
| Eave Height | 10m |
| Roof Slope1 | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
75mm EPS sandwich panel |
| Wall |
75mm EPS sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
Within 2 hours after blasting the steel member mustbe painted to gurantee the painting quality. this project we use EPOXY ZINC RICH PRIMER, TWICE PAINT 80 um. After primer paint, we make Epoxy Mio Barrior Paint 40 paint, that paint will ensure all the components will be not rust during long time shipment on the sea.
We make the Ultrasonic Testing In-house, Take record and make report in-house. After we check the components that will be ok. then we ask clients' Inspector come to our factory to check if the quality will be good to loading.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
Just feel free to fill the form based on what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
