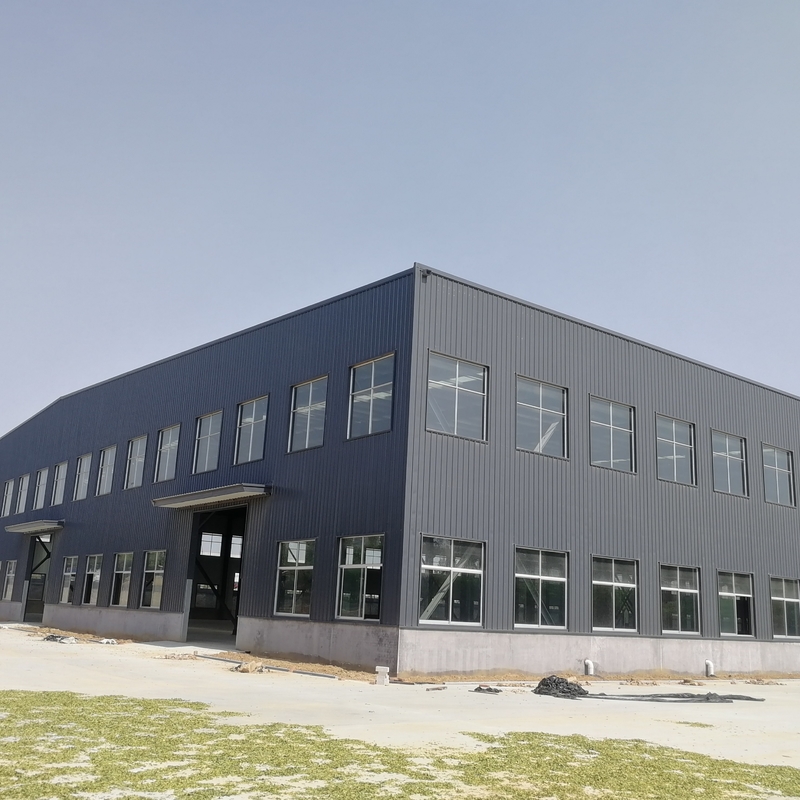

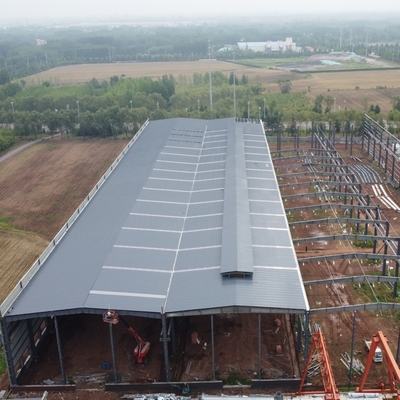

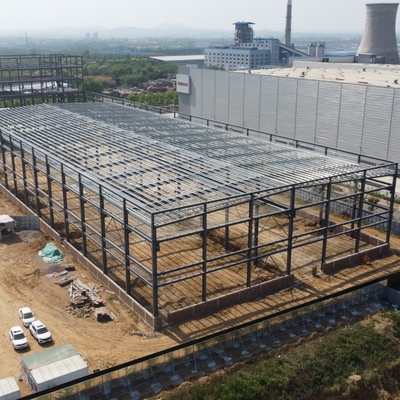

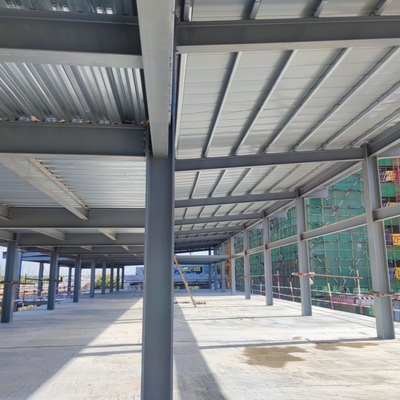

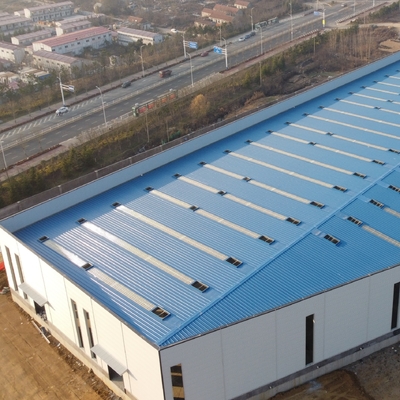

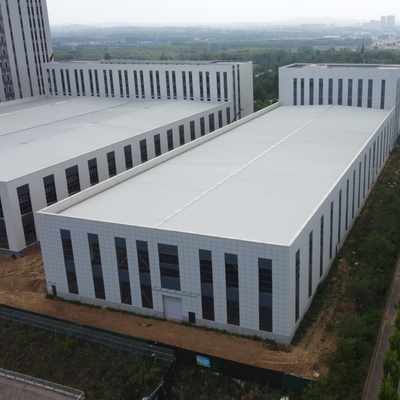

Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B

Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B
Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B

Large Image :  Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0230
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month

Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B

Description
Application: Steel Frame Workshop Buildings Usage: Steel Structure Workshop With Overhead Crane
Type: Prefab Steel Structure Workshop Raw Steel Material: Q235B, Q355B, ASTM A36
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

metal workshop building

Prefab Steel Structure Building With Overhead Crane / Steel Frame Workshop Buildings
Product Specifications
Attribute Value
Application steel frame workshop buildings
Usage Steel Structure Workshop With Overhead Crane
Type Prefab Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Overview

Our prefabricated steel structure workshops feature portal steel frames designed to accommodate one or more heavy cranes. These structures typically include steel platforms and utilize wide flange H-shaped steel materials connected with high-strength bolts. The popularity of steel structure workshops continues to grow due to their simple design, lightweight yet high strength, ease of production and installation, large span capabilities, short construction periods, competitive pricing, and excellent earthquake resistance.

As a professional steel structure fabrication and construction company, we provide comprehensive services including design, fabrication of all steel structure components and insulation panels, as well as on-site installation.

Technical Specifications
No. Item Details
1 Material Carbon structural steel
2 Production Lead Time Normally 45 days after down payment (varies by quantity)
3 Quality Certification Factory quality certificate, third-party available upon request
4-7 Dimensions
H beam length: 4000-15000mm
Web plate thickness: 6-32mm
Wing plate thickness: 6-40mm
Height: 200-1200mm
8 Color Customizable to customer requirements
9 Size Minimum order quantity: 1000 m² (width × length × eave height)
10-25 Main Components
Base: Cement and steel foundation bolts
Main Frame: H Steel beam (Q235/Q345), painted or galvanized box steel, C section or steel pipe
Secondary Frame: Galvanized C/Z purlin, steel bracing, tie bar, knee brace, flashing
Materials: Q235B, Q345B or custom (ASTM, BSEN, DIN, IPE, AISI, JIS)
Purlin: C120~C320, Z100~Z20
Column: X-type, tree type, lattice, Cross, Box
Bolt: Plain bolt and High-strength bolt
Roof & Wall: PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
Surface: Two layers of rust-proof painting or Hot Dip Galvanized
26-30 Applications
• Steel workshop, warehouse, plant
• Steel web frame structure
• Steel H-column and steel H-beam
• Portal frame products
• High rise building project
• Other steel structure buildings
31 Packing
• 20' container: 5.69m × 2.34m × 2.18m (17.5 ton, 24-26m³)
• 40' container: 11.8m × 2.34m × 2.18m (22 ton, 54m³)
• HC container: 13.58m × 2.34m × 2.71m (29 ton, 68m³)
• All steel components protected with blankets during shipment
35 Drawing Custom designs available per customer requirements
Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B 0
Our Manufacturing Facility

Our steel structure fabrication factory spans 35,000㎡ with 20,000㎡ of workshop space. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines equipped with advanced technology including plasma cutting machines.

Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B 1
Packing and Transportation

All structural components, panels, bolts, and accessories are securely packed for ocean transportation and loaded into 40'HQ containers. Our skilled workers carefully load products at our factory using cranes and forklifts to prevent damage during transit.

Prefab Steel Structure Workshop with Overhead Crane Q235B Q355B 2
Frequently Asked Questions
No. Question Answer
1 Are you a manufacturer or trading company? We are a manufacturer. We welcome visits to our facility where our quality control processes and sales team can demonstrate our professionalism and offer competitive pricing.
2 Is your price competitive? We strive to offer the best price for equivalent quality and the best quality for equivalent price, working to reduce your costs while ensuring product excellence.
3 Can you provide installation support? We provide detailed installation drawings for each project and can send engineers to guide installation or a complete construction team for direct installation.
4 Do you offer design services? Yes, we provide comprehensive design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) to create proposal drawings, shop drawings, 3D models, and installation plans.
5 What is the delivery time? Typically 40 days after receiving deposit to nearest Chinese seaport (varies by order quantity).
6 How are products packed and transported? All components are securely packed for ocean transport and loaded into 40'HQ containers.
