Industrial Steel Buildings / Prefabricated Steel Frame Workshop Buildings

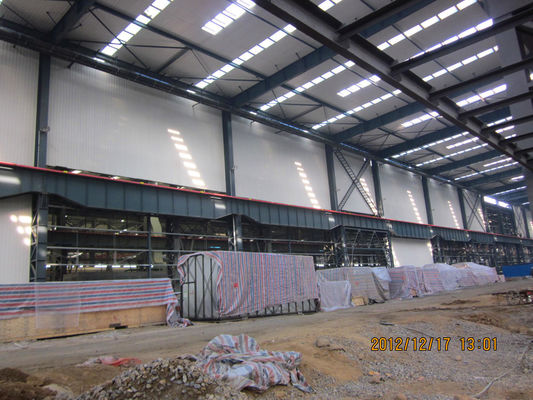

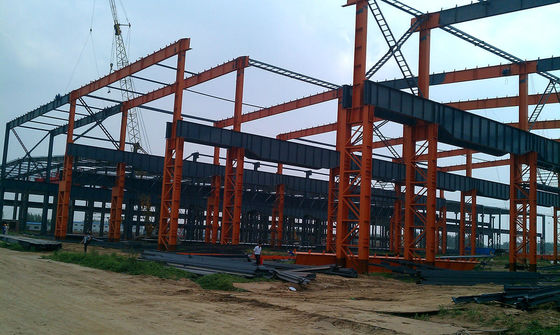

Industrial Steel Buildings / Prefabricated Steel Frame Workshop Buildings. This is a heavy industrial steel structure workshop building for electrolytic aluminimu production. The capacity of overhead crane in the workshop building reaches 300 Ton.Eave height is 24m. The construction area is 53,000m2. The steel quantity of main steel and secondary steel structures is about 7,500 tons. To support the heavy load from the structure and crane, we design the column to be latticed steel columns. The width of crane beam reaches 3.6m.
Heavy-duty steel structure workshops are mostly frame or frame structure, with one or more heavy-duty cranes. One or more layers of steel structure platforms are generally arranged in the factory. Most of the steel structure materials are wide-flange H-beams. Mostly high-strength bolted joints, so the manufacturing process of welded H-beam components and the quality control of high-strength bolt installation are the key to the quality of the plant structure.
| Name |
Industrial Steel Buildings / Prefabricated Steel Frame Workshop Buildings |
| Structure Type | Portal frame, single ridges,multi spans |
| Length | 300m |
| Width | 175m |
| Eave Height | 24m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
steel cladding sheet, sandwich panel |
| Wall | steel cladding sheet, sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
| No. | Item | Details of steel structure building or steel frame | |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm | |
| 6 | wing plate: 6-40mm | ||
| 7 | Height | 200-1200mm | |
| 8 | Color | According to customers | |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, | |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe | |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc. | |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS, | |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. | |
| 16 | Bolt | Plain bolt and High-strength bolt | |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet | |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel | |
| 19 | Door | Sliding or rolling door | |
| 20 | Window | Aluminium alloy window | |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized | |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet | |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc | |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. | |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant | |
| 26 | 2. Steel web frame structure | ||
| 27 | 3. Steel H-column and steel H-beam | ||
| 28 | 4. Portal frame products | ||
| 29 | 5. High rise building project | ||
| 30 | 6. Others steel structure buildings | ||
| 31 | Drawing | According to drawings or steel structure design, according to customer's requirement. | |
We have a dedicated steel structure engineering design department and research and development department, and established an independent and complete steel structure engineering design, optimization and deepening design system. Establishing engineering materials than building materials, we not only control the reliability and economy of the structure, but also the categories, performance, selection and combination of traditional enclosing materials and new maintenance materials. Our design is not only more applicable, safer, more economical, but also rich in architectural beauty.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
