Heavy Industrial Steel Buildings with H Section Frame 50 Year Lifespan

Large Image : Heavy Industrial Steel Buildings with H Section Frame 50 Year Lifespan

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV,ISO
Model Number:	Ruly0007

Payment & Shipping Terms:

Minimum Order Quantity:	50 Ton
Price:	USD900-USD1500 Per Ton
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Ton Per Month

Contact Now

Heavy Industrial Steel Buildings with H Section Frame 50 Year Lifespan

Description

Features:	Steel Frame Structure Building	Application:	Heavy Industrial Steel Buildings
Type:	Industrial Steel Buildings	Raw Steel Material:	Q235B, Q355B, ASTM A36,
Surface Treatment:	Painting Or Hot-dip Galvanize	Service Life:	50 Years
Columns And Beam:	H Section Column&Beam	Installation:	Engineer Guidance On Site
Highlight:	industrial steel structure , industrial metal buildings

Heavy Industrial Steel Buildings / Steel Frame Structure Building Fabrication

Product Specifications

Attribute	Value
Application	Heavy Industrial Steel Buildings
Features	Steel Frame Structure Building
Type	Industrial Steel Buildings
Raw steel material	Q235B, Q355B, ASTM A36
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Columns and Beam	H Section Column & Beam
Installation	Engineer guidance on site

Project Description

Heavy Industrial Steel Buildings / Steel Frame Structure Building Fabrication for salt & chemical industrial projects. We provide complete 3D modeling for steel frame structures, fabricate approximately 600 tons of steel components, and coordinate installation with the General Contractor.

Key Features

Comprehensive 3D Tekla modeling services
Specialized thick paint application with dedicated indoor painting facilities

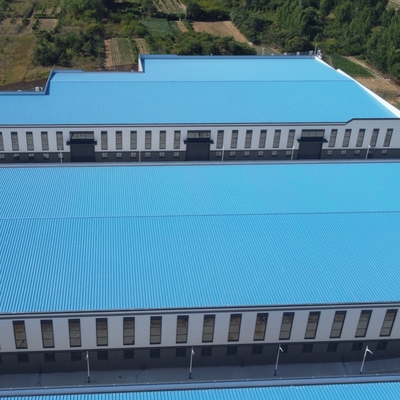

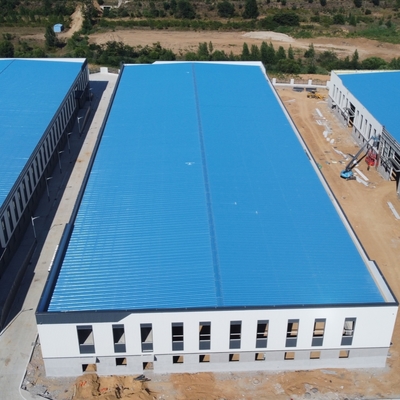

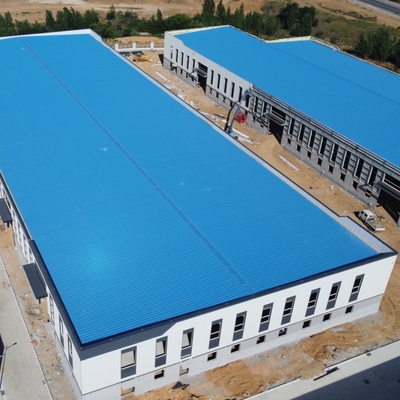

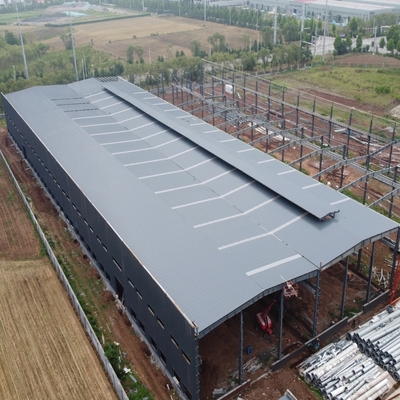

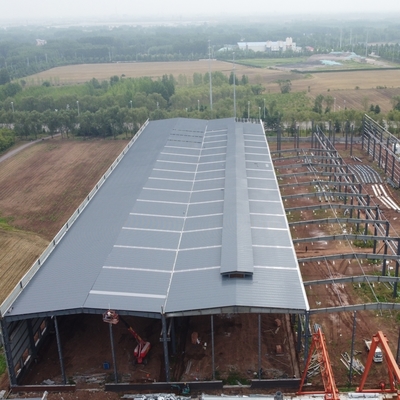

Project Images

Steel Designing & Detailing

Our dedicated engineering department provides complete steel structure design services, including optimization and deepening design. We ensure structural reliability and economy while considering material performance and architectural aesthetics.

Technical Specifications

Component	Specification
Main structure	H section steel Q345, alkyd painting (two primary coats, two finish coats)
Intensive bolt	Grade 10.9
Turn buckle bolt	M20+2, steel Q235, processing
Anchor bolt	M24, steel Q235, processing
Ordinary bolt	Galvanized bolt M20
Ordinary bolt	Galvanized bolt M12
Batter brace	Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Fittings & accessories	Nails, glue etc.

Packing & Loading

All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.

Our Advantages

1. Professional Design Team	We provide customized design services based on your requirements or calculate steel quantities from your existing drawings.
2. Skilled Fabrication	Our advanced equipment and trained workforce follow project-specific production schedules with pre-fabrication training.
3. One-Stop Service	We offer complete project solutions with extensive experience in customized steel structure projects.
4. Quality Control	Dedicated QC team ensures products meet all specifications and requirements.
5. After-Sales Service	Comprehensive support including maintenance services for insulation and steel components.
