Prefabricated Steel Frame Workshop Buildings for Heavy Industry

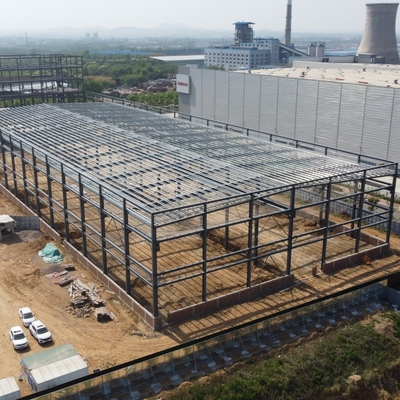

This heavy industrial steel structure workshop building is designed for electrolytic aluminum production. The facility features a 300-ton overhead crane capacity with a 24m eave height and spans a construction area of 53,000m². The total steel quantity for main and secondary structures is approximately 7,500 tons.

• Lattice steel columns designed to support heavy structural and crane loads
• 3.6m wide crane beams for maximum load distribution
• Frame or frame structure configuration with heavy-duty cranes
• Multiple steel structure platform layers
• Wide-flange H-beams as primary structural material
• High-strength bolted joints for superior structural integrity

• Primary Material: Carbon structural steel (Q235B, Q345B or custom specifications)
• H Beam Dimensions: Length: 4000-15000mm, Height: 200-1200mm
• Thickness: Web plate: 6-32mm, Wing plate: 6-40mm
• Surface Finish: Two layers of rust-proof painting or hot-dip galvanized
• Purlin: C or Z purlin sizes from C120~C320, Z100~Z20

Our dedicated engineering team provides comprehensive steel structure design, optimization, and detailing services. We ensure structural reliability, economic efficiency, and architectural aesthetics through our complete design system.

All structural components, panels, bolts, and accessories are packed using standard ocean transportation packaging and loaded into 40'HQ containers. Our skilled workers ensure careful handling to prevent damage during loading.
