Heavy Duty Steel Structure Hangar with Overhead Crane System

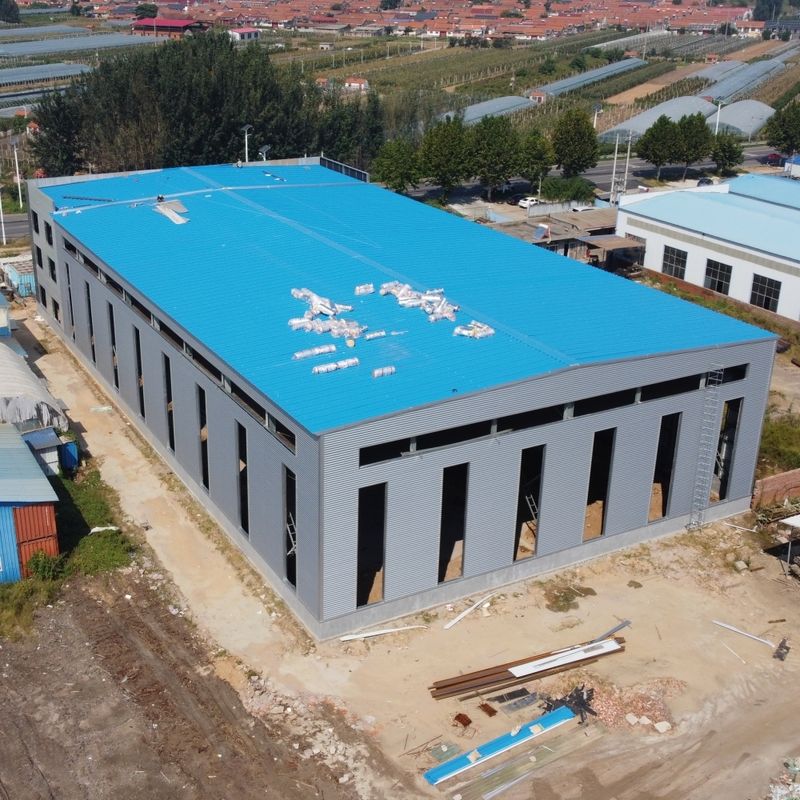

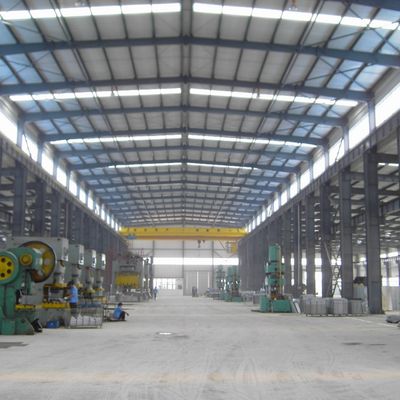

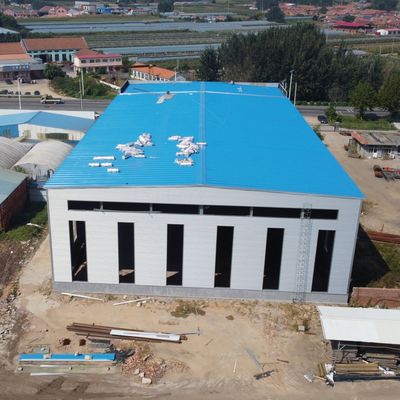

Large-Span Steel Frame

The main structure uses a steel portal frame system to create a spacious interior with fewer intermediate columns. This provides convenient operating space for aircraft, vehicles, machinery and large components while allowing flexible arrangement of workshop equipment.

The frame can be designed according to the required building width, length, eave height, bay spacing and crane configuration. Structural design considers the additional loads and dynamic effects generated by the overhead crane.

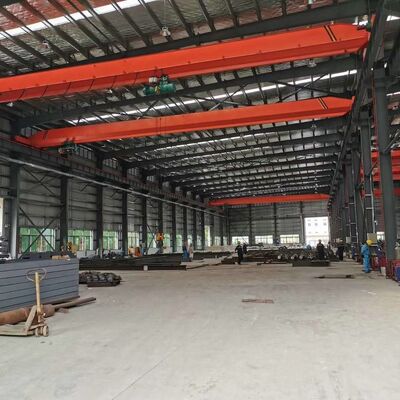

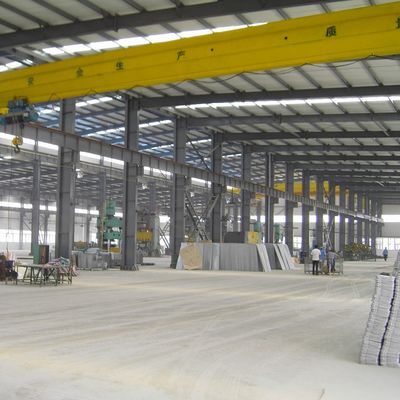

Overhead Crane Integration

The hangar can be designed with crane-supporting structures such as crane runway beams, brackets and related connections. Crane capacity, span, lifting height, runway length and operating requirements can be incorporated into the structural design.

The crane system is particularly suitable for workshops where heavy components, machinery or equipment need to be frequently lifted and moved inside the building.

Magnetic Particle Testing

All steel components are bundled and secured on steel pallets for safe handling and transportation.

The pallets are loaded into containers using gantry cranes and forklifts, ensuring efficient and damage-free loading.
