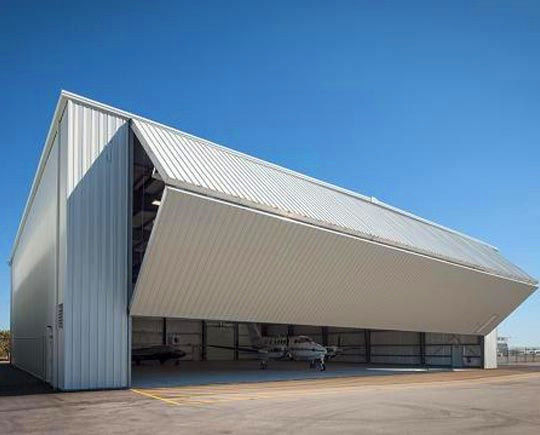

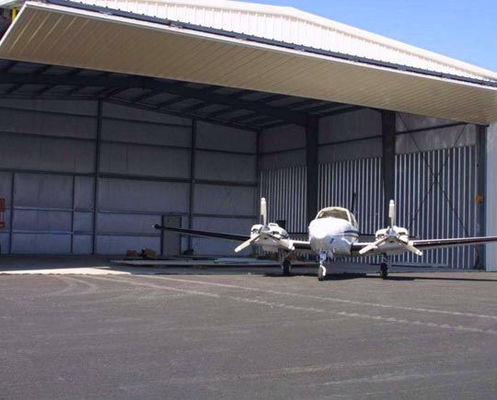

Temporary Aircraft Hangar Steel Structure with Lift-Up Door

Temporary Aircraft Hangar Steel Structure with Lift-Up Door
Temporary Aircraft Hangar Steel Structure with Lift-Up Door
Temporary Aircraft Hangar Steel Structure with Lift-Up Door Temporary Aircraft Hangar Steel Structure with Lift-Up Door Temporary Aircraft Hangar Steel Structure with Lift-Up Door

Large Image :  Temporary Aircraft Hangar Steel Structure with Lift-Up Door

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0110
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Temporary Aircraft Hangar Steel Structure with Lift-Up Door

Description
Features: Steel Structure Buildings With Lift-Up Door Application: Temporary Aircraft Hangar, Steel Structure Buildings
Type: Steel Structure Hangar Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

aircraft hangar construction

,

prefabricated aircraft hangars

Temporary Aircraft Hangar Steel Structure Buildings With Lift-Up Door
Product Specifications
Attribute Value
Application Temporary Aircraft Hangar, Steel Structure Buildings
Features Steel Structure Buildings With Lift-Up Door
Type Steel Structure Hangar
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Description

This temporary aircraft hangar features a steel structure with lift-up door, constructed with welded H-section steel beams and columns connected by high-strength bolts to form the main frame. The complete structure includes multiple functional systems:

  • Structural system (main structure, roof rafter, wall beam)
  • Enclosure systems (roofing, wall panels, edging, floor slabs)
  • Door and window system
  • Ventilation system (gas building, exhaust)
  • Drainage system (gutters, downpipes, awning)
Project Specifications
Feature Specification
Structure Type Portal frame, single ridge, two slopes, single span
Length 80 m
Width 30m
Eave Height 9m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Steel cladding sheet, sandwich panel
Wall Steel cladding sheet, sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Material Specifications
Item Details
Material Carbon structural steel
Lead Time Normally 45 days after down payment
Quality Certification Factory certificate, third-party available upon request
Dimensions H beam: 4000-15000mm length, 200-1200mm height
Thickness Web plate: 6-32mm, Wing plate: 6-40mm
Color Options Customizable to customer requirements
Minimum Order Quantity 1000 m²
Production Line
Temporary Aircraft Hangar Steel Structure with Lift-Up Door 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Design, fabrication and installation of prefabricated steel structures
  • Engineering drawings based on your architectural plans
  • Engineering consulting services
Temporary Aircraft Hangar Steel Structure with Lift-Up Door 1
Packing and Transport

All components are packed for ocean transportation in 40'HQ containers. Loading is performed by skilled workers using cranes and forklifts to prevent damage.

Temporary Aircraft Hangar Steel Structure with Lift-Up Door 2
Quotation Requirements

Please provide the following information for an accurate quote:

Item Details Required
Location Country and area where structure will be built
Size Length × Width × Height (mm)
Wind Load Maximum wind speed (kn/m², km/h, or m/s)
Snow Load Maximum snow height (kn/m² or mm)
Earthquake Resistance Required level
Brick Wall If needed, specify height (1.2m or 1.5m)
Thermal Insulation Type required (EPS, fiberglass wool, rockwool, PU panels)
Doors Quantity and dimensions (width × height in mm)
Windows Quantity and dimensions (width × height in mm)
Crane Requirements If needed, specify quantity, max lifting weight (tons), and height (m)
