Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel

Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel
Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel
Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel

Large Image :  Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO 9001
Model Number: Ruly0130
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel

Description
Application: Steel Structure Aircraft Hangar,Aircraft Hangar Construction Type: Steel Structure Hangar
Raw Steel Material: Q235B, Q355B, ASTM A36 Surface Treatment: Painting Or Hot-dip Galvanize
Service Life: 50 Years Wall And Roof: Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel
Columns And Beam: H Section Column&Beam Installation: Engineer Guidance On Site
Highlight:

aircraft hangar construction

,

prefabricated aircraft hangars

Large Space Steel Structure Aircraft Hangar Construction Steel Frame Fabrication
Product Specifications
Attribute Value
Application Steel Structure Aircraft Hangar, Aircraft Hangar Construction
Type Steel Structure Hangar
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam H Section Column & Beam
Installation Engineer guidance on site
Product Overview

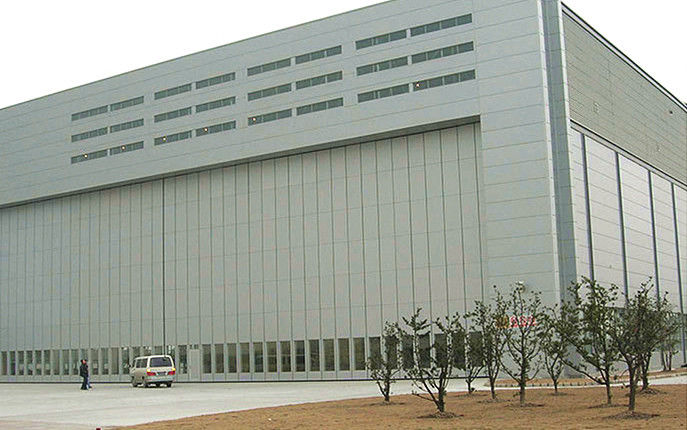

This large space steel structure aircraft hangar features a modern steel space design that efficiently handles the structural demands of large-span buildings. The space structure system offers excellent stress distribution and lightweight construction, solving challenges that traditional planar structural systems cannot address.

Technical Specifications
Structure Type Portal frame structure, truss frame, flat frame structure
Length 20m~200m
Width 20m~50m
Eave Height 8m~30m
Roof Slope 10% or flat
Steel beam & Column H-section steel, truss steel, steel tube, latticed steel, cross-section steel
Roof & Wall insulation panel Steel galvanized cladding sheet, composite panel

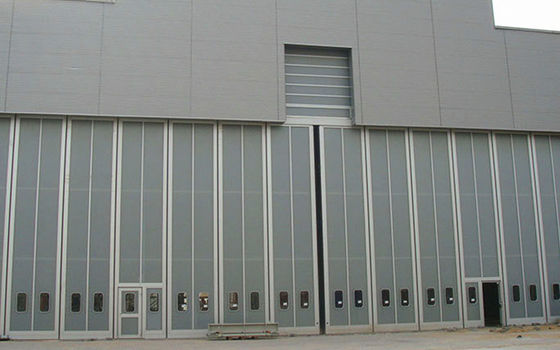

Door Sliding door, folding door, lift door
Window PVC fixed window and sliding door
Anti-corrosion for steel structure Painting or Hot dip galvanized
Production Capabilities

We operate three dedicated steel structure fabrication lines, equipped with advanced machinery including plasma cutting machines to ensure precision manufacturing for international projects.

Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for prefabricated steel structure buildings
  • Development of fabrication/shop drawings based on architectural plans
  • Engineering consulting services
Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel 1
Packaging & Shipping

All structural components, panels, bolts, and accessories are securely packaged for ocean transportation and efficiently loaded into 40'HQ containers.

Steel Structure Aircraft Hangar with Q235B Q355B ASTM A36 Steel 2
Request a Quote

Please provide the following details for an accurate quotation:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m

Tag:

aircraft hangar construction,

prefabricated aircraft hangars,

steel portal frame building
