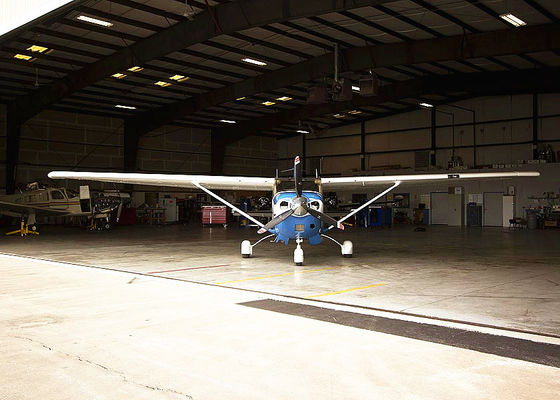

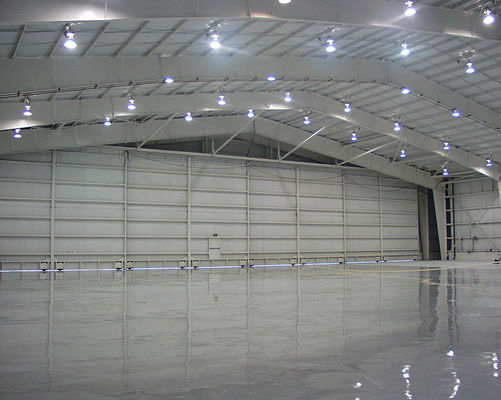

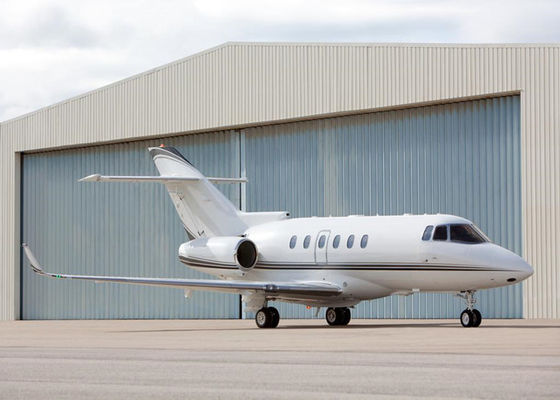

Steel Structure Aircraft Hangar with H Beam Frame

Steel Structure Aircraft Hangar with H Beam Frame
Steel Structure Aircraft Hangar with H Beam Frame
Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame Steel Structure Aircraft Hangar with H Beam Frame

Large Image :  Steel Structure Aircraft Hangar with H Beam Frame

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO 9001
Model Number: Ruly0015
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Aircraft Hangar with H Beam Frame

Description
Application: Steel Structure Aircraft Hangar Buildings Usage: Temporary Aircraft Hangar, Steel Airplane Hangars, Airplane Hangar Construction
Type: Steel Structure Hangar Raw Steel Material: Q235B, Q355B, ASTM A36
Surface Treatment: Painting Or Hot-dip Galvanize Wall And Roof: Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel
Columns And Beam: H Section Column&Beam Installation: Engineer Guidance On Site
Highlight:

steel portal frame building

,

aircraft hangar construction

Steel Structure Aircraft Hangar Buildings

Temporary aircraft hangar construction designed for various aviation needs with customizable steel structures.

Product Specifications
Attribute Value
Application Steel Structure Aircraft Hangar Buildings
Usage Temporary Aircraft Hangar, Steel Airplane Hangars, Airplane Hangar Construction
Type Steel Structure Hangar
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam H Section Column & Beam
Installation Engineer guidance on site
Product Description

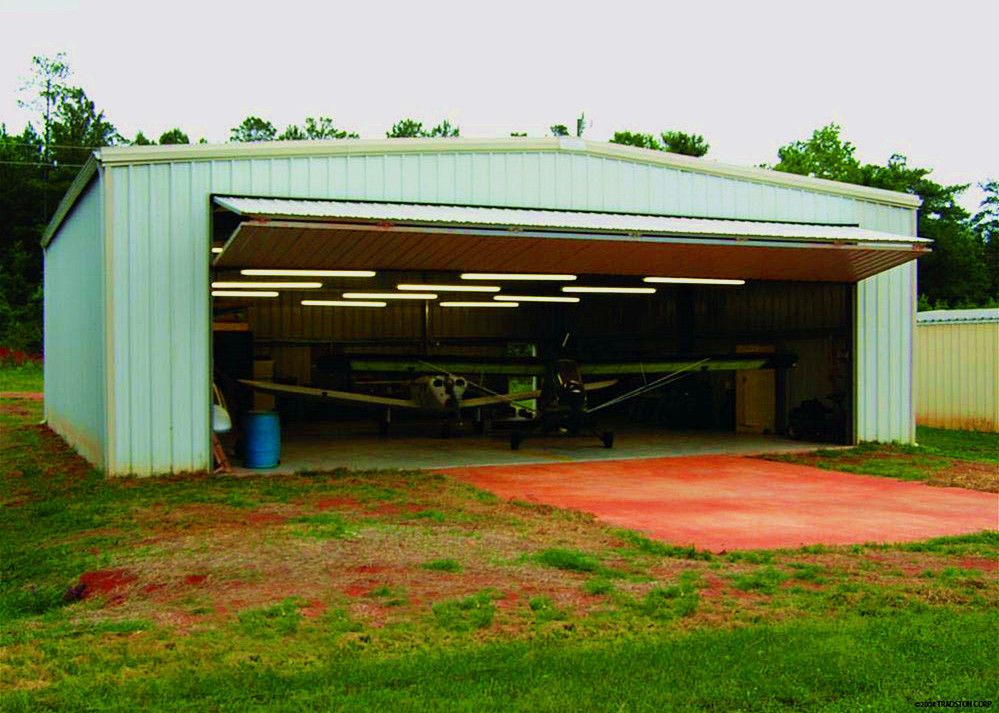

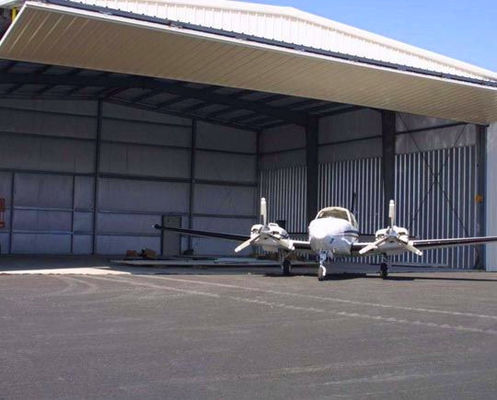

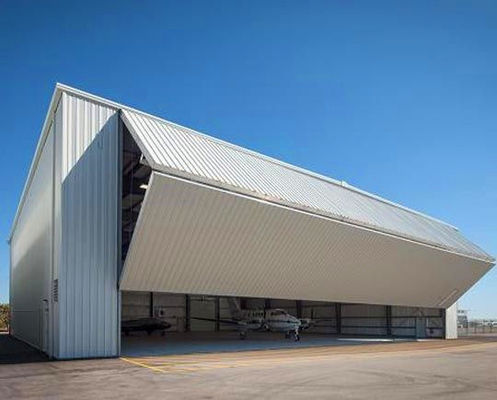

We design and provide all sizes of airplane hangars according to your requirements to accommodate your aircraft. Our steel frames support large spans and height for clearance. Various door options including bi-folding, swing out, or sliding doors can be engineered into the aviation building frame. These structures are designed to meet specific snow, wind, and seismic conditions for your location.

Key Features
  • Low cost with attractive appearance
  • High safety performance
  • Easy to assemble and dismantle
  • Manufactured under ISO9001 quality control system
  • Installation guided by experienced engineers
  • Environmentally friendly construction
Technical Specifications
Component Specification
Main Frame H beam (400-1500mm length, 6-32mm web plate, 6-40mm wing plate)
Purlin C or Z purlin (size from C120-C320, Z100-Z20)
Bracing X-type or other type bracing made from angle, round pipe
Surface Treatment Two ways of anti-rust painting or hot dip galvanized
Accessories Semi-transparent skylight belts, ventilators, down pipe, galvanized gutter
Main Steel Frame System
Component Specification
Main structure H section steel Q345, alkyd painting (two primary, two finish coats)
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Bolts Grade 10.9 intensive bolts, M20+2 turn buckle bolts, M24 anchor bolts
Roof drainage 0.5mm color steel plate gutter, Φ110 PVC rainspout pipes
Installation Process
  1. We provide shop drawings before installation
  2. Our engineers guide on-site installation
Steel Structure Aircraft Hangar with H Beam Frame 0
Structural Advantages
High Strength with Light Weight

Steel structural material offers high strength-to-weight ratio. Compared to concrete, steel beams and columns have smaller cross-sectional areas, increasing usable space by 4-6%.

Rapid Construction

Factory-produced components enable fast on-site assembly, typically 1.5 times faster than concrete construction. Steel structures can serve as their own construction support system.

Efficient Utility Integration

Steel trusses and hollow sections allow convenient pipe routing and maintenance access, reducing required floor heights compared to concrete structures.

Environmentally Friendly

Minimizes use of sand, cement and other materials that create dust and waste. Steel construction aligns with sustainable building practices and is fully recyclable.

Tag:

aircraft hangar construction,

prefabricated aircraft hangars,

steel portal frame building
