Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified

Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified

Large Image :  Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified

Product Details:
Place of Origin: Qingdao,China
Brand Name: Ruly Steel
Certification: CE,AISC,SGS, BV, ISO,GB
Model Number: RULYC002
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: USD19-USD39 Per Square Meter
Packaging Details: 40HQ/Open top container
Delivery Time: 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20,000 square meters or 1,500 tons per month
Contact Now

Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Raw Steel Material: Q235B, Q355B, ASTM A36
Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part Surface Treatment: Painting Or Hot-DIP Galvanized
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet,Sandwich Panel
Columns & Beams: H-Section Steel Shot Blasting Level: SA 2.5
Certification: CE, AISC, SGS, BV, ISO, GB Installation: Engineer Guidance On Site
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM HS Code: 9406900090
Transport Package: Standard Export Package Or Customer′s Requirement Production Capacity: 30000ton/Year
Connection Form: Bolt Connection
Highlight:

4000㎡ Steel Structure Warehouse

,

4000㎡ Prefabricated Steel Structure Warehouse

,

H Section Steel Structure Warehouse

4000㎡ Prefabricated Steel Structure Food Processing Workshop
Product Specifications
Raw Steel Material Q235B, Q355B, ASTM A36
Application Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment Painting or Hot-DIP Galvanized
Service Life 50 Years
Wall and Roof Steel cladding sheet, Sandwich Panel
Columns & Beams H-Section Steel
Shot Blasting Level SA 2.5
Certification CE, AISC, SGS, BV, ISO, GB
Installation Engineer Guidance on Site
Drawing CAD, TEKLA, 3D Model, PKPM, BIM
HS Code 9406900090
Transport Package Standard Export Package or Customer's Requirement
Production Capacity 30000ton/Year
Connection Form Bolt Connection
Project Description

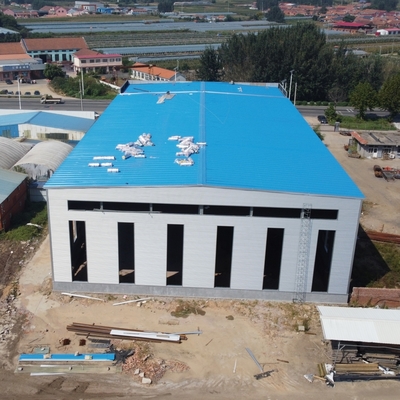

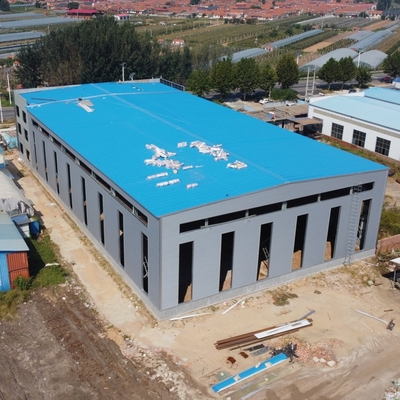

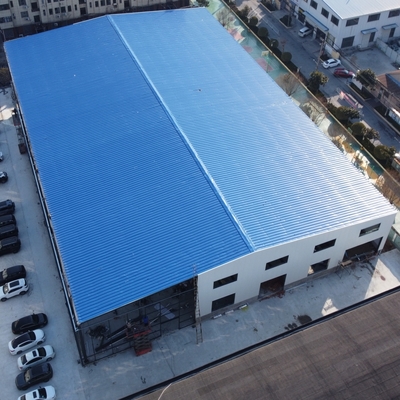

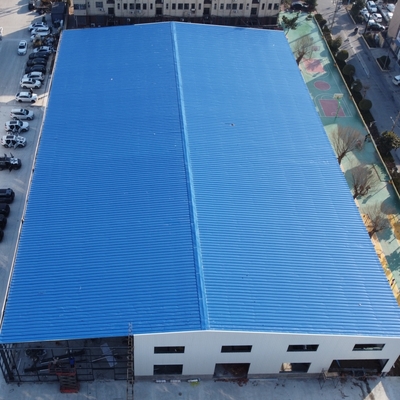

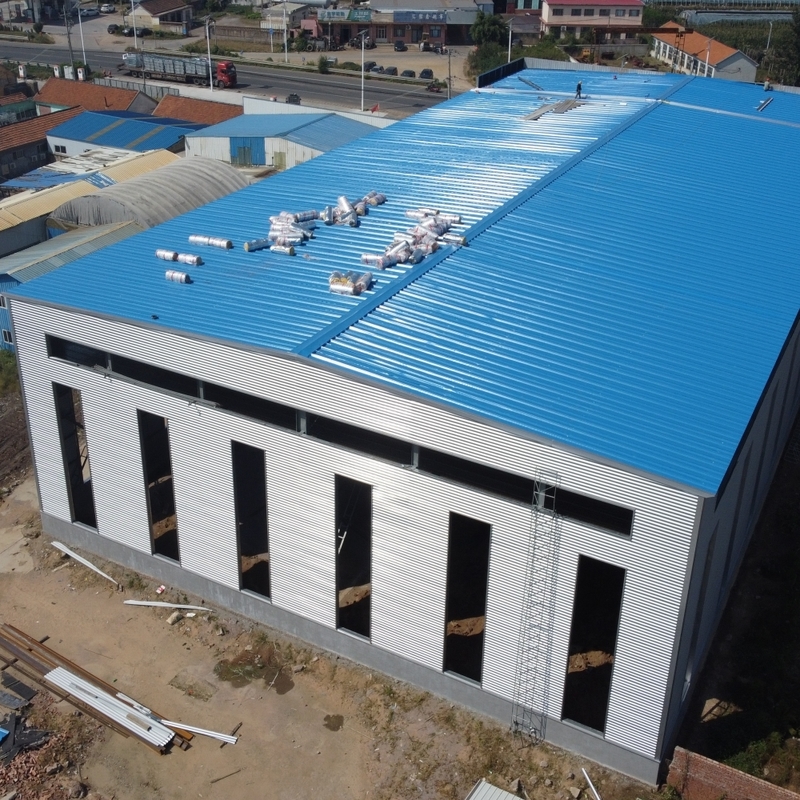

This 4000 square meter steel structure building is designed as a Food Processing Workshop. Our comprehensive solution includes:

  • Welded steel beams & columns
  • Crane systems
  • Steel cladding sheets
  • Purlins, windows, doors
  • All necessary accessories
Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Anchor bolt M24, steel Q235, processing
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 0
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 1
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 2
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 3
Company Profile

Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company located in Qingdao, China. Our steel structure processing plant covers 35,000 square meters with 20,000 square meters of plant area and employs over 100 staff.

Why Choose Us
  • Professional design team for custom solutions
  • Skilled fabrication with advanced equipment
  • Comprehensive one-stop service
  • Dedicated QC team ensuring quality
  • Reliable after-sales service
Our Certifications
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 4
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 5
How to Request a Quote

Please provide the following information for an accurate quotation:

1. Location _____country, area
2. Size _____mm*_____mm*_____mm
3. Wind load _____kn/m2, _____km/h, _____m/s
4. Snow load _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed If yes, 1.2m high or 1.5m high
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 6
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 7
Prefab Steel Structure Warehouse H-Section 4000㎡ CE Certified 8
