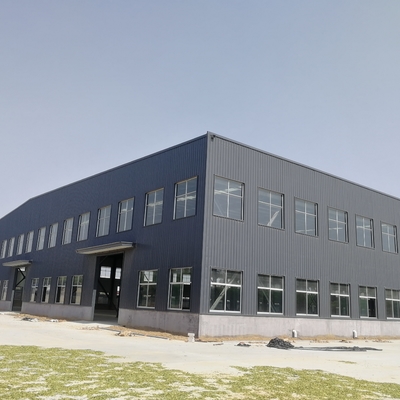

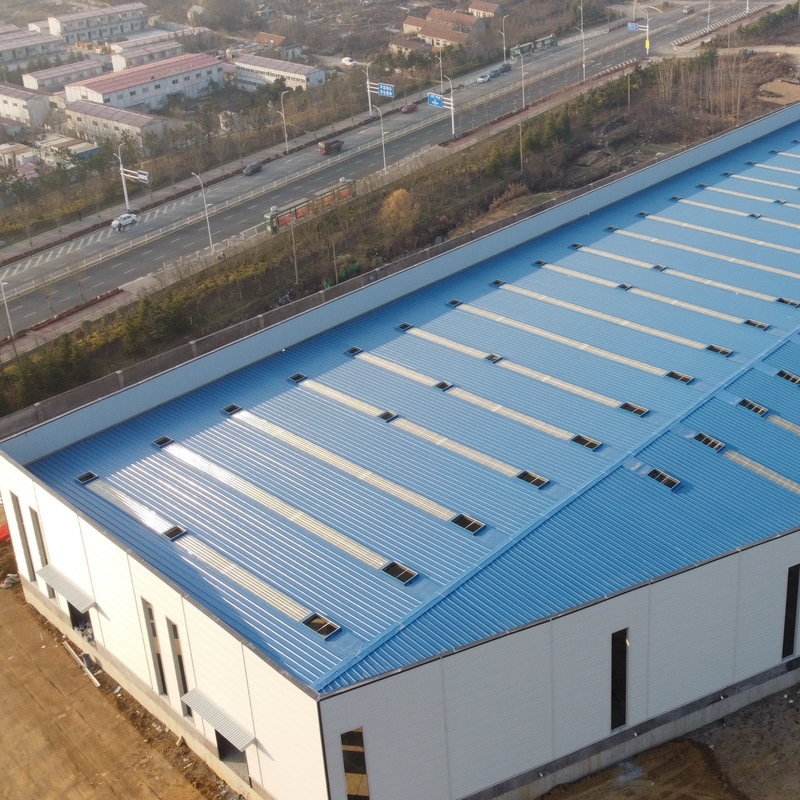

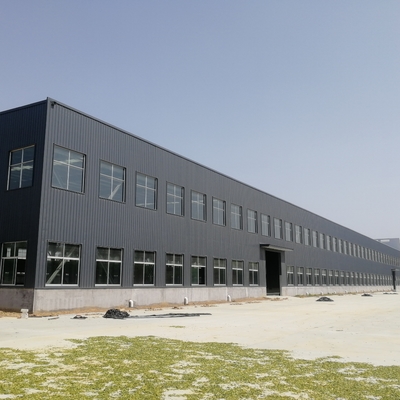

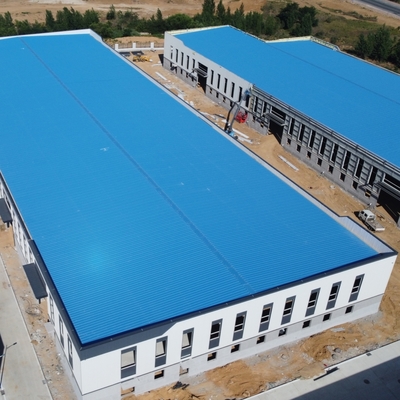

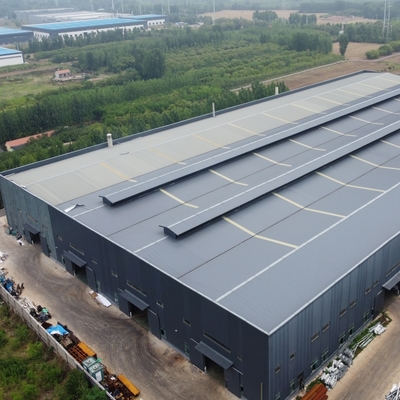

Prefabricated Large Span Steel Structure Building Automobile Manufacturing Workshop
Product Specifications
| Application |
Large-Span Steel Structure Building |
| Type |
Prefab Steel Structure Workshop |
| Raw steel material |
Q235B, Q355B, ASTM A36 |
| Service life |
50 Years |
| Wall and Roof |
Rock wool |
| Surface treatment |
Painting |
| Working scope |
Design, Fabrication, Installation |
| Columns & Beams |
H-section steel |
| Standard |
AISC, ASTM, BS, DIN, GB, JIS |
Project Overview
Our prefabricated large-span steel structure buildings are ideal for automobile manufacturing workshops. These metal structures feature steel columns, beams, and purlins for internal support and exterior cladding, offering superior durability and flexibility for various industrial applications including storage, workspaces, and production facilities.
Steel Structure Material Specifications
| Component |
Specification |
| Main Steel Frame (Column) |
Q235, Q345 Welded H Section Steel |
| Main Steel Frame (Beam) |
Q235, Q345 Welded H Section Steel |
| Secondary Frame (Purlin) |
Q235 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
Maintenance System
| Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Window |
Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout |
PVC |
Performance Specifications
| Live load on Roof |
120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Temperature Range |
-50°C to +50°C |
Certifications & Finishing Options
Certifications: CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options: Vast array of colors and textures available
Paint Options: Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized
Our Manufacturing Capabilities
Our steel structure fabrication factory spans 35,000㎡ with 20,000㎡ of workshop area. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines with advanced equipment including plasma cutting machines.
Our Competitive Advantages
| 1 |
Professional design team
We create customized designs based on your requirements or calculate steel quantities from your existing drawings. |
| 2 |
Skilled fabrication team
We develop independent production schedules for each project, with engineers providing comprehensive training before fabrication begins. |
| 3 |
One-stop service
We offer complete project solutions tailored to your specific requirements, drawing from our extensive experience with similar projects. |
| 4 |
Quality control
Our professional QC team ensures all products and services meet your exact specifications. |
| 5 |
After-sales service
We provide ongoing support for maintenance of insulation and steel components throughout the lifespan of your structure. |
Packing and Transportation
All structural components, panels, bolts, and accessories are securely packed in standard ocean transportation containers (40'HQ). Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free loading.
