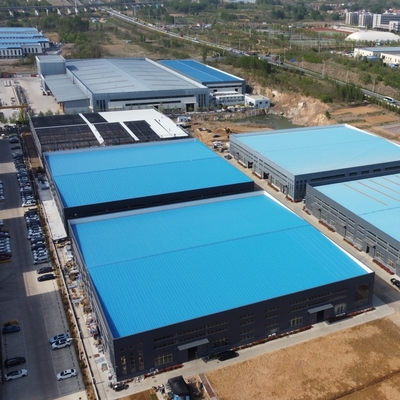

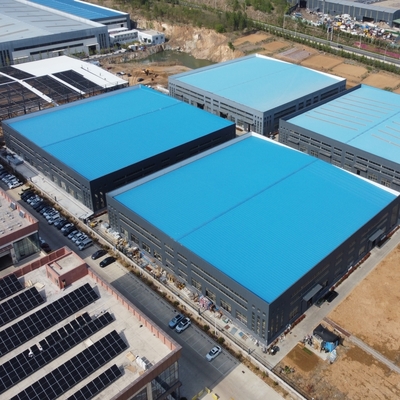

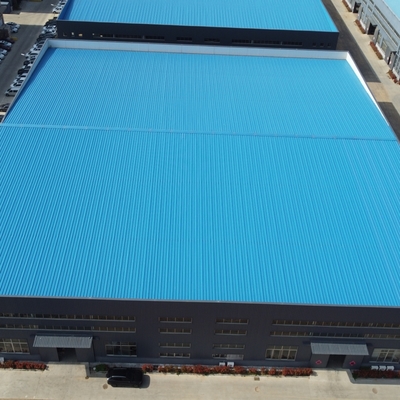

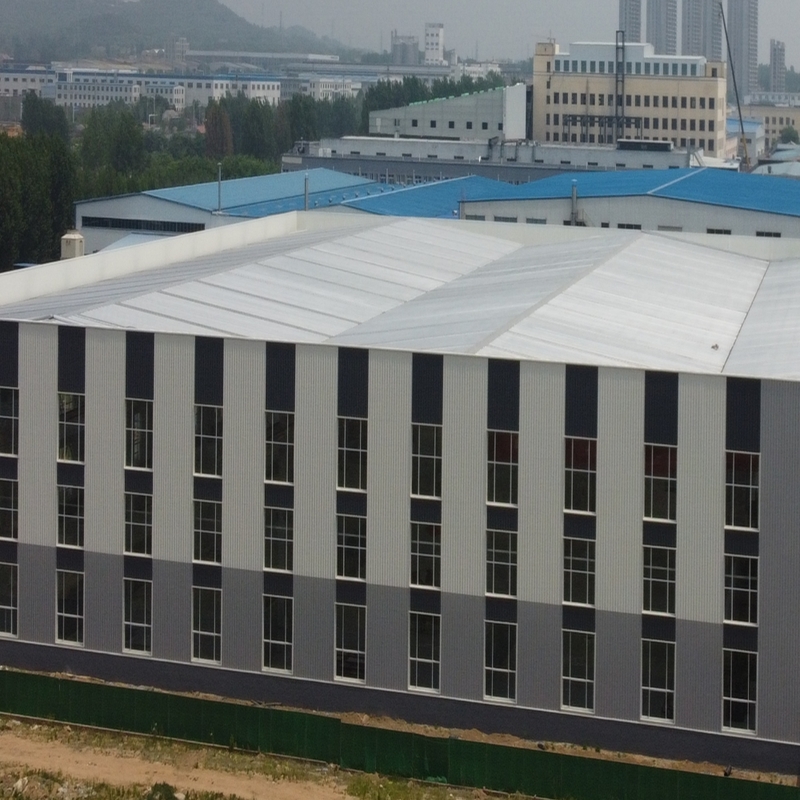

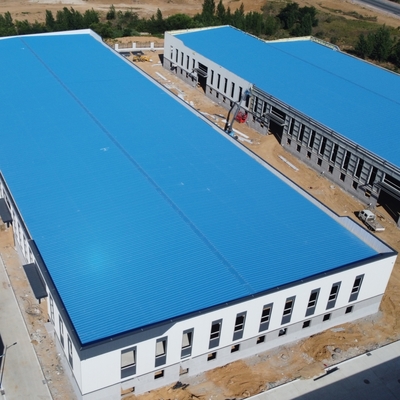

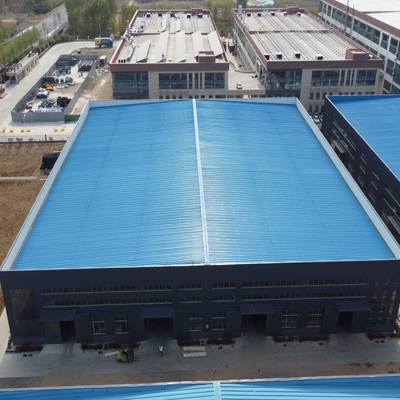

Large Span Steel Structure Building Prefabricated Steel Structure Warehouse
Application
Large-Span Steel Structure Building
Features
Q355B Steel Structure Warehouse
Type
Steel Structure Warehouse
Raw steel material
Q235B, Q355B, ASTM A36
Wall and Roof
Steel cladding sheet
Surface treatment
Painting
Working scope
Design, Fabrication, Installation
Steel Structure Warehouse is widely used as large warehouse, factory, workshops, sheds, garage, hangar, office buildings, bridges, stadiums and other buildings. Portal frame steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.
We have special steel structure engineering design department and R & D department, established an independent and complete steel structure engineering design, optimization and deepening design system. Establishing engineering material-to-material storage, we not only control the reliability and economy of the structure, but also the types, performance, selection and combination of traditional enclosure materials and new maintenance materials. Our design is not only more applicable, safer and more economical, but also richer in architectural art.
Specification of Steel Structure Material
| Item name |
Specification |
Material Parameter |
Technical Treatment |
| Column |
H shape, Box, steel pipe, Hot rolled sheet |
Q235B, Q355B |
Paint or Hot dip galvanized |
| Beam |
H shape, steel Truss, Hot rolled sheet |
Q235B, Q355B |
Paint or Hot dip galvanized |
| Bracing |
Steel rod, Steel pipe, Angle steel |
Q235B, Q355B |
|
| Purling |
C or Z shape, purling Thickness:1.8mm~3.0mm |
Q235B, Q355B |
Hot dip galvanized |
| Wall and roof panel |
EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet. |
Steel T=0.426~0.8mm, insulation T=50~150mm |
Alu-zinc 150g, Fluorocarbon paint |
| Door |
Sliding or rolling door |
Steel or Aluminum sheet, T=1.0~1.5mm |
Paint or Hot dip galvanized |
| Window |
alloy-Glass, Aluminium alloy-shutter |
T=1.0~2.0mm |
Alloy |
| Lighting panel |
FRP, T=1.5mm or T=1.8mm |
Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ |
Light transmittance 85% |
| Ventilator |
Turbine ventilator, and electric type |
Steel, stainless steel, PC |
Paint or Hot dip galvanized, 304 |
| Gutter |
Galvanized or stainless steel plate |
T=2.0mm |
Hot dip galvanized, 304 |
| Downpipe |
PVC pipe, Color steel pipe T=0.5mm |
Φ110, 160, 200 |
Paint |
| Bolt |
Ordinary, high strength |
10.9S, 4.8s |
Hot dip galvanized |
| Anchor bolt |
Steel rod M24, M27 M30 |
Q235B |
|
Our Steel Structure Factory
Quality Control for Steel Structure Fabrication
QC/Technical Support
- Raw material quality control
- Thickness tolerance <0.25mm
- Yield and tension strength testing in-house
- Third party inspection certificate
- Supply traceable mill certificate
Structural steel fabrication quality control
- 100% testing dimension tolerance <1mm
- 20% sample welding line ultrasonic testing, no fault, full penetration
- 20% magnetic powder testing, no bubble, no defect, Smooth and Full
- Supply third-party inspection assistance
Shot blasting and painting quality control
- Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
- Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
Packing & Loading
All the structure components, panels, bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40'HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers, who will prevent the goods to be damaged.
