Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Large Image :  Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0376
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 15 ~ 20 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Description
Features: Multi Span Warehouse Buildings Application: Prefabricated Steel Structure Building
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

Mechanical Warehouse Steel Structure Building

,

Q355 Steel Structure Building

,

Prefabricated Steel Structure Mechanical Warehouse

Q355 Mechanical Warehouse Steel Structure Building Prefabricated
Product Attributes
Attribute Value
Application Prefabricated Steel Structure Building
Features Multi span warehouse buildings
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Working scope Design, Fabrication, Installation
Product Description
Q355 Mechanical Warehouse Prefabricated Steel Structure Building is designed for processing sandwich panels. This three-span structure features one 5T overhead crane per span, with main steel frame consisting of welded H-shaped steel beams and columns. Roof and wall panels utilize rock wool sandwich panels.
Our prefabricated steel structures are widely used for warehouses, factories, workshops, garages, hangars, office buildings, and other commercial structures. The portal frame system integrates H-section, Z-section, and U-section steel components with various panel types for walls and roofs.
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan 0
Steel Structure Material Specifications
Item Specification Material Treatment
Column H shape, Box, steel pipe, Hot rolled sheet Q235B, Q345B Paint or Hot dip galvanized
Beam H shape, steel Truss, Hot rolled sheet Q235B, Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B, Q345B -
Purlin C or Z shape, Thickness: 1.8mm~3.0mm Q235B, Q346B Hot dip galvanized
Wall/Roof Panel EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Window Alloy-Glass, Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion: 2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel, stainless steel, PC Paint or Hot dip galvanized, 304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized, 304
Downpipe PVC pipe, Color steel pipe T=0.5mm Φ110, 160, 200 Paint
Bolt Ordinary, high strength 10.9S, 4.8s Hot dip galvanized
Anchor bolt Steel rod M24, M27 M30 Q235B -

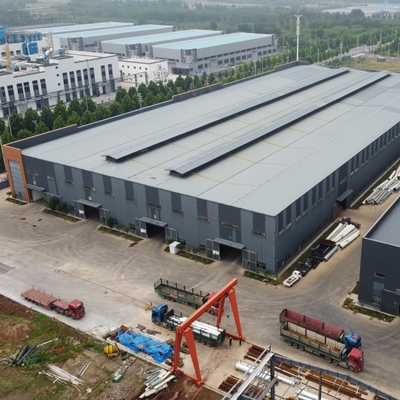

Our Steel Structure Factory
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan 1
Quality Control for Steel Structure Fabrication
  • Raw material quality control: Thickness tolerance <0.25mm, yield and tension strength testing in-house, third party inspection certificates
  • Structural steel fabrication: 100% dimension testing (tolerance <1mm), 20% ultrasonic welding tests, 20% magnetic powder testing
  • Surface treatment: Shot blasting grade Sa. 2.5, paint primer within 5 hours, dry film thickness >75UM
  • Pre-assembly testing of all connection details
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan 2
Packing & Loading
All structural components, panels, bolts and accessories are packed for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading at our factory site.
Q355 Prefabricated Steel Structure Warehouse with 50-Year Lifespan 3
