Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan

Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan
Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan
Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan

Large Image :  Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0375
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan

Description
Features: Large Span Steel Frame Industrial Buildings Application: Steel Prefabricated Warehouse Building
Type: Prefab Steel Frame Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Q235B New Energy Steel Structure Warehouse

,

ASTM Prefabricated Steel Structure Warehouse

,

SGS Automobile Battery Workshop

New Energy Steel Structure Warehouse Automobile Battery Workshop Prefabricated
Product Specifications
Attribute Value
Application Steel Prefabricated Warehouse Building
Features Large Span Steel Frame Industrial Buildings
Type Prefab Steel Frame Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Product Overview

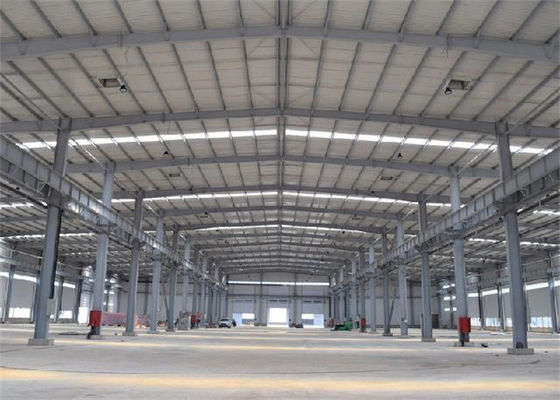

Prefabricated steel structure buildings are widely used for large factories, warehouses, workshops, sheds, garages, hangars, office buildings, bridges, stadiums and other structures. These light steel structure warehouse buildings represent a modern construction system, featuring a main steel framework composed of H-section, Z-section, and U-section steel components, with roof and walls constructed from various panel systems and integrated with windows and doors.

Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q355 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q355 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Range -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized
Our Manufacturing Facility

Our steel structure fabrication factory spans 35,000㎡ with 20,000㎡ of workshop area. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various profiling steel sheet machines, equipped with advanced technology including plasma cutting machines.

Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan 0
Our Competitive Advantages
1 Professional design team We can design drawings to your specifications or calculate steel quantities based on your existing plans.
2 Skilled fabrication team and advanced equipment We create independent production schedules for each project, with engineers providing training before fabrication begins.
3 One-stop service We offer complete project solutions tailored to client requirements, with extensive experience in customized steel structures.
4 Professional QC team Our quality control team ensures all products and services meet your exact specifications.
5 After sales service We provide ongoing support for maintenance of insulation and steel components as needed.
Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan 1
Requesting a Quote

Please provide the following information for an accurate quotation:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used (lower cost)
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
Prefab Steel Warehouse Building with Rock Wool Insulation 50 Year Lifespan 2
