60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B

60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B
60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B
60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B

Large Image :  60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0365
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 15 ~ 20 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B

Description
Features: Galvanized Metal Buildings Application: Prefabricated Steel Structure Warehouse
Type: Steel Structure Warehouse Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B, ASTM A36 Service Life: 50 Years
Wall And Roof: Steel Cladding Sheet Surface Treatment: Painting
Highlight:

ASTM A36 Steel Construction Warehouse

,

60m×30m×7.5m Steel Structure Warehouse

,

Anti Seismic Structural Steel Warehouse

60m×30m×7.5m Steel Warehouse / ASTM A36 Prefabricated Steel Structure Building
Product Specifications
Attribute Value
Application Prefabricated Steel Structure Warehouse
Features Galvanized Metal Buildings
Type Steel Structure Warehouse
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Design Specifications
  • Main Building Size: 60m Length × 30m Width × 7.5m Eave height & 9m Ridge height
  • Structure Type: Portal frame steel structure; Single ridge & Single span
  • Main steel frame structure: H-section steel beams & columns
  • Roof panel & Wall panel: 0.5mm corrugated steel cladding sheet
  • Size of rolling up door: 5.0m Height × 4.0m Width
  • Size of sliding windows: 1.5m Height × 2.0m Width
  • Height of brick wall: 1.2m
  • Wind-resisting property for design: 110km/hour
  • Anti-seismic grade: 7 grade

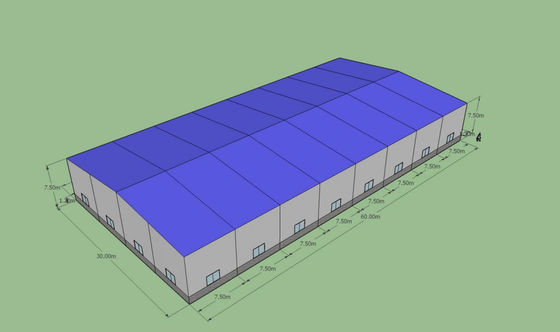

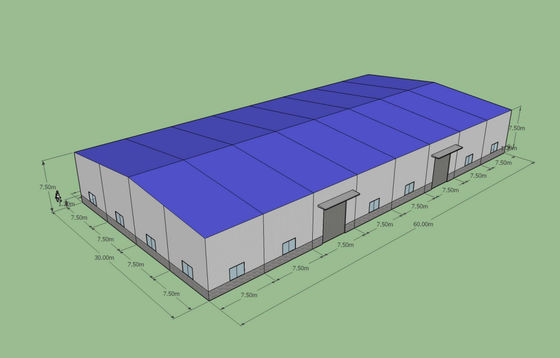

Model Drawings
60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 0 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 1 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 2 60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 3
Technical Specifications
Service Life 50-70 years Standard AISI, ASTM, BS, DIN, JIS
Place of Origin Qingdao, Shandong, China Material Steel and sandwich panel
Grade Q235B, Q355B or as per customer's need Application Workshop, warehouse, poultry house, garage etc.
Connection Intensive bolt, ordinary bolt Bolt Grade M20, M16, M14 etc.
Downsput PVC pipe or as per customer's request Window PVC steel or aluminum alloy
Purlin C/Z shape profile Door Sliding or rolling door
Main Frame Welded or hot rolled H section steel, column and beam Panel EPS/PU/fiber glass/rock wool
Delivery 30-40 days Payment TT, LC
Key Features
  • Wide span: Single span or multiple spans
  • Low cost and maintenance: Unit price range from USD35/m² to USD70/m² according to customer's request
  • Fast construction and easy installation: Time saving and labor saving
  • Long lifespan: Up to 50 years
  • Excellent appearance
  • Additional benefits: Environmental protection, stable structure, high quake-proof, water proof and fire proof, and energy conserving
Handling & Transportation Guidelines
  • Large lifting tools must have special personnel responsible for them, using them appropriately and strictly observing lifting rules to prevent vibration, impact, deformation or damage during the lifting process
  • Special personnel must supervise when loading the truck, checking the number and packaging of the truck, securely fixing and increasing the degree of looseness of necessary binding components to prevent loss
  • Maintain stability during transportation. When transporting vehicles, in the transportation of long, wide, and high objects, well-trained pilots must be accompanied by responsible personnel and place marks on the vehicles
  • Rough handling is not allowed. The handling, weight, and size of the loading and unloading personnel should be familiar with the parts, and check the slings and rigging of the harness to prevent accidents
  • Members go to the construction site and organize unloading and stacking areas in time
  • When handling parts of a crawler crane, attention should be paid to the surrounding terrain and air conditions to prevent the crawler crane from overturning and component collision
60x30x7.5m Prefabricated Steel Warehouse ASTM A36 Q235B 4
