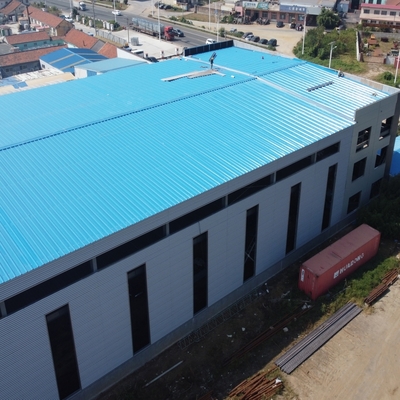

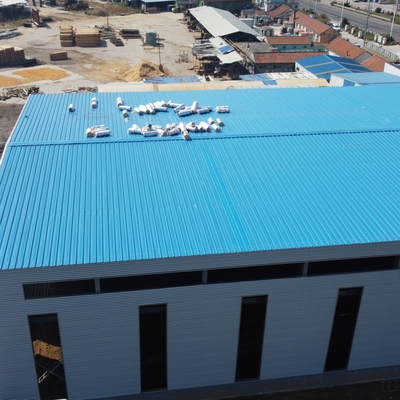

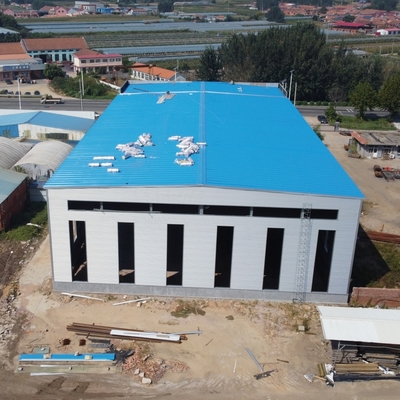

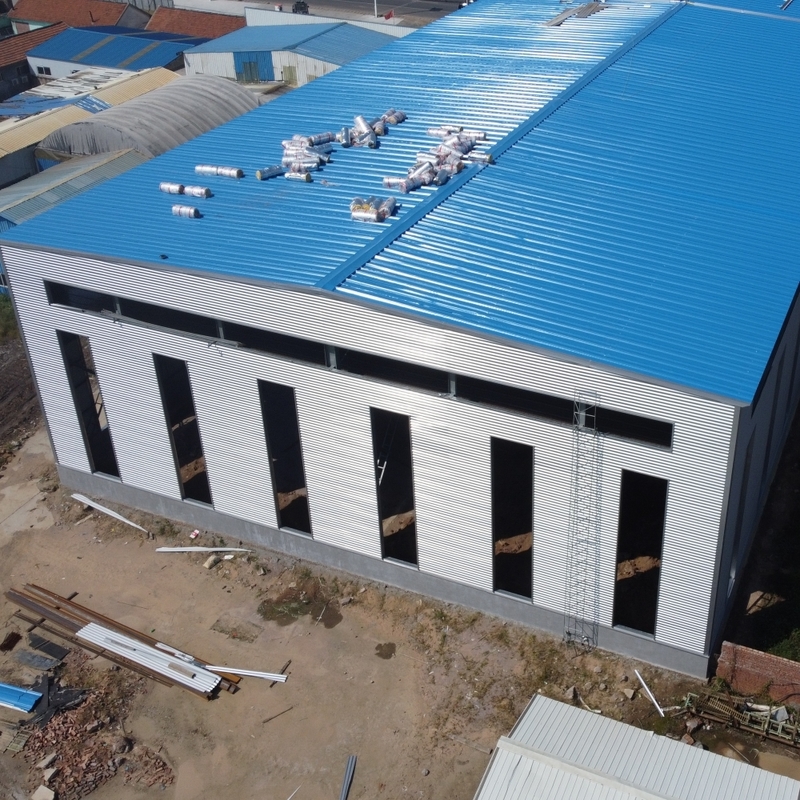

50Mx20M Prefabricated Steel Warehouse with Galvanized Frame

50Mx20M Prefabricated Steel Warehouse with Galvanized Frame
50Mx20M Prefabricated Steel Warehouse with Galvanized Frame
50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame

Large Image :  50Mx20M Prefabricated Steel Warehouse with Galvanized Frame

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0362
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 15 ~ 20 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

50Mx20M Prefabricated Steel Warehouse with Galvanized Frame

Description
Features: Galvanized Metal Buildings Application: Pre Steel Structure Warehouse
Type: Steel Structure Warehouse Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B, ASTM A36 Service Life: 50 Years
Wall And Roof: Steel Cladding Sheet Surface Treatment: Painting
Highlight:

50M×20M Steel Structure Warehouse

,

Earthquake resistance Prefabricated Steel Warehouse

,

Wind Resistance Prefab Warehouse Buildings

50M×20M Prefabricated Steel Structure Warehouse / Steel Structure Frame
Product Specifications
Attribute Value
Application Pre Steel Structure Warehouse
Features Galvanized Metal Buildings
Type Steel Structure Warehouse
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Product Description

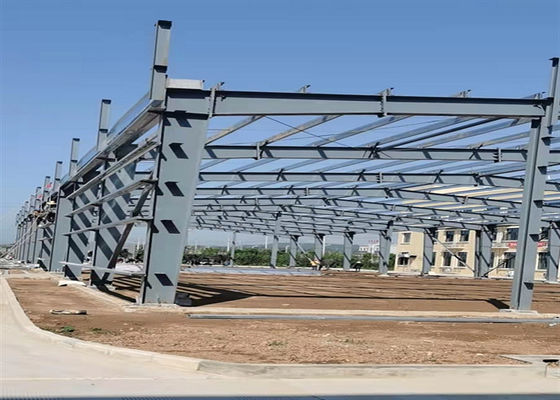

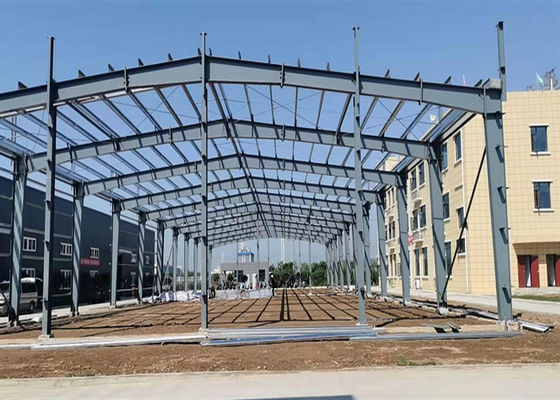

The 50M×20M Prefabricated Steel Structure Warehouse is built using the internationally common portal frame steel structure system. This system efficiently bears and transfers loads through connected steel plates and hot-rolled, cold-formed, or welded profiles.

Steel Structure Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q355 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q355 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical & Horizontal support Q235 Angle Steel, Round Bar or Steel Pipe
Roof panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall panel Sandwich Panel / Corrugated Steel Sheet
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Product Components
50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 0 50Mx20M Prefabricated Steel Warehouse with Galvanized Frame 1
Advantages of Steel Structure Building
  • Space efficiency: Allows flexible partitioning with 6% more effective indoor area compared to traditional buildings
  • Energy efficient: Lightweight wall panels provide excellent thermal insulation, reducing energy consumption by 50%
  • Superior safety: Excellent ductility and deformation capacity provide outstanding earthquake and wind resistance
  • Lightweight construction: Total weight is about half of concrete structures, reducing foundation costs
  • Fast construction: 1,000 square meter building can be completed in 20 days with just 5 workers
  • Eco-friendly: Uses 100% recyclable materials with minimal construction waste
