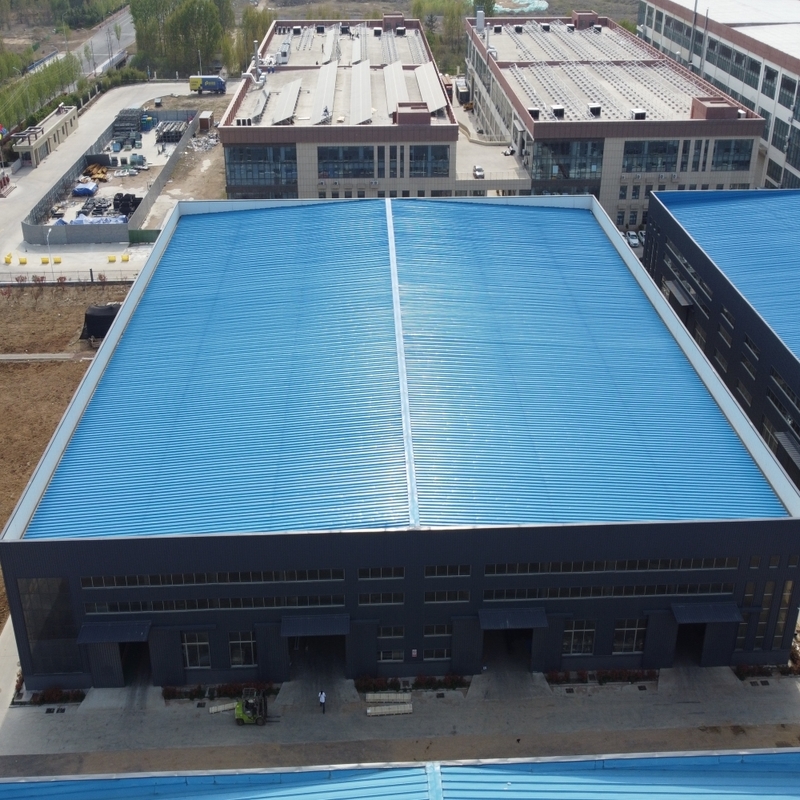

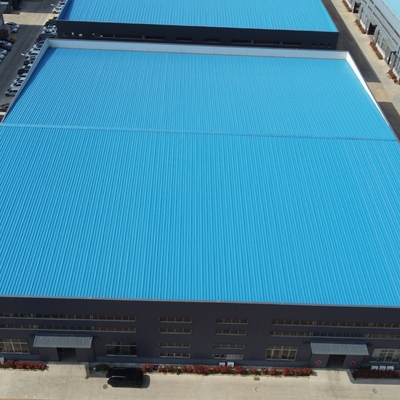

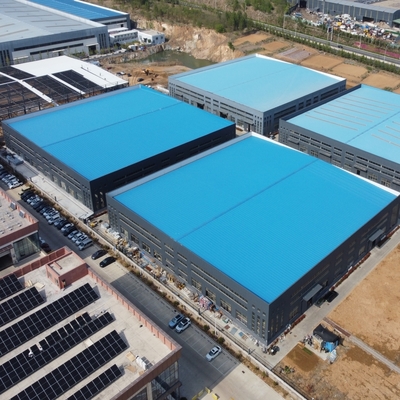

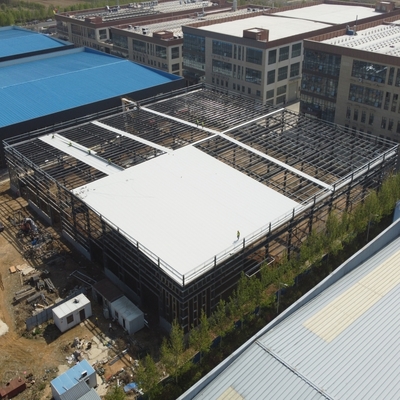

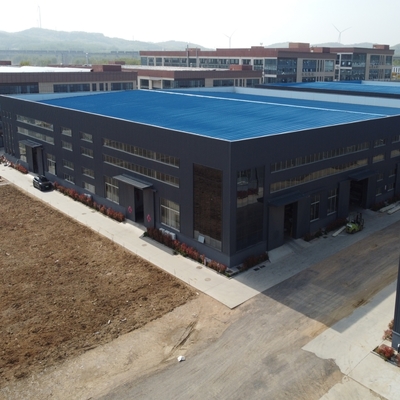

High Strength Prefabricated Steel Structure Warehouse with Lighting

High Strength Prefabricated Steel Structure Warehouse with Lighting
High Strength Prefabricated Steel Structure Warehouse with Lighting
High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting High Strength Prefabricated Steel Structure Warehouse with Lighting

Large Image :  High Strength Prefabricated Steel Structure Warehouse with Lighting

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO
Model Number: Ruly0358
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

High Strength Prefabricated Steel Structure Warehouse with Lighting

Description
Application: Pre Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Type: Steel Structure Warehouse Shot Blasting Level: Sa 2.5
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Service Life: 50 Years
Highlight:

ASTM A36 Steel Structure Warehouse Construction

,

Metal Structure Warehouse With Lighting

High Strength Pre Steel Structure Warehouse / Steel Structure Building With Lighting
Product Specifications
Attribute Value
Application Pre Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Type Steel Structure Warehouse
Shot blasting level Sa 2.5
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Service life 50 Years
Prefabricated Steel Structure Warehouse Features
  • Large span and high strength construction
  • Factory-processed components with high completion degree
  • Reduced on-site construction workload and investment costs
  • Environmentally friendly with minimal construction waste
  • Suitable for various environments and expanding applications
Design Considerations
The steel structure workshop design includes comprehensive drawings divided into design and construction components, requiring coordination between designers to ensure project success.
Temperature section separation measures are crucial for large-area workshops, with options including double-column expansion joints or sliding support systems depending on workshop requirements.
Proper arrangement of roof support systems enhances structural stability, improves rigidity, and controls rod section sizes through lateral, longitudinal, and vertical bracing.
Inter-column support systems are essential for longitudinal stability, spatial rigidity, and load transmission to foundations, requiring coordination with roof support systems.
Design Model
High Strength Prefabricated Steel Structure Warehouse with Lighting 0
Items Specification
Main Steel Frame
Column Q235, Q355 Welded H Section Steel
Beam Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Roof Panel EPS Sandwich Panel /Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Downspout PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature: -50ºC~+50ºC
Certification CE, SGS, ISO9001: 2008, ISO14001: 2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Packaging
High Strength Prefabricated Steel Structure Warehouse with Lighting 1
