Multi Span Steel Structure Warehouse with Painted Surface

Multi Span Steel Structure Warehouse with Painted Surface
Multi Span Steel Structure Warehouse with Painted Surface
Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface Multi Span Steel Structure Warehouse with Painted Surface

Large Image :  Multi Span Steel Structure Warehouse with Painted Surface

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0354
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 15 ~ 20 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Multi Span Steel Structure Warehouse with Painted Surface

Description
Features: Multi Span Warehouse Buildings Application: Steel Frame Warehouse Construction
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

BV Prefab Metal Warehouse Building

,

Steel Structure Peb Warehouse Construction

,

Painting Surface Steel Structure Warehouse Building

Steel Structure Building Multi Span Warehouse Construction Painting Surface
Key Attributes
Application Steel Frame Warehouse Construction
Features Multi span warehouse buildings
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Working scope Design, Fabrication, Installation
Product Overview

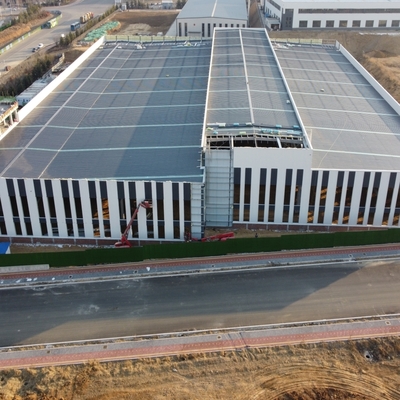

This multi-span steel structure warehouse is designed for sandwich panel processing, featuring three spans with 5T overhead cranes in each. The main structure consists of welded H-shaped steel beams and columns, with rock wool sandwich panels for roof and wall cladding.

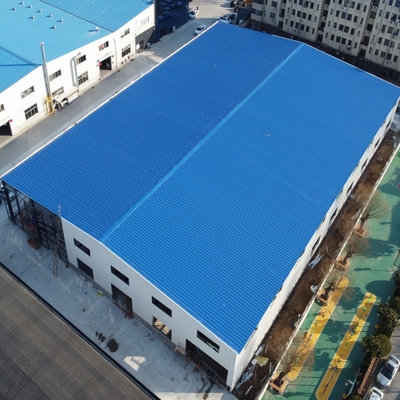

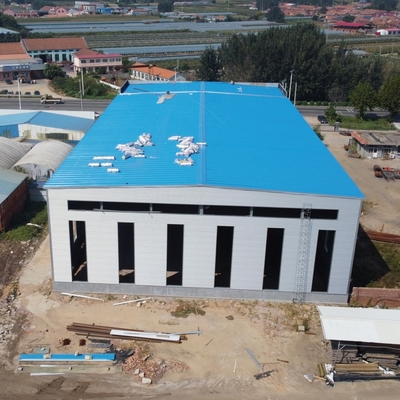

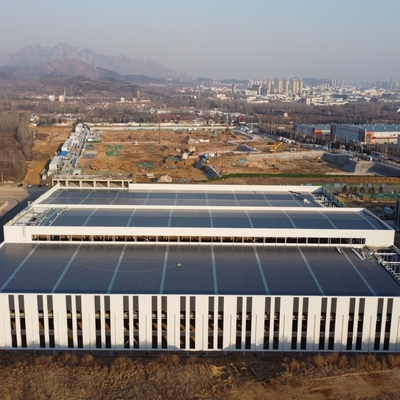

Multi Span Steel Structure Warehouse with Painted Surface 0 Multi Span Steel Structure Warehouse with Painted Surface 1 Multi Span Steel Structure Warehouse with Painted Surface 2
Applications

Our steel frame construction is ideal for various industrial applications including:

  • Large warehouses and factories
  • Workshops and industrial sheds
  • Garages and aircraft hangars
  • Office buildings and commercial spaces
  • Bridges and stadium structures
Material Specifications
Component Specification Material Treatment
Column H shape, Box, steel pipe, Hot rolled sheet Q235B, Q345B Paint or Hot dip galvanized
Beam H shape, steel Truss, Hot rolled sheet Q235B, Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B, Q345B -
Purlin C or Z shape, thickness: 1.8mm~3.0mm Q235B, Q346B Hot dip galvanized
Wall/Roof Panel EPS, Rock wool, Pu, Glass wool Sandwich panel Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Window Alloy-Glass, Aluminium alloy-shutter T=1.0~2.0mm Alloy
Our Manufacturing Facility

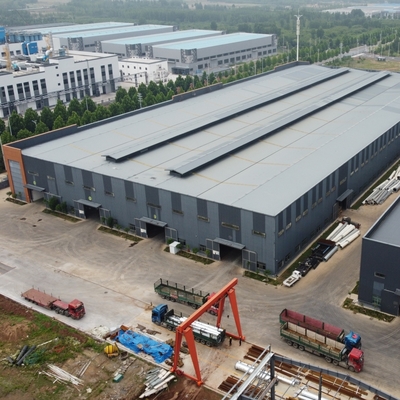

Multi Span Steel Structure Warehouse with Painted Surface 3
Quality Control Standards
  • Raw Material: Thickness tolerance <0.25mm, yield/tension testing, third-party inspection
  • Fabrication: Dimension tolerance <1mm, 20% ultrasonic welding tests, magnetic powder testing
  • Surface Treatment: Shot blasting grade Sa. 2.5, primer within 5 hours, DFT >75UM
  • Assembly: Pre-assembly testing of all connection details

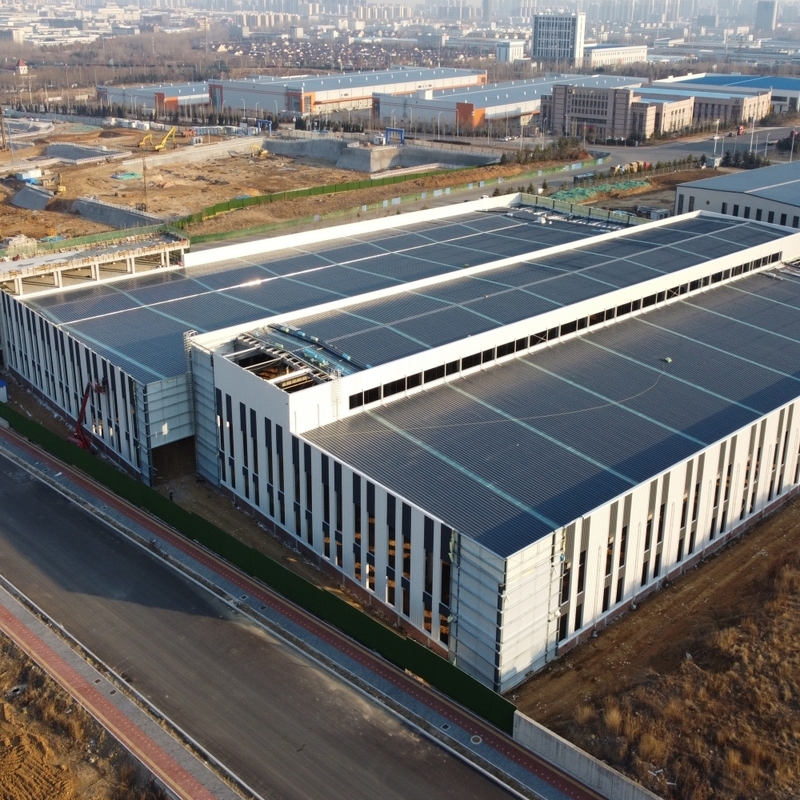

Multi Span Steel Structure Warehouse with Painted Surface 4
Packaging & Shipping

All components are packed for ocean transportation in 40'HQ containers. Our skilled workers handle loading using cranes and forklifts to prevent damage during transit.

Multi Span Steel Structure Warehouse with Painted Surface 5
