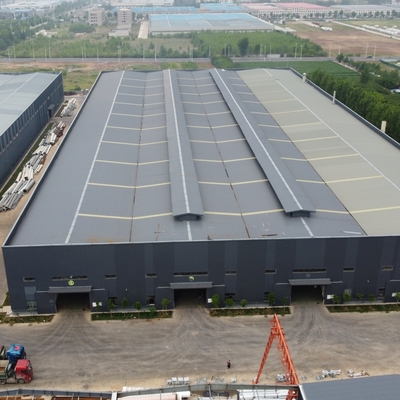

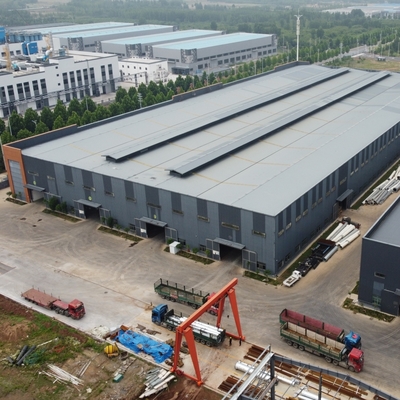

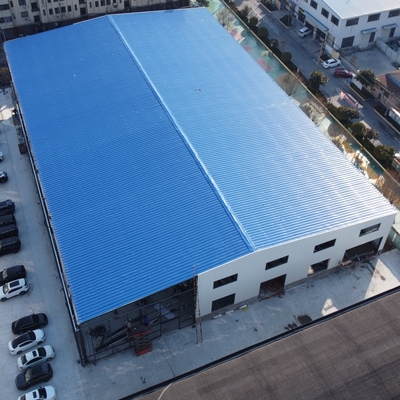

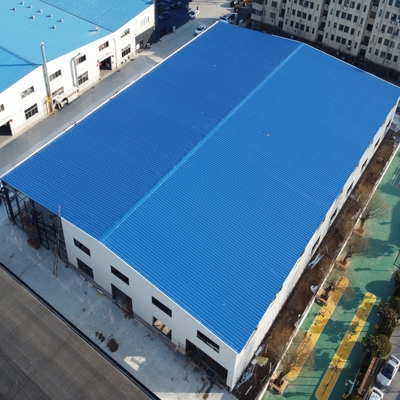

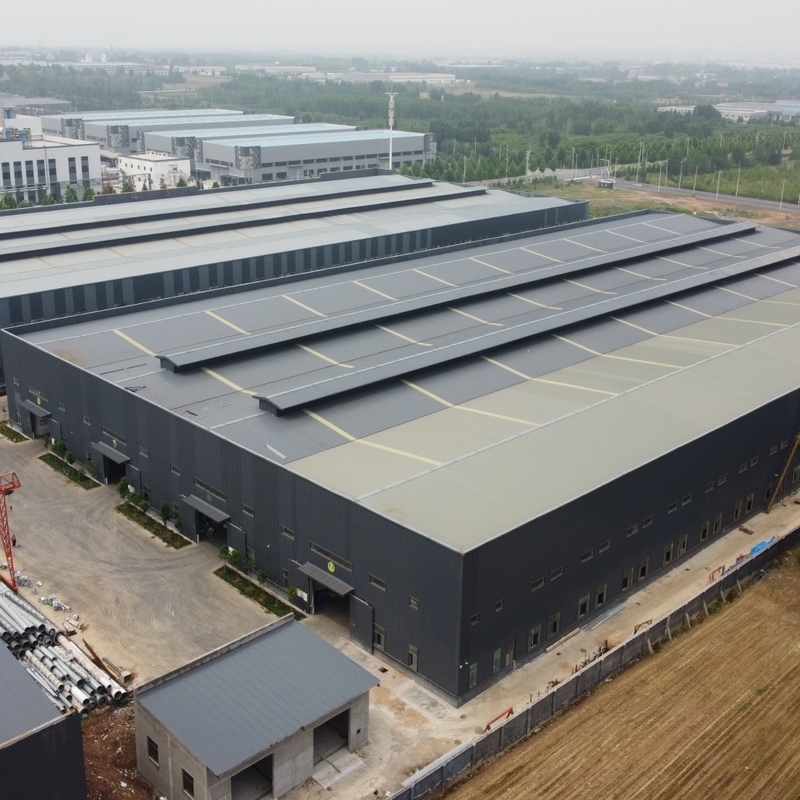

Prefabricated Steel Warehouse Building for Food Factory

This prefabricated steel structure warehouse building features a main steel frame structure composed of welded H-section steel beams and columns, specifically designed for food warehouse applications.

Prefabricated steel structure buildings are widely used for warehouses, factories, workshops, greenhouses, garages, hangars, office buildings, bridges, stadiums and other structures. The system consists of main steel frames connecting H-shaped, Z-shaped and U-shaped steel components, with roofs and walls composed of various panels, windows, and doors.

Our specialized steel structure engineering department and R&D team have established a comprehensive design, optimization, and detailing system. This ensures structural reliability and economy while optimizing the selection and combination of traditional and innovative building envelope materials.

• Raw material quality control
• Thickness tolerance <0.25mm
• Yield and tension strength testing in-house
• Third party inspection certificate
• Supply traceable mill certificate

• 100% testing dimension tolerance <1mm
• 20% sample welding line ultrasonic testing, no fault, full penetration
• 20% magnetic powder testing, no bubble, no defect, Smooth and Full
• Supply third-party inspection assistance

• Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
• Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM

All structural components, panels, bolts and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers.

Products are loaded at our factory by skilled workers using cranes and forklifts to prevent damage during handling.
