Product Details:
|
Features: | Warehouse | Application: | Prefab Steel Structure Building |
---|---|---|---|
Type: | Light Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
Surface Treatment: | Painting Or Hot-dip Galvanize | Service Life: | 50 Years |
Wall And Roof: | Glass Wool | Working Scope: | Design,Fabrication, Installation |
Highlight: | Steel Structure Roller Skating Rink,Prefab Steel Roller Skating Rink,Skating Rink Prefab Steel Structure Building |
Attribute | Value |
---|---|
Application | Prefab Steel Structure Building |
Features | Warehouse |
Type | Light steel structure warehouse |
Raw steel material | Q235B, Q355B |
Surface treatment | Painting or Hot-dip Galvanize |
Service life | 50 Years |
Wall and Roof | Glass wool |
Working scope | Design, Fabrication, Installation |

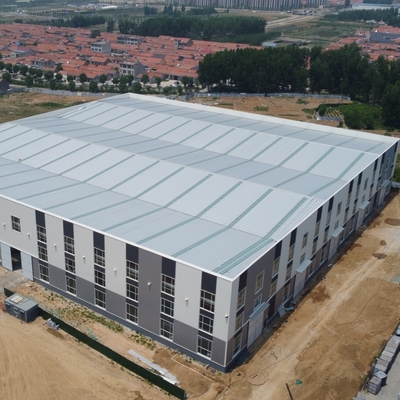

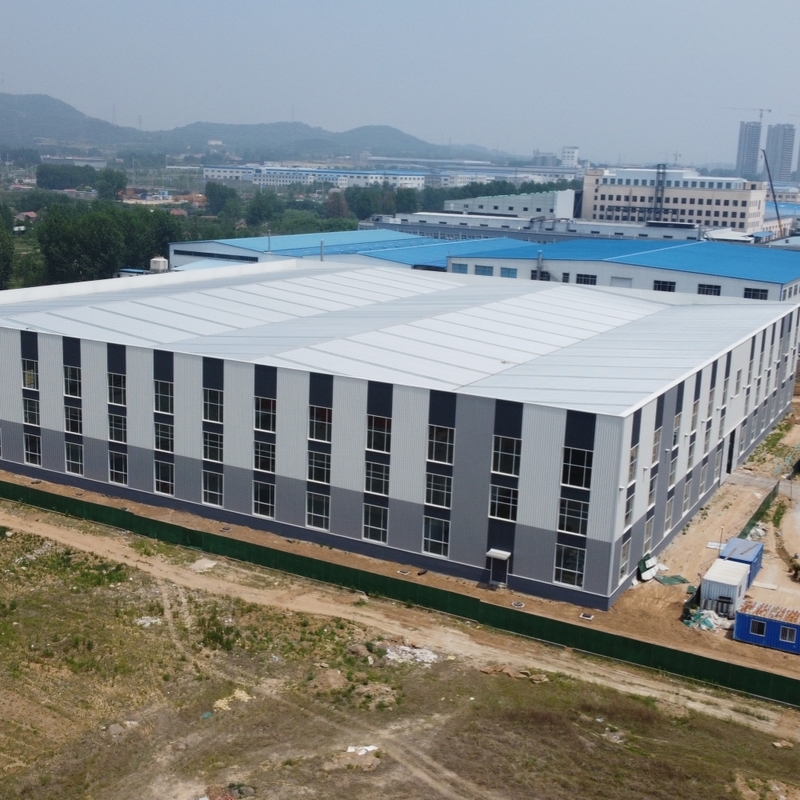

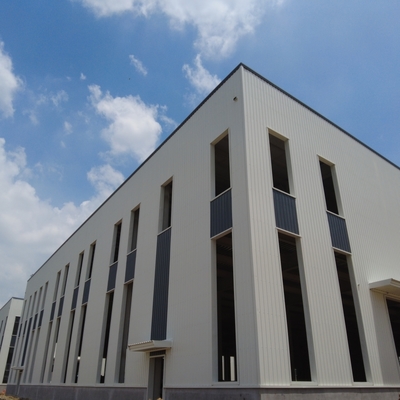

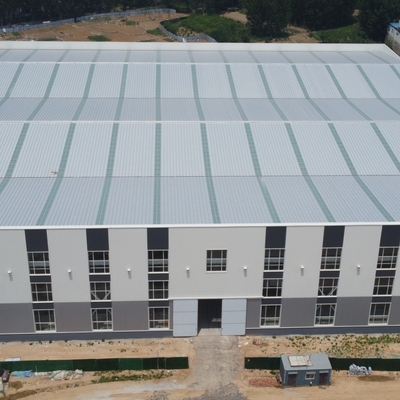

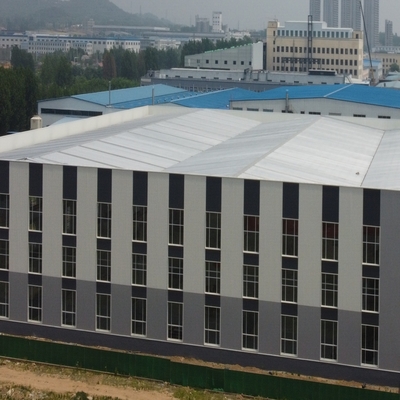

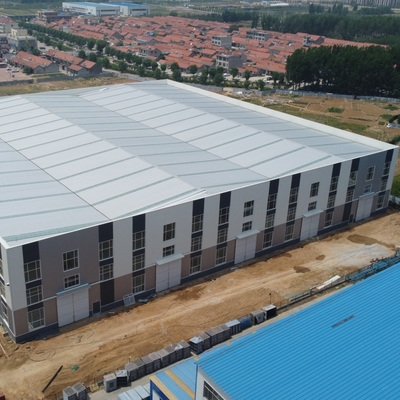

Prefabricated steel structure facilities feature simple production processes suitable for large-scale, factory-based intensive production. These structures offer quick on-site installation with short construction periods, low maintenance costs, and flexible assembly for easy transportation. The panel paint and enclosure materials come in a wide range of colors to coordinate with surrounding environments, while the carbon steel panels provide excellent impact resistance and durability.
We provide comprehensive services including design, fabrication of all steel structure components, roof & wall insulation materials, and professional installation.
Structure Type | Portal frame, single ridge, double span |
Length | 150m |
Width | 60m |
Eave Height | 9m |
Roof Slope | 10% |
Gable Wall Column Spacing | 7.5m |
Roof | 75 mm PU sandwich panel |
Wall | 75 mm PU sandwich panel |
Door | Sliding door |
Window | Ribbon Skylight |
Height difference between indoor and outdoor | 300mm |
Main structure | H section steel Q355, alkyd painting, two primary painting, two finish painting |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
We provide detailed installation drawings and can dispatch our engineers to guide on-site installation.
All structural components, panels, bolts, and accessories are packed in standard ocean transportation packages and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
