Product Details:
|
| Features: | Warehouse Builders | Application: | Structural Steel Buildings Construction |
|---|---|---|---|
| Type: | Light Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Glass Wool | Working Scope: | Design,Fabrication, Installation |
| High Light: | Prefabricated Structural Steel Buildings,Galvanized Structural Steel Buildings,Galvanized prefab steel structures |
||

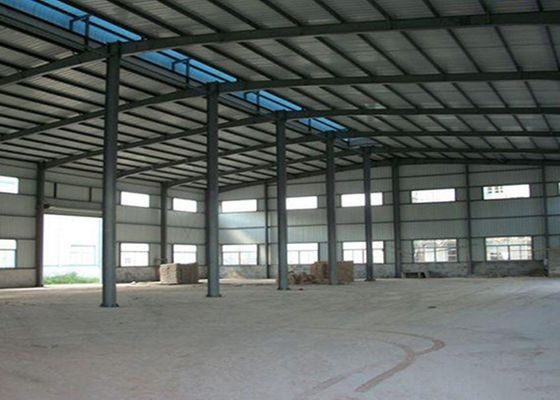

Prefabricated Structural Steel Buildings Construction Warehouse
Prefabricated steel structure buildings are featured with high fire resistance,strong anti-corrosion ability. Steel structure warehouse mainly refers to the main bearing steel components including steel column,steel beam,steel structure,steel roof truss and all the parts with the welding ,bolt or rivet connection.
The roof and the wall panel can be made from composite panel or single sheet. The galvanized metal panel can prevent the rust and corrosion. The self-drilling bolts can make the connection between the panels tighter and prevent the leakage.The composite infill panel assembly can also be used for the roof and wall panel.The polystyrene,glass fiber,rock wool, polyurethane sandwich panel are all available.
The steel structure wall can also be supported by the brick wall. The applicable area include the large work plant or warehouse,super market,entertainment center and modular steel structure garage.
| Main Steel Frame System | |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | 75 mm PU sandwich panel |
| Wall panel | 75 mm PU sandwich panel |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
|
Advantages |
1. Low cost and short construction period. |
| 2. Easy to assemble and disassemble with simple and common tools. | |
| 3. High Durability and Easy to maintain. Could be used for over 50 years. | |
| 4. Light weight, convenient for shipment and transportation. | |
| 5. Good waterproof performance without extra facilities. | |
| 6. Good fireproof performance with rock wool sandwich panel. | |
| 7. Good performance of heat-insulation. | |
| 8. Beautiful appearance, various colors and shapes for outer and inner roof panel and wall panel. | |
| 9. Various designs available, customized designs acceptable. | |
|
Application field |
Warehouse, Workshop, Plant, Farm, Carport, Metal shed, Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Showroom, Villa, Logistic Building , Sports Building and so on. |
