Large Span Prefabricated Steel Warehouse with Galvanized Structure

Large Span Prefabricated Steel Warehouse with Galvanized Structure
Large Span Prefabricated Steel Warehouse with Galvanized Structure
Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure Large Span Prefabricated Steel Warehouse with Galvanized Structure

Large Image :  Large Span Prefabricated Steel Warehouse with Galvanized Structure

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0268
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Large Span Prefabricated Steel Warehouse with Galvanized Structure

Description
Features: Galvanized Metal Buildings Application: Large Span Prefabricated Steel Structure Warehouse
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Or Hot-dip Galvanize Working Scope: Design,Fabrication, Installation
Highlight:

Large Span Prefabricated Steel Structure Warehouse

,

Q235B Prefabricated Steel Structure Warehouse

,

Large Span Steel Structure Buildings

Large Span Prefabricated Steel Structure Warehouse
Product Specifications
Application Large Span Prefabricated Steel Structure Warehouse
Features Galvanized Metal Buildings
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock Wool
Surface treatment Painting or Hot-dip Galvanize
Working scope Design, Fabrication, Installation
Product Overview

Our prefabricated steel structure warehouse is a modern building system using H-beam as the load-bearing structure, with C/Z type purlins and supports as connectors. The roofing and walls are enclosed with colored pressure steel plates, offering superior characteristics compared to traditional construction.

Key Advantages
  • Versatile applications: Suitable for factories, warehouses, offices, stadiums, and hangars in both single and multi-story configurations
  • Rapid construction: Prefabricated components enable fast assembly (6000m² in just 40 days)
  • Durable performance: Computer-designed structures withstand harsh weather with minimal maintenance
  • Aesthetic flexibility: Modern design with multiple color options for wall panels
  • Cost-effective: Lightweight structure reduces foundation costs with faster ROI than concrete buildings
Construction Materials
1 Main Pillar & Beams Q345B
2 Roof Purlins C200*70*20*2.5 Galvanize
3 Tie Bar Φ114*4
4 Pillar Supporters Φ20
5 Tie rod Φ12,Φ32*2.5
6 Kneebracing L50*4
7 Foundation bolt M24
8 General Bolts C Grade
9 Bolt screw Φ19
10 High Strengthened Bolts 10.9 Grade
11 Roof Panel 0.5mm Galvanized Steel Plate
12 Ribbon skylight 1.2mm FRP
13 Floor Steel deck 1.00 mm steel plate
14 Doors Sliding door
15 Windows Steel windows
16 Gutters 3mm thick galvanized steel
17 Edge and corner wrapping 0.5mm Galvanized Steel Plate
20 Down pipe Φ140PVC

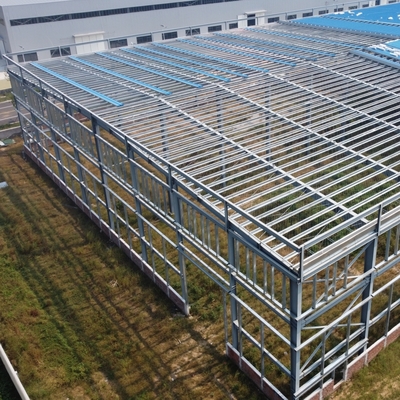

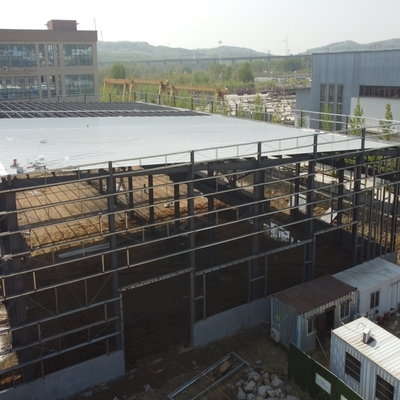

Installation Process
Large Span Prefabricated Steel Warehouse with Galvanized Structure 0 Large Span Prefabricated Steel Warehouse with Galvanized Structure 1 Large Span Prefabricated Steel Warehouse with Galvanized Structure 2
Frequently Asked Questions
Are you a manufacturer or trading company?

We are a manufacturer and welcome visits to our facility. Our quality control processes and professional team ensure competitive pricing and product quality.

How does your pricing compare to competitors?

We offer the best price for equivalent quality and the best quality at comparable prices, working to reduce your costs while delivering premium products.

Do you provide installation services?

We supply detailed installation drawings and can provide engineers or complete installation teams upon request.

Do you accept quality inspections?

We welcome inspectors at any production stage, including container loading.

Do you offer design services?

Yes, we provide complete design solutions using AutoCAD, PKPM, Tekla Structures, and other professional software for complex industrial buildings.

What is your typical delivery time?

Delivery time depends on order quantity, typically 40 days to nearest Chinese seaport after deposit receipt.

How can I request a quotation?

Contact us via email, phone, Alibaba, WhatsApp, Skype, or Viber - we respond within 8 hours.
