|Features:||Galvanized Metal Buildings||Application:||Light Steel Structure Warehouse|
|Type:||Steel Structure Warehouse||Working Scope:||Design,Fabrication, Installation|
|Raw Steel Material:||Q235B, Q355B, ASTM A36||Service Life:||50 Years|
|Wall And Roof:||Steel Cladding Sheet||Surface Treatment:||Painting|

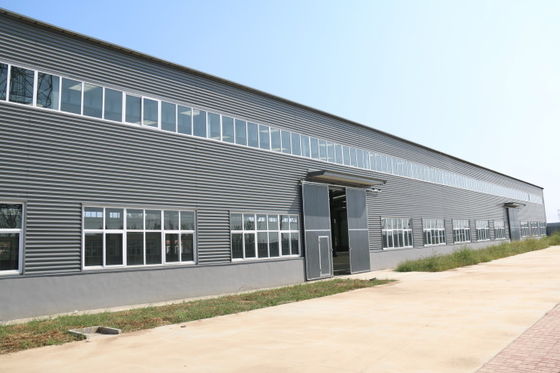

Q346B Steel Construction Warehouse,
FRP 1.5mm Steel Construction Warehouse,
SGS Steel Warehouse Buildings
Industrial Prefabricated Steel Warehouse Buildings
Product Type: Steel Structure Warehouse
The reason why steel structure houses are becoming more and more popular?
1. Light weight, greater resistance to earthquakes and strong winds
2. Low maintenance costs and high-quality materials such as galvanized steel can achieve sustainability and lower life cycle costs
3. Modularity and error-free prefabrication shorten the construction period of building components
4. Realize environmental friendliness due to reusable steel parts and reduce waste by efficiently using materials in the factory
5. Repositionable, replaceable and load-bearing walls and the functions provided by the effective use of space
Steel structure building application field
Steel structure buildings are widely used in the construction of buildings, such as warehouses, workshops,
And large factories. Hangar/garage/chicken shed, exhibition hall, agricultural warehouse, logistics center, etc.
|Item name||Specification||Material Parameter||Technical Treatment|
|Column||H shape,Box,steel pipe,Hot rolled sheet||Q235B,Q345B||Paint or Hot dip galvanized|
|Beam||H shape,steel Truss,Hot rolled sheet||Q235B,Q345B||Paint or Hot dip galvanized|
|Bracing||Steel rod,Steel pipe,Angle steel||Q235B,Q345B|
|Purling||C or Z shape, purling Thickness:1.8mm~3.0mm||Q235B,Q346B||Hot dip galvanized|
|Wall and roof panel||EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet.||Steel T=0.426~0.8mm,insulation T=50~150mm||Alu-zinc 150g, Fluorocarbon paint|
|Door||Sliding or rolling door||Steel or Aluminum sheet,T=1.0~1.5mm||Paint or Hot dip galvanized|
|Lighting panel||FRP, T=1.5mm or T=1.8mm||Coefficient of thermal expansion:2.2x10-5/cm/cm/℃||Light transmittance 85%|
|Ventilator||Turbine ventilator, and electric type||Steel,stainless steel,PC||Paint or Hot dip galvanized,304|
|Gutter||Galvanized or stainless steel plate||T=2.0mm||Hot dip galvanized,304|
|Downpipe||PVC pipe,Color steel pipe T=0.5mm||Φ110,160,200||Paint|
|Bolt||Ordinary, high strength||10.9S,4.8s||Hot dip galvanized|
|Anchor bolt||Steel rod M24,M27 M30||Q235B|
1. Low maintenance cost
2. Environmental protection and recyclable.
3. Flexibility when fixing doors, windows and indoor partitions
4. The steel structure construction is firm, durable and stable.
5. Steel parts are resistant to termites and other destructive insects.
6. The service life exceeds 50 years
7. Fast construction speed, convenient installation and convenient transportation.
steel structure production procedure:
Design: The design will be made with full design parameters provided by clients;
Material: Raw material will be prepared according to the material list provided by engineers;
Cutting: Steel plate will be cut according to the detailed drawing provided by engineers;
Assembling: Apply spot welding to assemble two pieces flange plate and one web plate together;
Auto welding: Arc-submerging machine will be applied to make full welding for steel components;
Straightening: To make the deformation of flange and web plate to flat;
Manual welding: Welding the connection plate and purlin plate to the main steel components;
Shot blasting: To get rid of rust on the surface of steel components;
Painting: Antiseptic treatment;
Delivery: Packing, loading and deliver to construction site;
Erection: Erect according to the erection drawing provided by engineers;
Finishing: Whole project completed.
