Prefab Steel Warehouse Building with Painted Surface Q235B Q355B

Prefab Steel Warehouse Building with Painted Surface Q235B Q355B
Prefab Steel Warehouse Building with Painted Surface Q235B Q355B
Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B Prefab Steel Warehouse Building with Painted Surface Q235B Q355B

Large Image :  Prefab Steel Warehouse Building with Painted Surface Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0227
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Packaging Details: As request
Delivery Time: 15 ~ 20 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Warehouse Building with Painted Surface Q235B Q355B

Description
Features: Commercial Metal Buildings Application: Commercial Prefab Steel Warehouse Buildings
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

steel structure building

,

metal warehouse construction

,

Q235B Prefab Steel Structure Warehouse

Prefab Steel Structure Warehouse / Commercial Metal Buildings Painting Surface
Product Specifications
Attribute Value
Application Commercial Prefab Steel Warehouse Buildings
Features Commercial Metal Buildings
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Working scope Design, Fabrication, Installation
Commercial Prefab Steel Warehouse Buildings

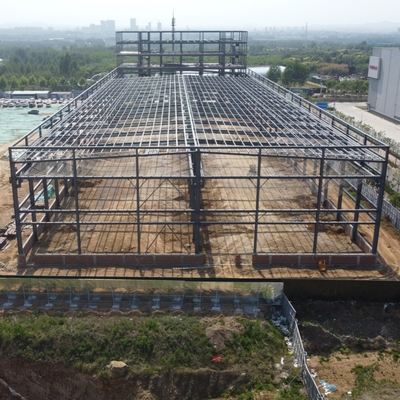

Our commercial prefab steel warehouse buildings feature H-section steel main frames with two spans. All components are factory-made, offering superior homogeneity, faster construction, better seismic resistance, and higher recovery rates compared to traditional reinforced concrete structures. Steel's high strength-to-weight ratio allows for lighter members under equivalent load conditions.
Advantages of Prefab Steel Structure Buildings
  • Superior space utilization with flexible partitioning options, increasing usable area by approximately 6%
  • Energy-efficient construction with C-shaped steel and sandwich panels providing excellent thermal insulation (50% energy saving) and shock resistance
  • Exceptional earthquake and typhoon resistance due to steel's superior ductility and deformation capacity
  • Lightweight construction (about half of concrete structures) reducing foundation costs
  • Fast construction - 1,000m² building can be completed in 20 days with 5 workers
  • Eco-friendly materials with 100% recyclable or degradable components
  • Customizable large open spaces to meet diverse user requirements
  • Industrialized production process integrating energy-saving, waterproofing, and thermal solutions
Steel Structure Material Specifications
Main Parts Item Name Specification
Main Steel Frame Steel Column Q235B, Q345B
H shape, Box, Steel pipe, Hot rolled sheet
Steel Beam Q235B, Q345B
H shape, Steel Truss, Hot rolled sheet
Brace Q235B, Q345B
Steel rod, Steel pipe, Angle steel
Roof Purlin C or Z shape, Steel purlin
Supporting System Wall Purlin Q235B, Q345B
C or Z shape, Steel purlin
Roof/Wall Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.
Accessories Bolts Ordinary, High strength
Gutter Galvanized Steel plate, Stainless steel
Windows Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
Doors Sliding or Rolling door
Downpipes PVC pipe, Color steel pipe
Edge Cover Made of color steel sheet thickness 0.5mm
Ventilator Stainless steel
Crane Crane in 5 tons to 30 tons
Our Steel Structure Factory
Prefab Steel Warehouse Building with Painted Surface Q235B Q355B 0
Service Scope
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication and installation of prefabricated steel buildings
  • Detailed fabrication drawings based on your architectural plans
  • Professional engineering consulting services
Prefab Steel Warehouse Building with Painted Surface Q235B Q355B 1
Packing and Transport
All structural components, panels, bolts and accessories are packed to withstand ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to load goods carefully at our factory to prevent damage during transit.
Prefab Steel Warehouse Building with Painted Surface Q235B Q355B 2
