Product Details:
|
Features: | Structural Steel Fabricators | Application: | Builders Warehouse, Metal Buildings |
---|---|---|---|
Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
Service Life: | 50 Years | Wall And Roof: | Steel Cladding Sheet |
Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
Highlight: | steel structure building,metal warehouse construction,Q235B Metal Warehouse Buildings |
Application | Builders Warehouse, Metal Buildings |
Features | Structural Steel Fabricators |
Type | Steel Structure Warehouse |
Raw steel material | Q235B, Q355B, ASTM A36 |
Service life | 50 Years |
Wall and Roof | Steel cladding sheet |
Surface treatment | Painting |
Working scope | Design, Fabrication, Installation |

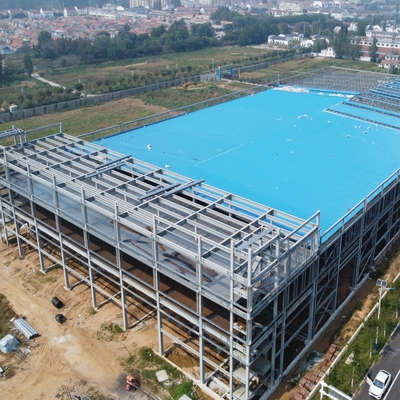

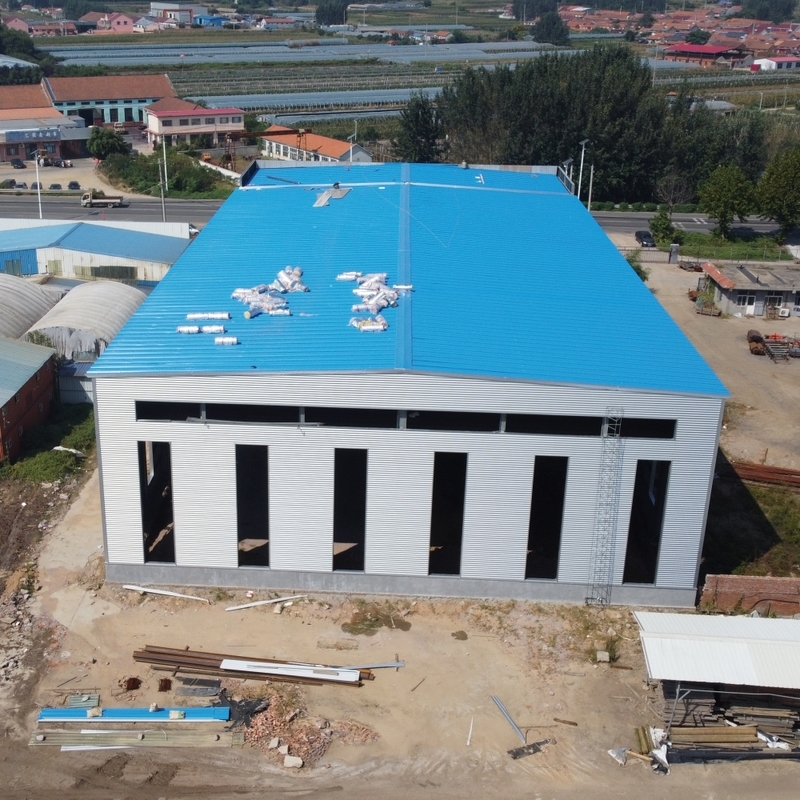

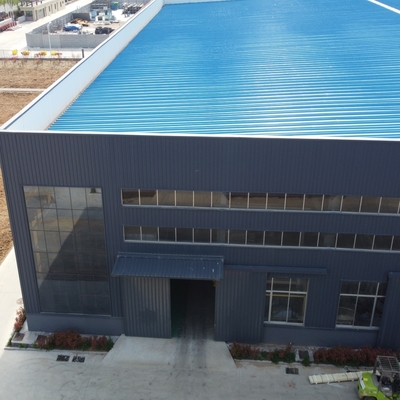

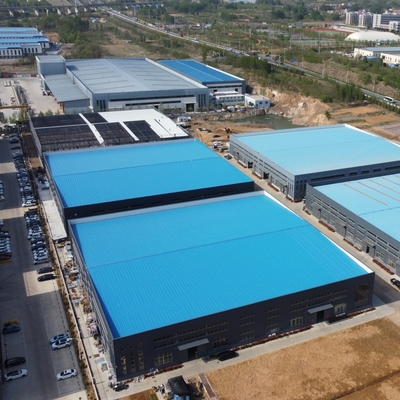

Prefabricated steel structure buildings designed for storage and chemical production in industrial areas. Features portal frame structure with welded H-section steel beams and columns connected by high strength bolts, using EPS sandwich panels for wall and roof insulation.
Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
Welding | Automatic submerged arc welding |
Rust removal | Sand blasting |
Surface finish | Alkyd paint or galvanized |
Intensive bolt | M20, Grade 10.9 |
Supporting System | Angle brace: L50x4, Steel Q235, processed and painted Horizontal brace: Φ20, Steel Q235, processed and painted Column brace: Φ20, Steel Q235, processed and painted Tie rod: Φ89*3, Steel Q235, processed and painted |
Ordinary bolt | M12 Galvanized bolt |
Roof | Purlin: C160*60*2.5, Steel Q235, galvanized and painted Roof panel: Sandwich panel or corrugated steel sheet Sky light: 6mm thick PVC Accessories: Glass cement, self-tapping screws, etc. Edge cover: 0.4mm steel sheet profile trimming Gutter: 0.4mm thick sheet steel profile or galvanized sheet Down pie: Φ110PVC |
Walls | Purlin: C160*60*2.5, Steel Q235, painted Wall: Sandwich panel or corrugated steel plate Accessories: Glass cement, self-tapping screws, etc. Edge cover: 0.4mm steel sheet profile trimming Ventilation: Ventilation ball Doors & windows: Rolling door/sliding door PVC/alu/steel/window |
Our 35,000㎡ fabrication facility includes a 20,000㎡ workshop area with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines equipped with advanced technology including plasma cutting machines.
We provide detailed construction drawings for each project and can dispatch engineers to guide installation or send our construction team for on-site assembly.
