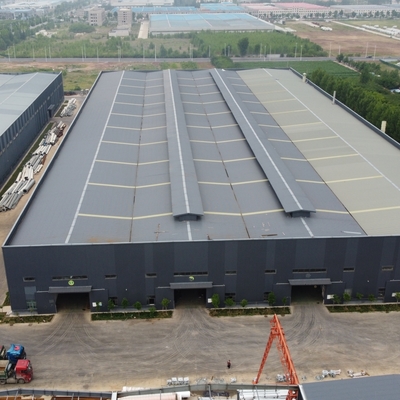

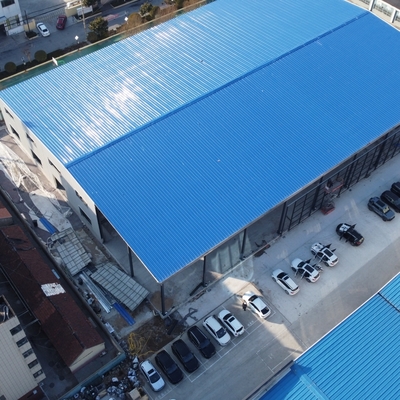

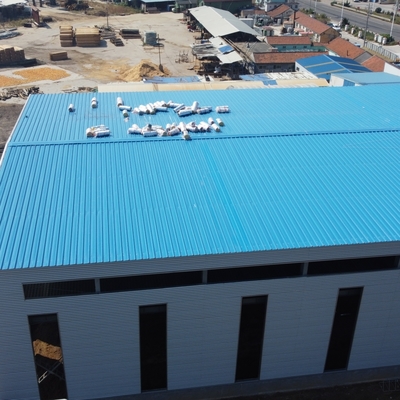

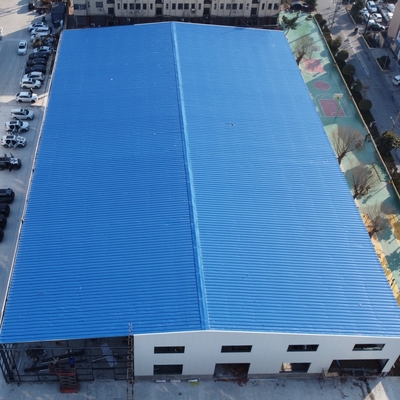

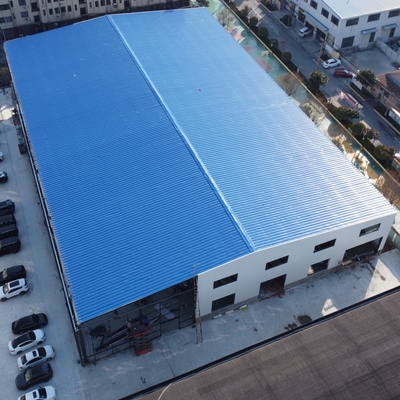

H Section Steel Structure Warehouse Portal Frame Q235B Q355B

H Section Steel Structure Warehouse Portal Frame Q235B Q355B
H Section Steel Structure Warehouse Portal Frame Q235B Q355B
H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B H Section Steel Structure Warehouse Portal Frame Q235B Q355B

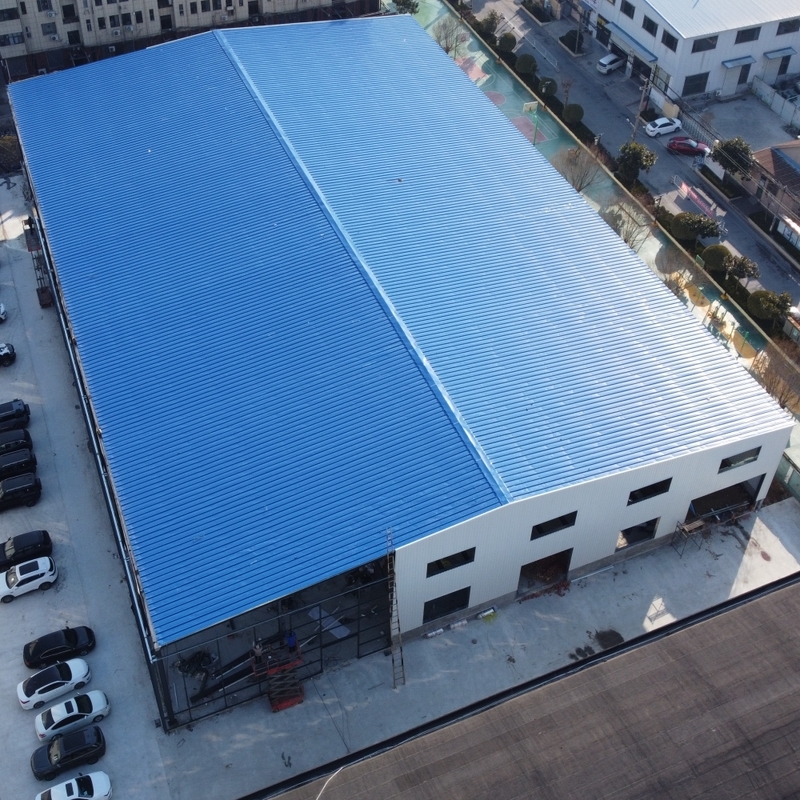

Large Image :  H Section Steel Structure Warehouse Portal Frame Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0212
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

H Section Steel Structure Warehouse Portal Frame Q235B Q355B

Description
Features: Lightweight Steel Structures Application: Portal Frame Steel Structure Warehouse
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B,ASTM A36
Surface Treatment: Painting Or Hot-dip Galvanize Wall And Roof: Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel
Columns And Beam: H Section Column&Beam Installation: Engineer Guidance On Site
Highlight:

steel structure building

,

metal storage buildings

,

H Section Column Lightweight Steel Structure

H Section Column Lightweight Steel Structure Clean Span Portal Frame Corrosion Resistance
Product Specifications
Attribute Value
Application Portal Frame Steel Structure Warehouse
Features Lightweight Steel Structures
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam H Section Column & Beam
Installation Engineer guidance on site

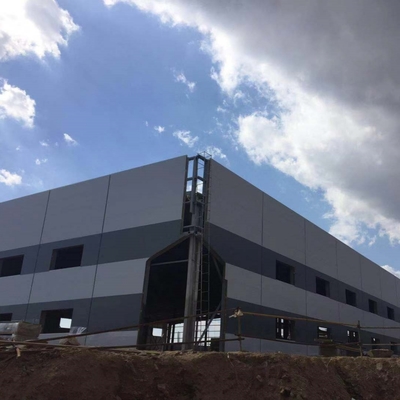

Clean Span Portal Frame Steel Structure Warehouse
Our lightweight steel structure warehouses feature primary load-bearing components made of steel, including steel columns, beams, foundations, and roof trusses. For spans up to 36 meters, we typically use hot-rolled or welded H-beams for columns and beams.
Key Advantages
  • Pre-embedded parts for structural stability
  • Lightweight construction with high strength-to-weight ratio and large span capability
  • Reduced construction time lowers overall investment costs
  • Excellent fire resistance and corrosion protection
  • Eco-friendly design allows for easy relocation and recycling
  • Cost-effective solution for various applications
  • Versatile use in factories, warehouses, commercial spaces, and recreational facilities
Primary Construction Materials
Component Specification
Steel Frame H section steel | Q235/Q345 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace: Φ20, Steel Q235, processed and painted
Column brace: Φ20, Steel Q235, processed and painted
Tie rod: Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof System Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Roof panel: Sandwich panel or corrugated steel sheet
Skylight: 6mm thick PVC
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Gutter: 0.4mm thick sheet steel profile or galvanized sheet
Down pipe: Φ110PVC
Walls Purlin: C160*60*2.5, Steel Q235, painted
Wall: Sandwich panel or corrugated steel plate
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Ventilation: Ventilation ball
Doors & Windows Rolling door/sliding door PVC/alu/steel/window
Manufacturing Capabilities
Our 35,000㎡ steel structure fabrication facility includes 20,000㎡ of workshop space equipped with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced profiling equipment including plasma cutting machines.
H Section Steel Structure Warehouse Portal Frame Q235B Q355B 0
Packaging & Shipping
All structural components, panels, bolts, and accessories are carefully packed in standard ocean transportation packaging and loaded into 40' HQ containers for secure international shipping.
H Section Steel Structure Warehouse Portal Frame Q235B Q355B 1
