Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings

Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings
Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings

Large Image :  Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0164
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings

Description
Features: Truss Roof Metal Storage Buildings Application: Light Span Steel Structures
Type: Prefab Steel Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
High Light:

steel structure building

,

metal warehouse construction

,

Truss Roof Metal Storage Buildings



Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings



Project information:

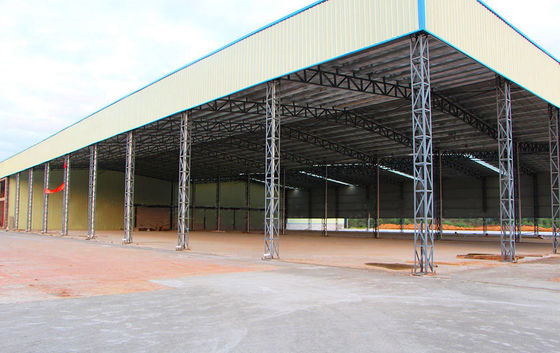

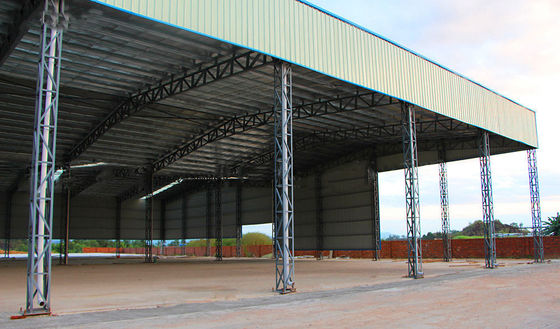

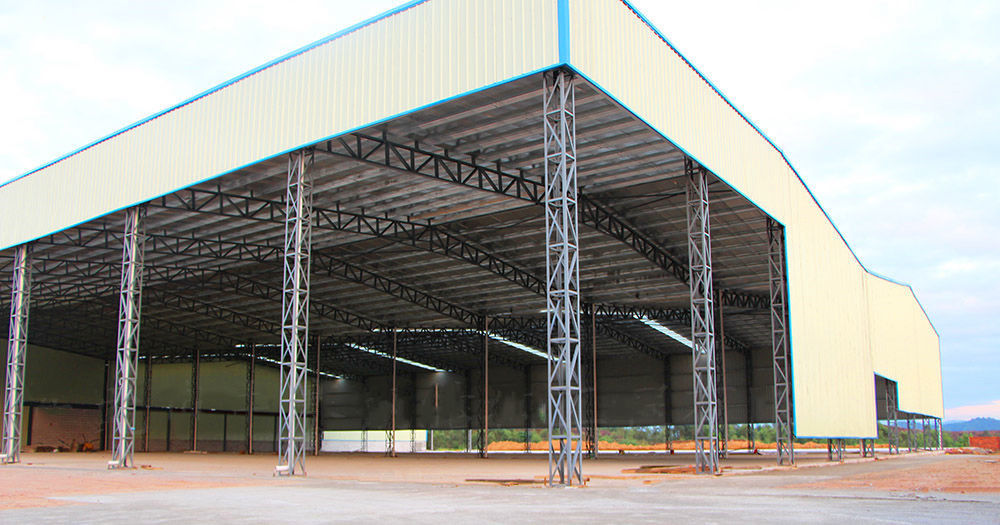

Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings. This is a Truss Roof Metal Storage Buildings that is used to park engineering vehicle and store goods. Light steel columns and truss beam are connected by high strength bolts to be the main steel frame structure.  It could provide large inside space, and is easy to install.



We are one professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.

Material list and technical parameters:



Steel Frame H section steel Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window



Our advantage:



1 Professional design team We could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2 Skilled fabrication team and advanced equipment We make the independent production schedule to each project. Our engineers will introduce and train workers for each project before fabrication works start.
3 One-stop service Nearly each steel structure project is customized by our clinets’ requirement. We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4 Professional QC team Professional QC team will guarantee that we will provide the production and service as your request.
5 After sales service If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.



Our service:

1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Light Span Steel Structures Warehouse / Truss Roof Metal Storage Buildings 0

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
