Prefab Steel Workshop Building for Auto Repair Shops

Prefab Steel Workshop Building for Auto Repair Shops
Prefab Steel Workshop Building for Auto Repair Shops
Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops Prefab Steel Workshop Building for Auto Repair Shops

Large Image :  Prefab Steel Workshop Building for Auto Repair Shops

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0156
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Workshop Building for Auto Repair Shops

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Type: Steel Frame Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Car Maintenance Shop, Auto Repair Shops
Highlight:

steel frame building

,

prefab metal buildings

Steel Workshop Buildings Metal Garage Construction For Car Repair Shops
Key Specifications
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Type Steel frame structure workshop
Working scope Design, Fabrication, Installation
Application Car Maintenance Shop, Auto Repair Shops
Product Overview

This prefabricated steel workshop building features a welded H-section steel frame structure with high-strength bolt connections. The roof and walls utilize glass wool sandwich panels for superior insulation. Available in clean span or double span configurations, it can include integrated office and storage spaces.

Key Features
  • Wide span capability with large interior space
  • High strength-to-weight ratio
  • Cost-effective construction solution
  • Rapid installation time
  • Excellent thermal insulation properties
  • Superior seismic performance
  • Flexible layout options
Technical Parameters
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Height difference (indoor/outdoor) 300mm
Material Specifications
Main Frame H Steel beam, Q235/Q345 steel H beam and columns, painted or galvanized
Secondary Frame Galvanized C or Z purlin, steel bracing, tie bar, knee brace
Roof & Wall Glass wool sandwich panel, PU sandwich panel, or corrugated steel sheet
Surface Treatment Two layers of rust-proof painting or Hot Dip Galvanized
Production Capabilities

Our factory features three dedicated production lines with advanced equipment including plasma cutting machines for precision steel fabrication.

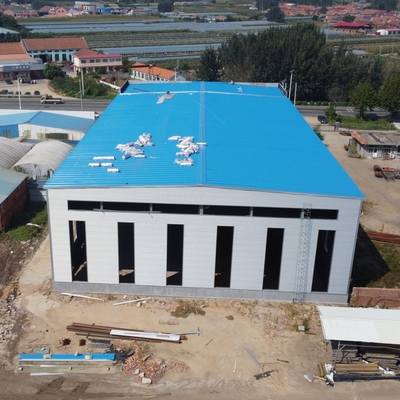

Prefab Steel Workshop Building for Auto Repair Shops 0
Our Services
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation services
  • Engineering drawing development based on your specifications
  • Professional engineering consulting

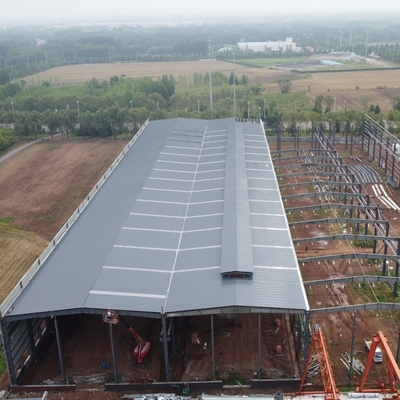

Prefab Steel Workshop Building for Auto Repair Shops 1
Packaging & Shipping

All components are packed for secure ocean transportation in 40'HQ containers, with careful loading by experienced personnel to prevent damage.

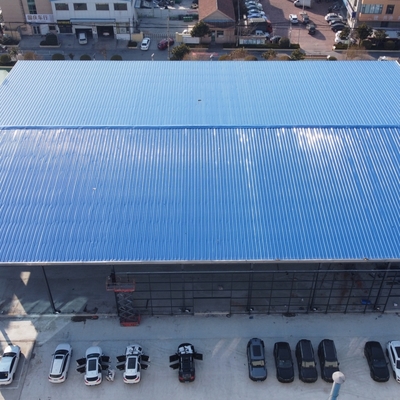

Prefab Steel Workshop Building for Auto Repair Shops 2
