Clean Span Light Steel Frame Workshop for Auto Service Shops

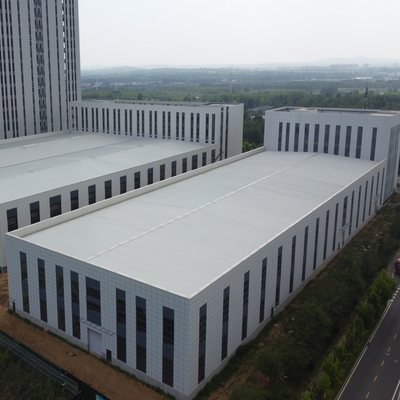

Large Image : Clean Span Light Steel Frame Workshop for Auto Service Shops

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0142

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Clean Span Light Steel Frame Workshop for Auto Service Shops

Description

Features:	Light Steel Frame Structure Workshop	Usage:	Workshop Buildings For Auto Service Shop
Type:	Clean Span Steel Structure Workshop	Surface Treatment:	Painting
Shot Blasting Level:	Sa 2.5	Service Life:	50 Years
Wall And Roof:	Steel Cladding Sheet	Working Scope:	Design,Fabrication, Installation
Highlight:	steel structure building , metal storage buildings

Clean Span Light Steel Frame Structure Workshop Buildings For Auto Service Shop

Product Specifications

Feature	Description
Features	Light Steel Frame Structure Workshop
Usage	Workshop Buildings For Auto Service Shop
Type	Clean Span Steel Structure Workshop
Surface treatment	Painting
Shot blasting level	Sa 2.5
Service life	50 Years
Wall and Roof	Steel cladding sheet
Working scope	Design, Fabrication, Installation

Project Overview

The steel frame structure of this light metal shop buildings features welded H-section steel columns and beams connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels.

Prefab steel frame structure buildings are widely used for factories, warehouses, workshops, office buildings, residence buildings, stadiums and other structures. The building system is formed by the main framework through linking up H beams, columns, and purlins, with roof and wall using various panels together with windows and doors.

Technical Specifications

Parameter	Specification
Structure Type	Gable frame, single ridge, clean span or two spans
Length	40-100m
Width	20-80m
Eave Height	6-15m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof Material	Glass wool sandwich panel
Wall Material	Glass wool sandwich panel
Door Type	Sliding door
Window Type	Ribbon Skylight
Height difference (indoor/outdoor)	300mm

Material Specifications

Component	Material	Specification
Main Steel Frame	Steel Column	Q235B, Q345B H shape, Box, Steel pipe, Hot rolled sheet
	Steel Beam	Q235B, Q345B H shape, Steel Truss, Hot rolled sheet
	Brace/Roof Purlin	Q235B, Q345B Steel rod, Steel pipe, Angle steel C or Z shape, Steel purlin
Supporting System	Wall Purlin	Q235B, Q345B C or Z shape, Steel purlin
Supporting System	Roof/Wall Panels	Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool
Accessories	Bolts	Ordinary, High strength
	Gutter	Galvanized Steel plate, Stainless steel
	Windows	Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
	Doors	Sliding or Rolling door
	Downpipes	PVC pipe, Color steel pipe
	Edge Cover	Made of color steel sheet thickness 0.5mm
	Ventilator	Stainless steel
	Crane	Crane in 5 tons to 30 tons

Manufacturing Capabilities

Our steel structure fabrication factory covers 35,000㎡ with 20,000㎡ workshop area. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various profiling steel sheet machines with advanced equipment including plasma cutting machines.

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Designing, fabrication and installation for Prefabricated steel structure buildings
Deepening or designing fabrication drawings based on your architectural plans
Engineering consulting services

Installation Process

We provide detailed installation drawings for each project. Upon request, we can dispatch our engineers to guide installation or handle the complete installation process.

Quotation Requirements

Please provide the following information for an accurate quote:

1	Location (where will be built?)	_____country, area
2	Size: lengthwidthheight	_____mm_____mm_____mm
3	Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m2, _____mm
5	Anti-earthquake	_____level
6	Brickwall needed or not	If yes, 1.2m high or 1.5m high
7	Thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used
8	Door quantity & size	_____units, _____(width)mm*_____(height)mm
9	Window quantity & size	_____units, _____(width)mm*_____(height)mm
10	Crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
