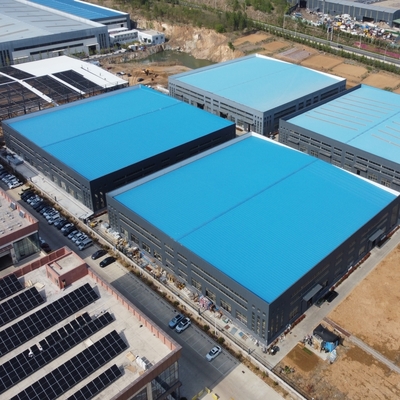

Arch Roof Steel Structure Warehouse with Rock Wool Insulation

Arch Roof Steel Structure Warehouse with Rock Wool Insulation
Arch Roof Steel Structure Warehouse with Rock Wool Insulation
Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation Arch Roof Steel Structure Warehouse with Rock Wool Insulation

Large Image :  Arch Roof Steel Structure Warehouse with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0137
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Arch Roof Steel Structure Warehouse with Rock Wool Insulation

Description
Features: Arch Roof Buildings, Curved Steel Workshop Application: Arch Roof Workshop, Curved Roof Metal Buildings
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

metal warehouse construction

,

metal storage buildings

Arch Roof Workshop Curved Roof Metal Buildings Arc Steel Structure Construction
Product Attributes
Attribute Value
Application Arch Roof Workshop, Curved Roof Metal Buildings
Features Arch Roof Buildings, Curved Steel Workshop
Type Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Project Description
Our Arch Roof Workshop features curved roof metal buildings with arc steel structure construction. Available in two main types: Arch H-section steel and arch tube truss roof. These curved roof metal buildings provide expansive interior space with superior structural stability, ideal for steel structure warehouses, workshops, and sheds.
As a professional steel structure fabrication and construction company, we specialize in both light and heavy steel structure projects. Our comprehensive services include design, fabrication of all steel structure components and insulation panels, as well as on-site installation.

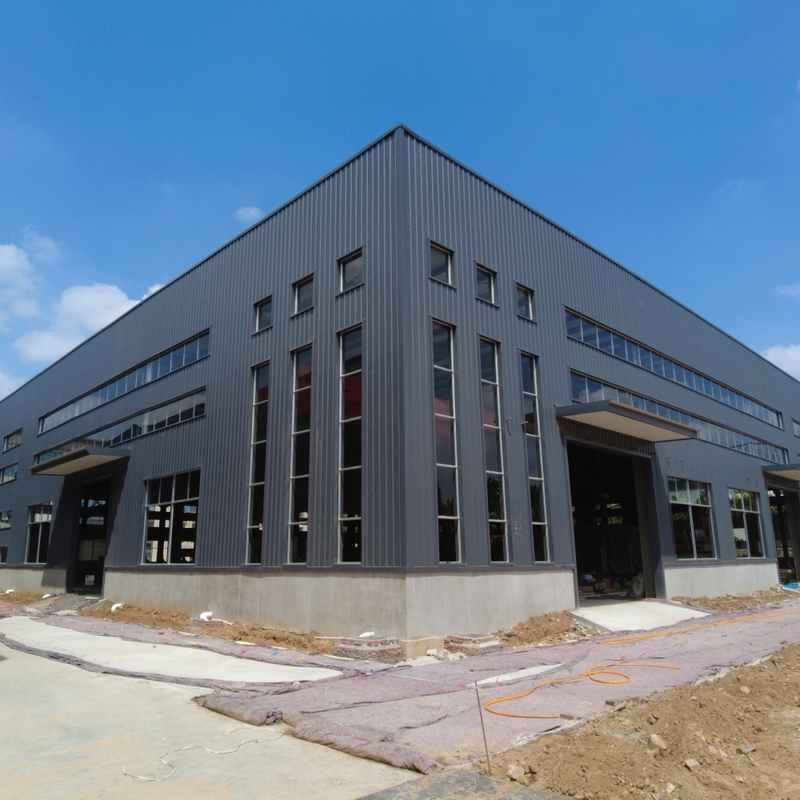

Arch Roof Steel Structure Warehouse with Rock Wool Insulation 0
Steel Structure Specifications
Item name Specification Material Parameter Technical Treatment
Column H section steel Q235B,Q345B Paint or Hot dip galvanized
Beam Curved section steel Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass, Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel, stainless steel, PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe, Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B
Our Steel Structure Fabrication Factory
Our steel structure fabrication facility spans 35,000㎡ with 20,000㎡ of workshop area. Equipped with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines including advanced plasma cutting equipment.

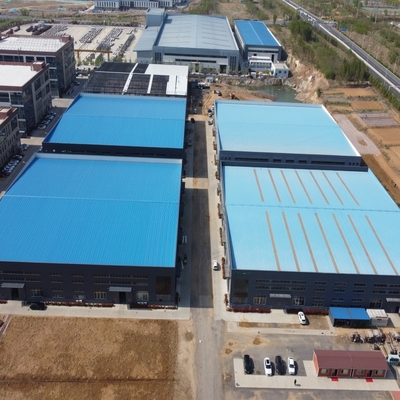

Arch Roof Steel Structure Warehouse with Rock Wool Insulation 1
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for prefabricated steel structure buildings
  • Deepening or designing fabrication/shop drawings based on your architectural and construction drawings
  • Engineering consulting services

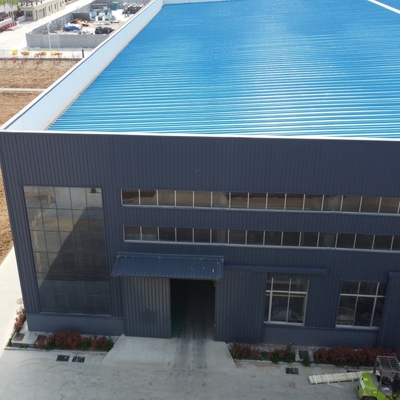

Arch Roof Steel Structure Warehouse with Rock Wool Insulation 2
Packing and Transport
All structural components, panels, bolts, and accessories are packed with standard ocean transportation packaging and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to prevent damage during loading.

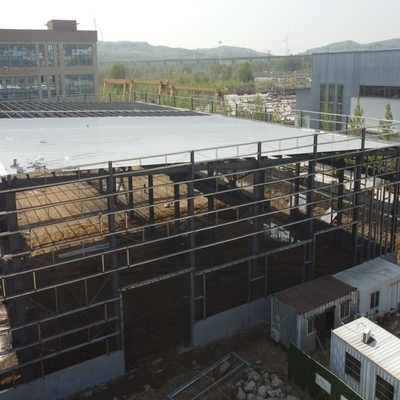

Arch Roof Steel Structure Warehouse with Rock Wool Insulation 3
How to Quote
Please provide the following information for an accurate quote:
Question Details Needed
Location (where will be built?) _____country, area
Size: length*width*height _____mm*_____mm*_____mm
Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
Snow load (max. snow height) _____kn/m2, _____mm
Anti-earthquake _____level
Brickwall needed or not If yes, 1.2m high or 1.5m high
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used (lower cost)
Door quantity & size _____units, _____(width)mm*_____(height)mm
Window quantity & size _____units, _____(width)mm*_____(height)mm
Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m

Tag:

steel structure building,

metal storage buildings,

metal warehouse construction
