Product Details:
|
| Features: | Steel Structure Warehouse | Application: | Prefab Metal Building, Light Steel Framing Structure |
|---|---|---|---|
| Type: | Portal Frame Steel Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Sandwich Panel | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal warehouse construction |
||

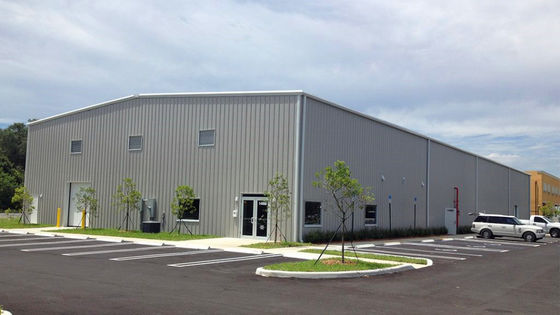

Prefab Steel Structure Warehouse Metal Building Cost Light Steel Framing Structure
Prefab Steel Structure Warehouse Metal Building Cost Light Steel Framing Structure:
1. The steel structural member has a small cross-sectional dimension, which can effectively utilize the building space, reduce the height of the house, and have a beautiful architectural shape.
2. The portal frame has good rigidity and light weight, and the beam and the column can be assembled, which provides favorable conditions for production, transportation and installation.
3. The amount of steel used for roofing frame is only 1/5-1/10 of the amount of steel used for ordinary steel roof trusses, which is an economical and reliable structural form.
| Main steel frame | H-section steel | Q345 steel 8mm to 10mm |
| Welding | Automatic Submerged Arc Welding | |
| Rust removing | Sand blasting | |
| surface processing | Alkyd Paint or galvanized | |
| High strength bolt | Grade 10.9 | |
| Supporting system | Angle brace | L50x4,Steel Q235,Process and painting |
| Cross bracing | dia.20 round bar,Steel Q235, process and painting | |
| Tie bar | dia.89*3 round pipe,Steel Q235 Process and painting | |
| Batter brace | dia.12 round bar,Steel Q235 process and painting | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,steel Q235,Painting or galvanized |
| Out-roof panel | Sandwich panel or corrugated steel plate | |
| Transparent skylight | 6mm thick PVC | |
| Accessories | Sealant,self-tapping screw, etc. | |
| Edge cover | Made of color steel sheet thickness 0.5mm | |
| Gutter | Made of steel sheet thickness 0.8mm, or PVC | |
| Rinspout | dia.110 PVC | |
| Wall | Purlin | C160*60*2.5,steel Q235,paint |
| Wall panel | Sandwich panel or corrugated steel plate | |
| Accessories | Sealant,self-tapping screw etc | |
| Edge cover | Made of color steel sheet thickness 0.5mm | |
| Ventilator | unpowered axial-flow ventilator or monitor roof | |
| Door & window | Rolling door/sliding door, PVC/alu. alloy window | |
| Crane | With or without crane, ranging from 5 tons to 20 tons |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
We will provide construction drawing for each project for installation. Our engineer could guide installation on site or we could install it as your request.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
