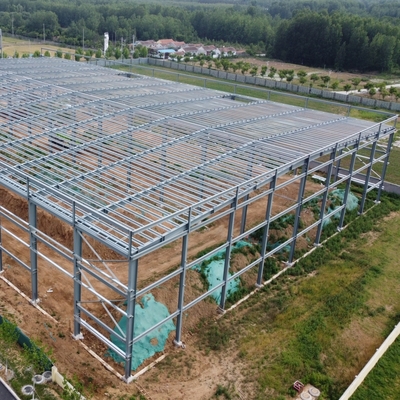

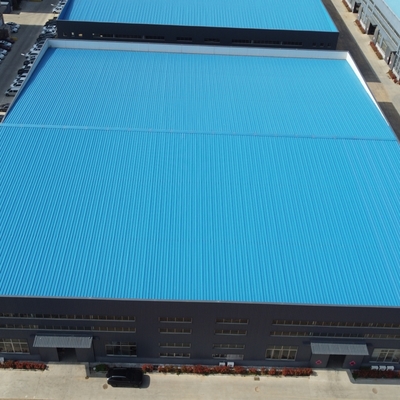

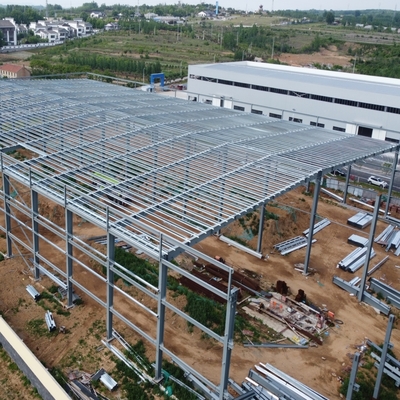

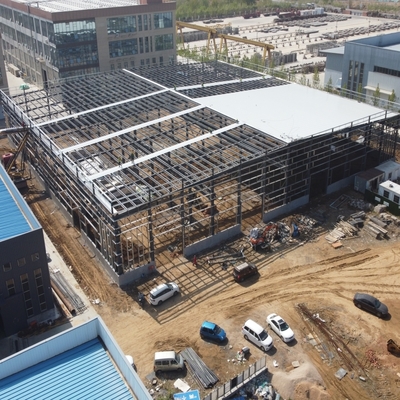

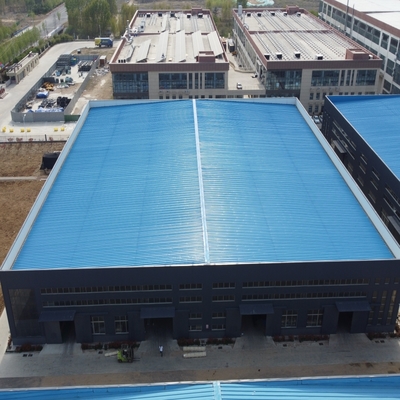

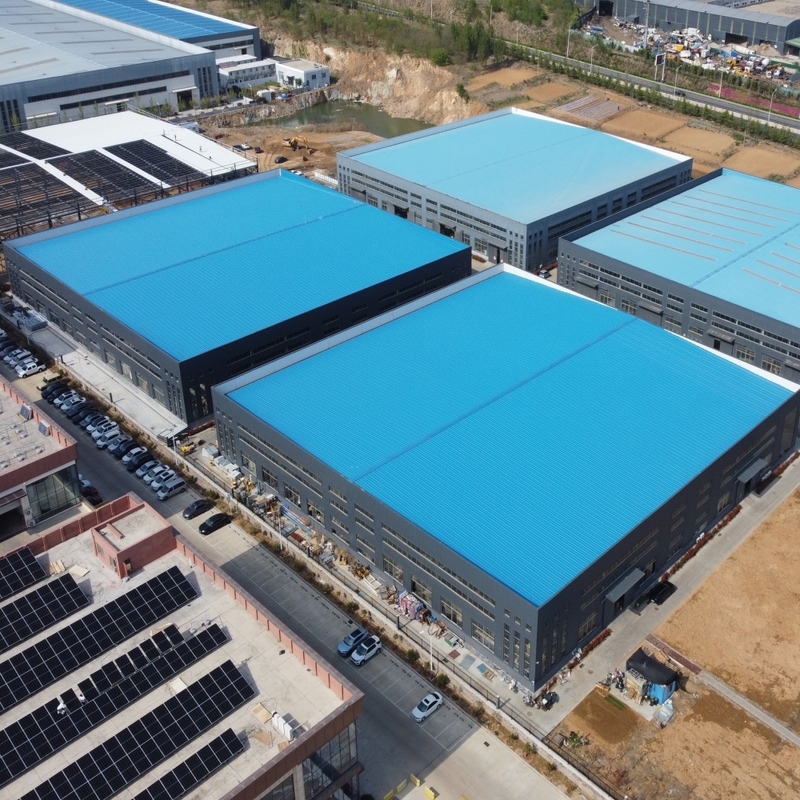

Pre Engineered Steel Structure Warehouse with 50-Year Lifespan

Our Pre Engineered Steel Structure Frame Warehouse and Light Steel Structure Metal Sheds are designed for efficient storage solutions and vehicle parking. These structures offer superior durability and cost-effectiveness compared to traditional construction methods.

• Main structure: H section steel Q355, alkyd painting (two primary coats, two finish coats)
• Roof purlin: XZ160*60*20*2.5, galvanized
• Wall purlin: XZ160*60*20*2.5, galvanized
• Intensive bolt: Grade 10.9
• Turn buckle bolt: M20+2, steel Q235, processed
• Anchor bolt: M24, steel Q235, processed

• Cross brace: Φ20 round steel bar Q235, processed and painted
• Angle brace: L50*5 angle steel Q235, processed and painted
• Column bracing: Φ25 round steel bar Q235, processed and painted
• Tie bar: Φ127*3 steel pipe Q235, processed and painted

• Roof panel: 0.5mm steel cladding sheet
• Wall panel: 0.5mm steel cladding sheet
• Unpowered ventilator: Diameter Φ600, stainless steel
• Sky lighting band: 1.2mm FRP, double layer

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with advanced production lines for H steel, BOX sections, C/Z purlins, and profiling steel sheets. Our capabilities include plasma cutting and other precision manufacturing processes.

• Structural steel fabrication, painting, galvanizing, and pre-assembly
• Complete design, fabrication, and installation of prefabricated steel structures
• Detailed fabrication drawings based on architectural plans
• Professional engineering consulting services

All components are packed to withstand ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading at our factory.
