Steel Structure Helicopter Hangar with Glass Wool Insulation

Steel Structure Helicopter Hangar with Glass Wool Insulation
Steel Structure Helicopter Hangar with Glass Wool Insulation
Steel Structure Helicopter Hangar with Glass Wool Insulation Steel Structure Helicopter Hangar with Glass Wool Insulation Steel Structure Helicopter Hangar with Glass Wool Insulation Steel Structure Helicopter Hangar with Glass Wool Insulation

Large Image :  Steel Structure Helicopter Hangar with Glass Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV
Model Number: Ruly0131
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Helicopter Hangar with Glass Wool Insulation

Description
Application: Steel Structure Helicopter Hangar,Steel Frame Structure Maintenance Workshop Type: Steel Structure Hangar
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

aircraft hangar construction

,

prefabricated aircraft hangars

Steel Structure Helicopter Hangar Construction

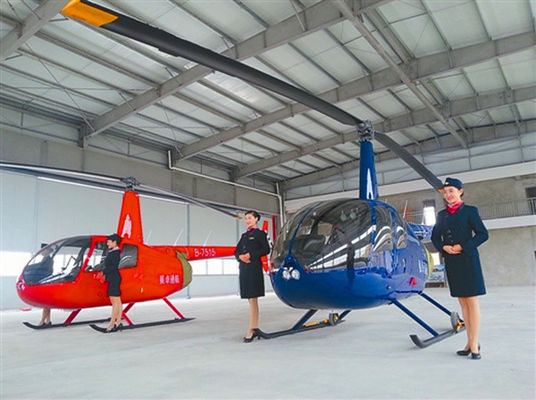

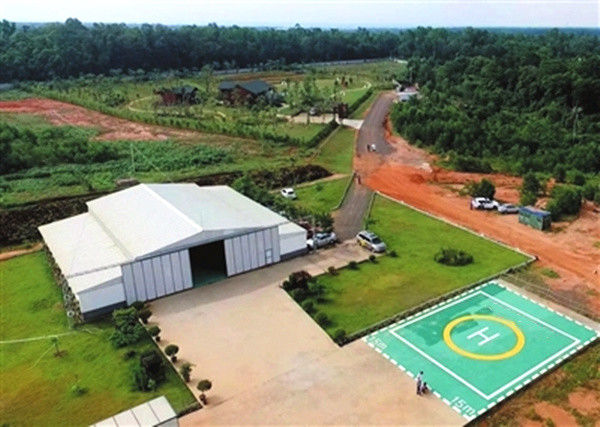

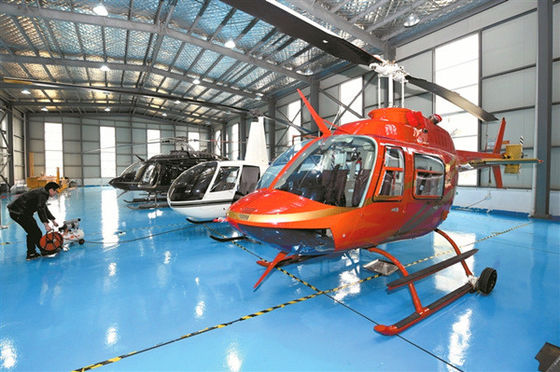

This steel frame structure maintenance workshop is designed for helicopter parking and maintenance. The portal frame structure provides large space and stable construction with welded H-section steel beams and columns connected by high-strength bolts.
Product Specifications
Attribute Value
Application Steel Structure Helicopter Hangar, Steel Frame Structure Maintenance Workshop
Type Steel Structure Hangar
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Project Information
Structure Type Portal frame, single ridge, three span
Length 130m
Width 80m
Eave Height 10m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof 75 mm Glass wool sandwich panel
Wall 75 mm Glass wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm
Technical Specifications
Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for Prefabricated steel structure building
  • Deepen or design the fabrication drawing or shop drawing based on your architectural drawing
  • Engineering consulting service
Steel Structure Helicopter Hangar with Glass Wool Insulation 0 Steel Structure Helicopter Hangar with Glass Wool Insulation 1
Packing and Transport
All components are packed for ocean transportation in 40'HQ containers. Our skilled workers handle loading with cranes and forklifts to prevent damage.
Steel Structure Helicopter Hangar with Glass Wool Insulation 2
Quotation Information
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
