Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Prefabricated Steel Structure Warehouse with 50-Year Lifespan
Prefabricated Steel Structure Warehouse with 50-Year Lifespan
Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan Prefabricated Steel Structure Warehouse with 50-Year Lifespan

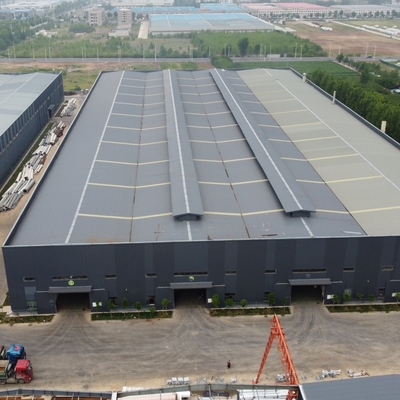

Large Image :  Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV
Model Number: Ruly0102
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Warehouse with 50-Year Lifespan

Description
Application: Prefabricated Structural Steel Warehouse Type: Steel Structure Warehouse
Working Scope: Design,Fabrication, Installation Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Glass Wool
Highlight:

steel structure building

,

metal warehouse construction

,

SGS Prefabricated Structural Steel Warehouse

Prefabricated Structural Steel Warehouse Modern Quick Build New Designed
Product Specifications
Attribute Value
Application Prefabricated Structural Steel Warehouse
Type Steel Structure Warehouse
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool
Project Description

Our prefabricated structural steel warehouse system combines modern design with efficient manufacturing processes. Computer-aided design and specialized structural analysis software significantly shorten the design cycle while allowing easy modifications. The prefabricated nature of steel structures enables factory production with high precision and efficiency, dramatically reducing construction timelines.

Main Components and Technical Parameters
Main Steel Frame System
Component Specification
Main structure H section steel Q355, alkyd painting (two primary coats, two finish coats)
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processed
Anchor bolt M24, steel Q235, processed
Ordinary bolt Galvanized bolt M20 and M12
Brace nut Galvanized bolt M12
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, processed and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, processed and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, processed and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, processed and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, processed and painted (alkyd painting)
Wall & Roof System
Component Specification
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door Sandwich panel door
Roof Drainage System
Component Specification
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Our Steel Structure Fabrication Facility
Prefabricated Steel Structure Warehouse with 50-Year Lifespan 0
Our Services
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation for prefabricated steel structures
  • Detailed fabrication drawings based on your architectural plans
  • Professional engineering consulting services
Prefabricated Steel Structure Warehouse with 50-Year Lifespan 1
Packing & Loading

All structural components, panels, bolts, and accessories are packed for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading at our factory.

Prefabricated Steel Structure Warehouse with 50-Year Lifespan 2
Why Choose Us?
  • Professional design team for customized solutions
  • Skilled fabrication team with advanced equipment
  • Complete one-stop service for your project
  • Strict quality control at every production stage
  • Comprehensive after-sales support and maintenance services
Request a Quote

Please provide the following information for an accurate quotation:

Question Your Information
Location (where will be built?) _____country, area
Size: length*width*height _____mm*_____mm*_____mm
Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
Snow load (max. snow height) _____kn/m2, _____mm
Anti-earthquake _____level
Brickwall needed or not If yes, 1.2m high or 1.5m high
Thermal insulation EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
Door quantity & size _____units, _____(width)mm*_____(height)mm
Window quantity & size _____units, _____(width)mm*_____(height)mm
Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
