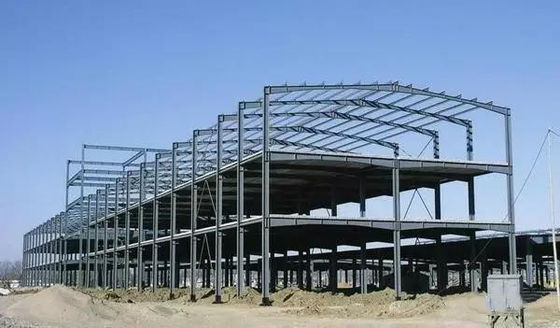

Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years

Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years
Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years
Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years

Large Image :  Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0083
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years

Description
Application: Multi-layer Steel Workshop, Warehouse, Office Building Raw Steel Material: Q235B, Q355B
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Surface Treatment: Painting
Type: Multi-storey Steel Frame Structure Working Scope: Design,Fabrication, Installation
Highlight:

metal warehouse construction

,

metal storage buildings

,

Q235B Multi Story Steel Structure Warehouse

Steel Frame Building Construction Multi-Story Steel Structure Warehouse
Product Specifications
Application Multi-layer steel workshop, warehouse, office building
Raw steel material Q235B, Q355B
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool
Surface treatment Painting
Type Multi-storey steel frame structure
Working scope Design, Fabrication, Installation
Product Overview

Our multi-story steel frame structure combines lightweight construction with high load-bearing capacity, offering excellent shock resistance and earthquake protection. The steel manufacturing process ensures consistent quality and reliable performance, with material properties that closely match engineering calculations for predictable structural behavior.

Project Details
Structure Type Portal frame, single ridge, two slopes, three-storey
Length 180 m
Width 60m
Eave Height 15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Steel cladding sheet, sandwich panel
Wall Steel cladding sheet, sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm
Technical Specifications
Item Details
Material Carbon structural steel (Q235B, Q345B or custom)
Production Lead Time Typically 45 days after down payment (varies by quantity)
Quality Certification Factory quality certificate, third-party available upon request
Dimensions H beam: 4000-15000mm length, 200-1200mm height
Thickness Web plate: 6-32mm, Wing plate: 6-40mm
Surface Options Two layers of rust-proof painting or Hot Dip Galvanized
Minimum Order Quantity 1000 m² (width × length × eave height)
Component Details
  • Main Frame: H Steel beams and columns (Q235/Q345 steel), painted or galvanized
  • Secondary Frame: Galvanized C or Z purlins, steel bracing, tie bars, knee braces
  • Roof & Wall: PU sandwich panel, Rockwool sandwich panel or corrugated steel sheet
  • Doors: Sliding or rolling options available
  • Windows: Aluminum alloy windows
  • Accessories: Skylight belts, ventilators, down pipes, gutters, flashing
Our Manufacturing Facility
Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years 0
Installation Process
Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years 1
Packaging & Shipping

All structural components, panels, bolts and accessories are securely packed for ocean transportation in 40'HQ containers. Our skilled workers carefully load all materials using cranes and forklifts to prevent damage during transit.

Multi-Story Steel Structure Warehouse Q235B Q355B 50 Years 2
Request a Quote

To provide an accurate quote, we need the following information:

1 Project Location Country and area where building will be constructed
2 Building Dimensions Length × Width × Height (mm)
3 Wind Load Requirements Maximum wind speed (kn/m², km/h, or m/s)
4 Snow Load Requirements Maximum snow height (kn/m² or mm)
5 Earthquake Resistance Required protection level
6 Brick Wall Requirements If needed, specify height (1.2m or 1.5m)
7 Thermal Insulation Specify material preference (EPS, fiberglass, rockwool, PU panels)
8 Door Specifications Quantity and dimensions (width × height in mm)
9 Window Specifications Quantity and dimensions (width × height in mm)
10 Crane Requirements If needed, specify quantity, max lifting weight (tons), and height (m)
