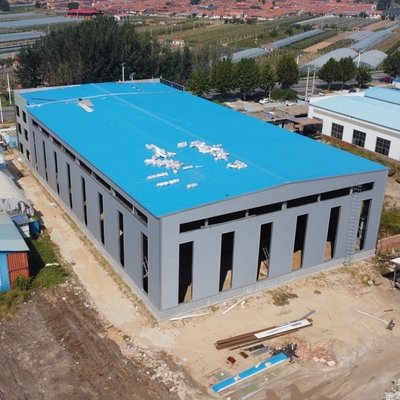

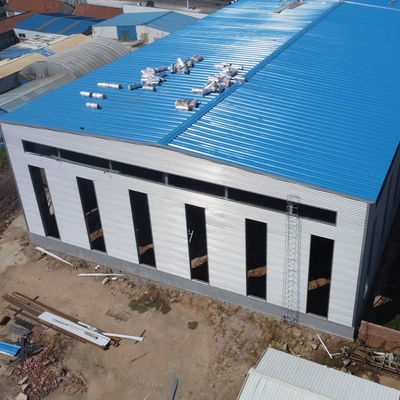

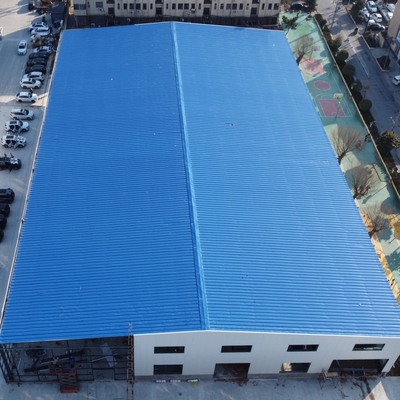

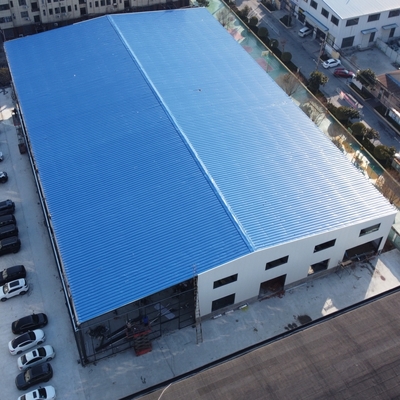

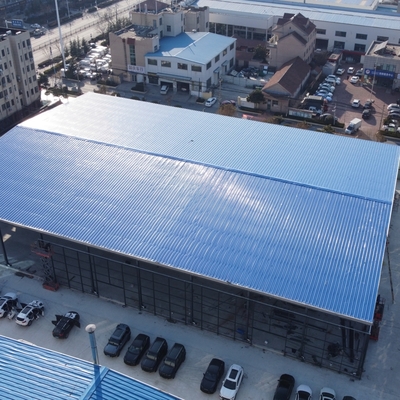

Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material

Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material
Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material
Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material

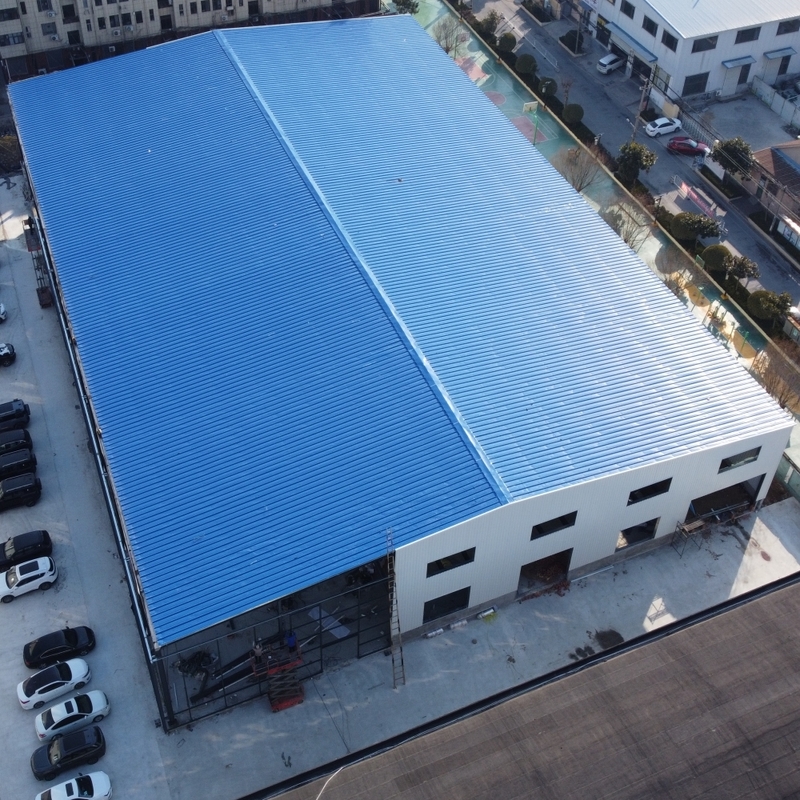

Large Image :  Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0071
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material

Description
Features: Prefab Factory Building Warehouse Application: Lightweight Steel Frame Building
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Service Life: 50 Years Wall And Roof: Glass Wool
Type: Truss Roof Steel Warehouse Working Scope: Design,Fabrication, Installation
Highlight:

metal warehouse construction

,

metal storage buildings

,

Q235B Prefab Factory Building Warehouse

Lightweight Steel Frame Building Prefab Factory Building Warehouse
Product Specifications
Application Lightweight Steel Frame Building
Features Prefab Factory Building Warehouse
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Glass wool
Type Truss roof steel warehouse
Working scope Design, Fabrication, Installation
Project Overview

We provide complete steel structure solutions including design, fabrication and construction. Our expertise includes prefabricated steel warehouses, workshops, sheds, garages, and office buildings. These structures offer superior rigidity, seismic performance, fast construction, light weight, and high load-bearing capacity.

Structural Details
Structure Type Portal frame, single ridge, two slopes, two spans
Length 112m
Width 60m
Eave Height 11m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof 75 mm thick Rock wool sandwich panel
Wall 75 mm thick Rock wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm
Technical Specifications
Material Carbon structural steel
Production Lead Time Normally 45 days after down payment (varies by quantity)
Quality Certification Factory quality certificate, third-party inspection available
Dimensions H beam: 4000-15000mm length, 200-1200mm height
Thickness Web plate: 6-32mm, Wing plate: 6-40mm
Color Options Customizable to customer requirements
Minimum Order Quantity 1000 m²
Main Components
  • Base: Cement and steel foundation bolts
  • Main Frame: H Steel beam, Q235/Q345 steel H beam and columns (painted or galvanized), box steel, galvanized C section or steel pipe
  • Secondary Frame: Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
  • Material Standards: Q235B, Q345B or ASTM, BSEN, DIN, IPE, AISI, JIS as requested
  • Purlin: C or Z purlin: Size from C120~C320, Z100~Z20
  • Column Types: X-type, tree type, lattice, Cross, Box
  • Fasteners: Plain bolt and High-strength bolt
  • Roof & Wall: PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
  • Surface Treatment: Two layers of rust-proof painting or Hot Dip Galvanized
Steel Column Fabrication
Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material 0
Packing and Transportation

All structural components, panels, bolts and accessories are packed securely for ocean transportation in 40'HQ containers. Loading is performed by skilled workers using cranes and forklifts to prevent damage.

Lightweight Steel Frame Prefab Warehouse Q235B Q355B Material 1
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m², _____mm
5 Anti-earthquake requirements _____level
6 Brickwall needed If yes, 1.2m high or 1.5m high
7 Thermal insulation EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane requirements If yes, _____units, max. lifting weight____tons; max. lifting height _____m
