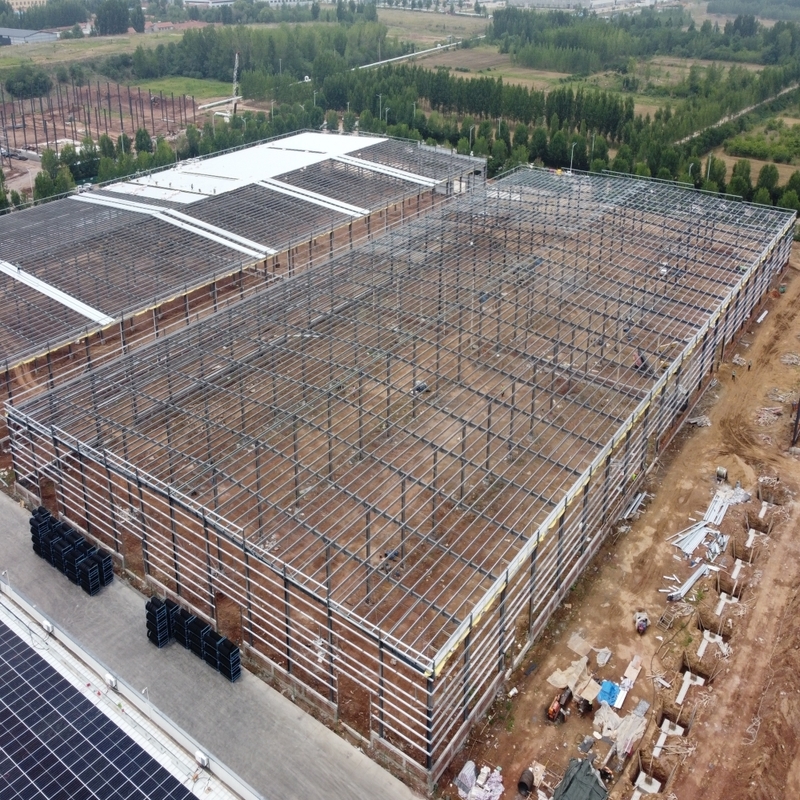

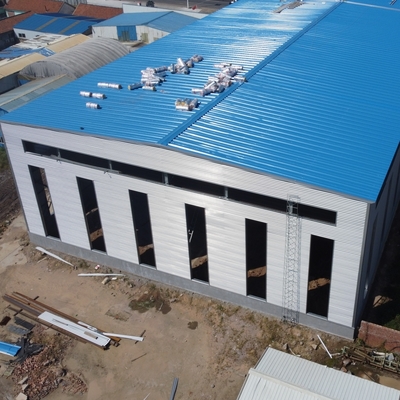

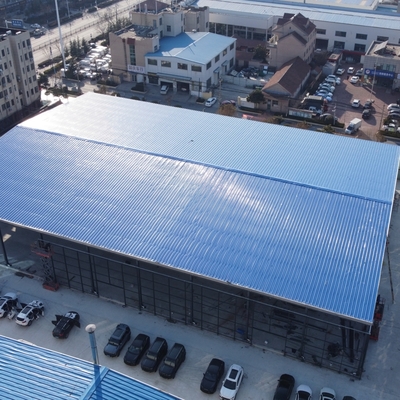

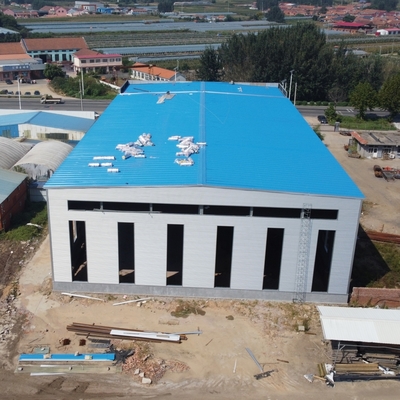

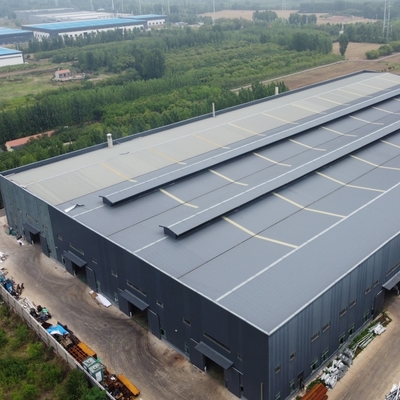

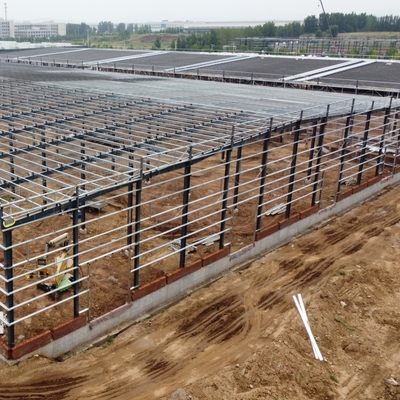

Truss Roof Steel Warehouse Building with 50-Year Lifespan

Truss Roof Steel Warehouse Building with 50-Year Lifespan
Truss Roof Steel Warehouse Building with 50-Year Lifespan
Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan Truss Roof Steel Warehouse Building with 50-Year Lifespan

Large Image :  Truss Roof Steel Warehouse Building with 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0069
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Truss Roof Steel Warehouse Building with 50-Year Lifespan

Description
Application: Truss Roof Structural Steel Warehouse Buildings Type: Truss Roof Steel Warehouse
Service: Steel Truss Fabrication Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

steel structure building

,

metal storage buildings

,

Truss Roof Structural Steel Warehouse

Truss Roof Structural Steel Warehouse Buildings Steel Truss Fabrication
Product Specifications
Attribute Value
Application Truss Roof Structural Steel Warehouse Buildings
Type Truss roof steel warehouse
Service Steel Truss Fabrication
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Description

This steel frame truss roof warehouse building offers superior structural stability and material efficiency compared to traditional H-section steel beam roofs. The truss design enables larger spans while reducing steel quantity requirements.

Truss structures are widely used in large-scale steel frame buildings due to their ability to accommodate large spans and shapes. Common applications include warehouses, stadiums, transportation terminals, and other major public buildings.

Project Specifications
Parameter Value
Structure Type Truss roof, multi spans
Length 120m
Width 100m
Eave Height 11m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof 75 mm thick Rock wool sandwich panel
Wall 75 mm thick Rock wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm
Structural Components & Technical Parameters
Main Steel Frame System
Component Specification
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Wall & Roof System
Component Specification
Roof panel 75 mm thick Rock wool sandwich panel
Wall panel 75 mm thick Rock wool sandwich panel
Edge cover 0.5mm color plate, angle Alu
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Our Steel Structure Production Facility
Truss Roof Steel Warehouse Building with 50-Year Lifespan 0
Quality Inspection Process
Truss Roof Steel Warehouse Building with 50-Year Lifespan 1
Packing and Transportation

All structural components, panels, bolts, and accessories are securely packed for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free transport.

Truss Roof Steel Warehouse Building with 50-Year Lifespan 2
Request a Quote

Please provide the following information for an accurate quotation:

1. Location (country/region) where the building will be constructed
2. Dimensions: length × width × height (mm)
3. Maximum wind load (kn/m², km/h, or m/s)
4. Maximum snow load (kn/m² or mm)
5. Required earthquake resistance level
6. Brick wall requirements (height if needed)
7. Thermal insulation specifications (material preference)
8. Door quantity and dimensions (width × height in mm)
9. Window quantity and dimensions (width × height in mm)
10. Crane requirements (quantity, max lifting weight in tons, max height in meters)
