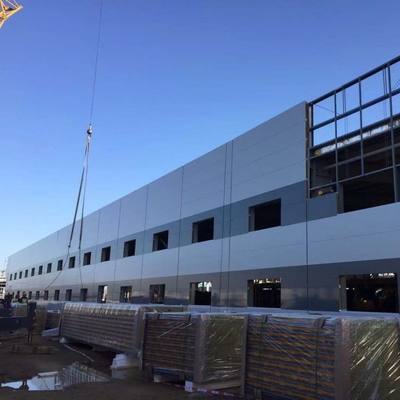

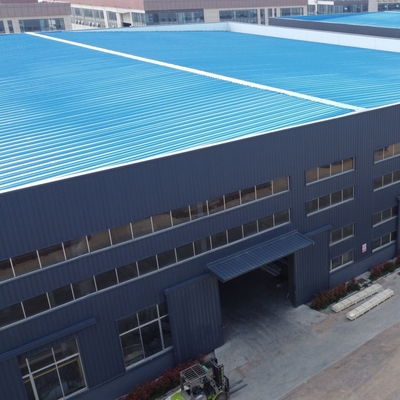

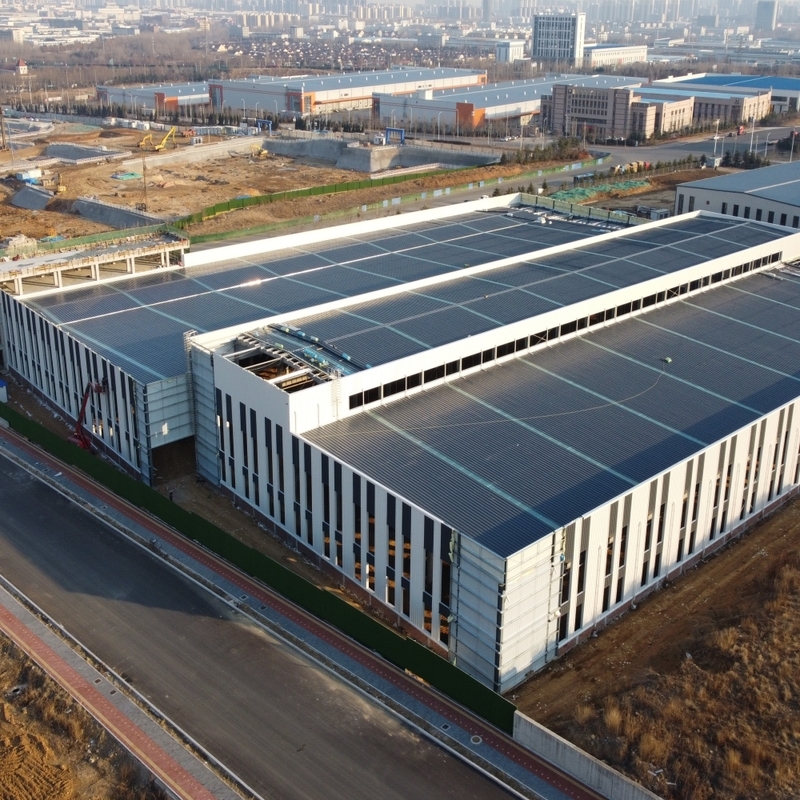

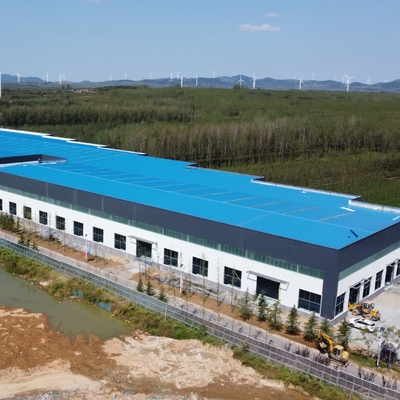

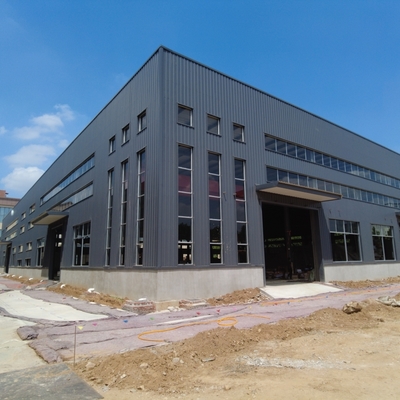

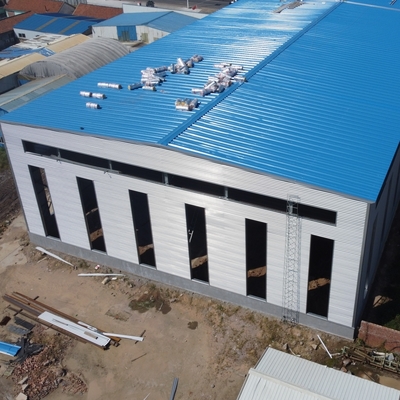

Large Span Steel Warehouse with Glass Wool Sandwich Panels

Large Span Steel Warehouse with Glass Wool Sandwich Panels
Large Span Steel Warehouse with Glass Wool Sandwich Panels
Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels Large Span Steel Warehouse with Glass Wool Sandwich Panels

Large Image :  Large Span Steel Warehouse with Glass Wool Sandwich Panels

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0061
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month
Contact Now

Large Span Steel Warehouse with Glass Wool Sandwich Panels

Description
Raw Steel Material: Q235B, Q355B, ASTM A36, Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Columns And Beam: H Section Column&Beam, Latticed Column
Service: Design,Fabrication, Installation Application: Steel Structure Warehouse, Workshop, Factory Building
Highlight:

steel structure building

,

metal storage buildings

,

Glass Wool Metal Storage Buildings

Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped
Product Specifications
Attribute Value
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Columns and Beam H Section Column & Beam, Latticed column
Service Design, Fabrication, Installation
Application Steel structure warehouse, workshop, factory building
Project Overview
This large span metal storage building is designed for wine production and storage facilities. The steel frame structure provides more indoor space compared to concrete buildings and offers better compatibility with production equipment.
Project Specifications
Parameter Value
Structure Type Portal frame, single ridge, double span
Length 100m
Width 45m
Eave Height 9m
Span Double span
Steel structure quantity 300 Ton
Column & Beam H-section steel, latticed column, honeycomb beam, truss beam
Roof & Wall sandwich panel 75mm Glass wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Technical Components
Steel Frame: H section steel (Q235/Q345 steel 8mm/10mm)
Welding: Automatic submerged arc welding
Rust removal: Sand blasting
Surface finish: Alkyd paint or galvanized
Intensive bolt: M20, Grade 10.9
Structural Advantages
  • High strength and light weight: Steel offers exceptional strength-to-weight ratio, enabling large span structures.
  • Excellent plasticity and toughness: Withstands accidental overloads and dynamic loads effectively.
  • Industrialized production: Precision manufacturing in specialized facilities ensures quality.
  • Rapid construction: Prefabricated components enable fast on-site assembly.
  • Superior wind resistance: Lightweight yet rigid structure offers excellent stability.
  • Cost efficiency: Reduced foundation requirements and faster completion lower overall costs.
  • Environmentally friendly: Steel is fully recyclable with minimal construction waste.
Design Visualization
Large Span Steel Warehouse with Glass Wool Sandwich Panels 0
Manufacturing Facility
Large Span Steel Warehouse with Glass Wool Sandwich Panels 1
Quotation Requirements
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
