Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped

Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped
Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped

Large Image :  Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0061
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Ton Per Month

Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped

Description
Raw Steel Material: Q235B, Q355B, ASTM A36, Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Columns And Beam: H Section Column&Beam, Latticed Column
Service: Design,Fabrication, Installation Application: Steel Structure Warehouse, Workshop, Factory Building
High Light:

steel structure building

,

metal storage buildings

,

Glass Wool Metal Storage Buildings



Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped



Brief introduction for Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped:

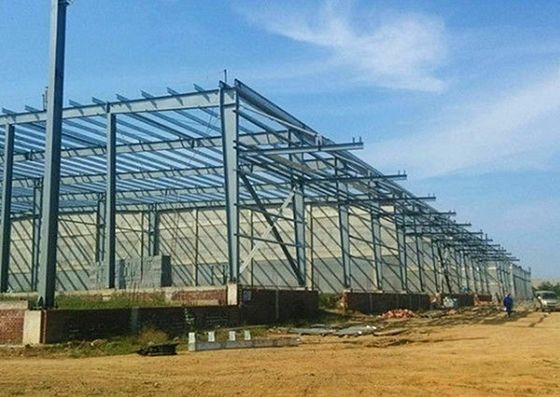

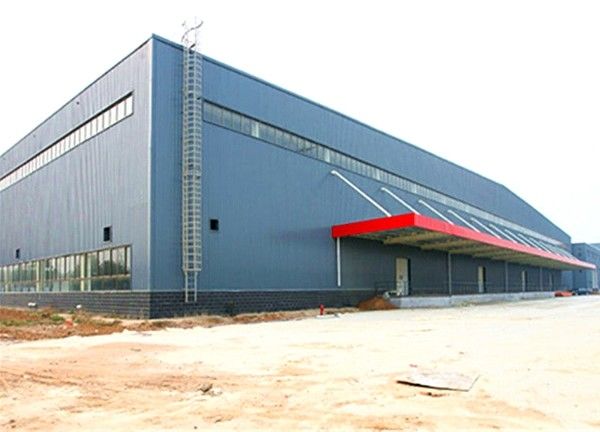

This is a Large Span Metal Storage Buildings that is used as the red wine producing and storage factory. Steel frame structure building could provide more indoor space compared with concrete building, it could also match up better with the production equipment.

Project information of Structural steel frame warehouse buildings:



Name

Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped​

Structure Type Portal frame, single ridge, double span
Length 100m
Width 45m
Eave Height 9m
span  double span
Steel structure quantity 300 Ton
Column&Beam  H-section steel, latticed column, honeycomb beam, truss beam
Roof & Wall sandwich panel

75mm Glass wool sandwich panel

Door Sliding door
Window Ribbon Skylight



Main parts of the steel structures and technical parameters:



Steel Frame H section steel Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel  75mm Glass wool sandwich panel
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall 75mm Glass wool sandwich panel
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window



 Advantage of steel frame structure buidings:



1 High strength and light weight Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span.
2 Good plasticity and good toughness The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads.
3 High degree of industrialization in production The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high.
4 Simple construction and short construction period All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.
5 Wind resistance and structural stability Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability
6 Saving construction costs The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure.
7 Recyclable Steel can be recycled, less environmentally polluted when constructed and removed



Steel Designing & Detailing:



Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped 0





Our steel structure fabrication factory:


Large Span Metal Storage Buildings Glass Wool Sandwich Panel Equipped 1



How to quote:


The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
